Description

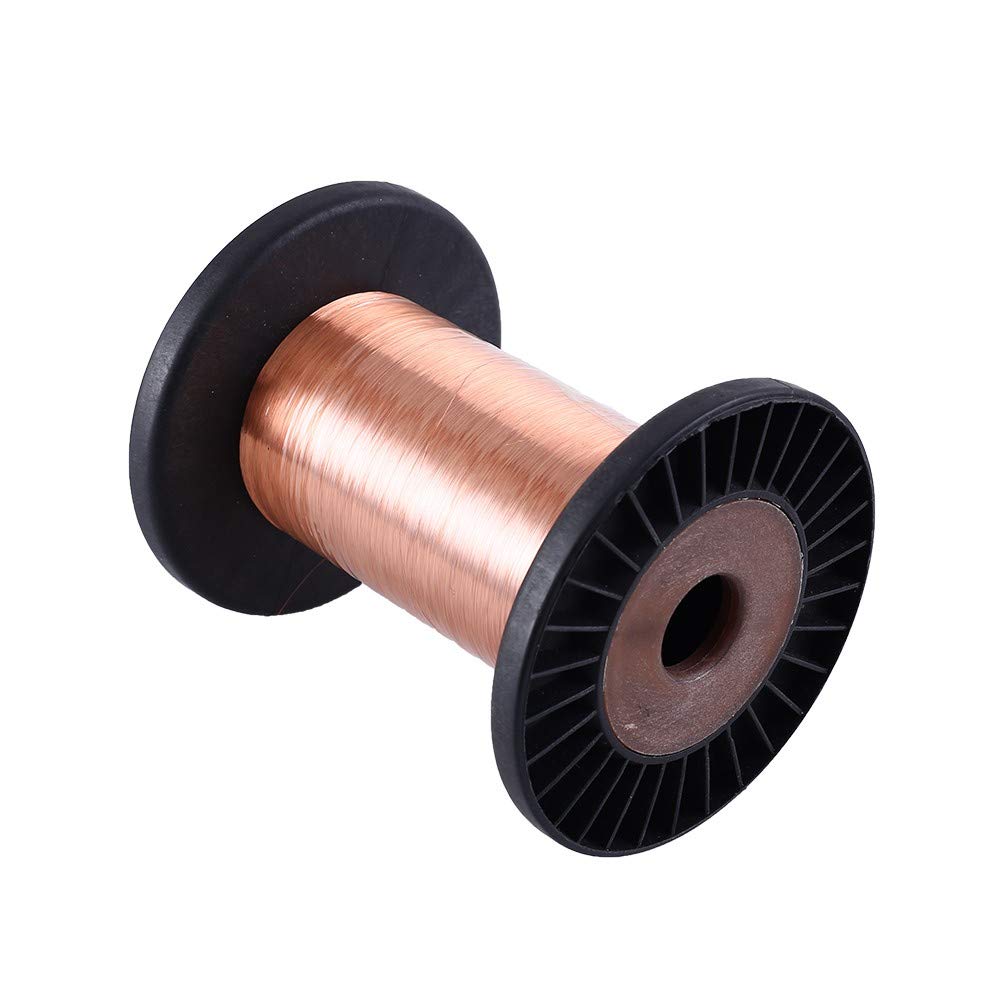

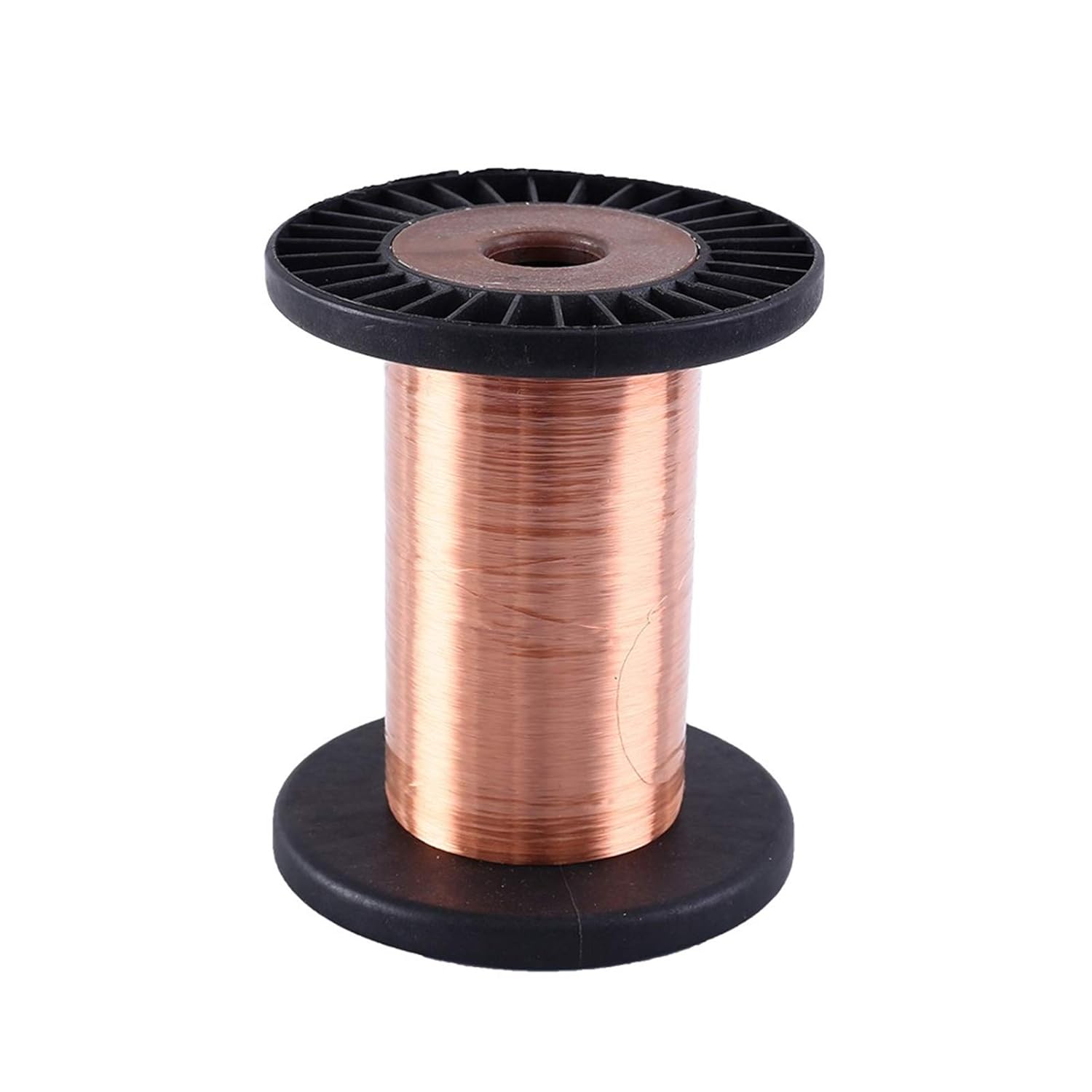

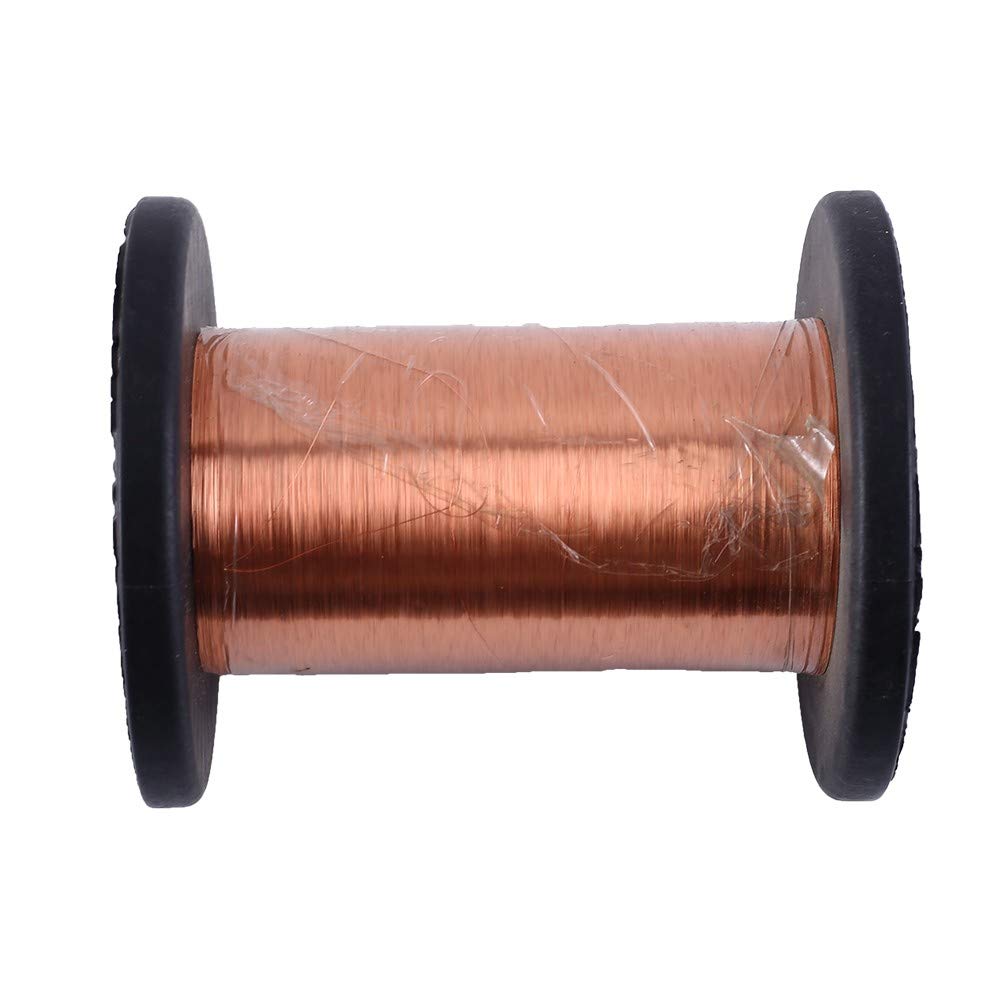

Features:1. Temperature resistance level: 155 ℃.2. Good straight solderability: The insulating layer is polyurethane resin, which has good solderability between 360 ℃ to 400 ℃.3. Good solvent resistance & abrasion resistance.4. Stretching and bending without pinholes, suitable for high-speed winding.5. No peeling film is required during the winding process, which effectively improves work efficiency.6. Withstand voltage: 550V.7. Widely used in the construction of transformers, coils, motors, solenoids, instruments, inductors, speakers, electromagnets and other applications that require tight coils of insulated wire.8. Easy to use, welding directly without scratching the insulation layer.9. Security: Magnet wire is a copper wire coated with a thin layer of insulating enamel. Copper pipes, insulation is made from polyester modified by a Polyamideimide coating, and protects the wound wire from short circuitifications:Model: QA-1/155High Voltage Resistance: 2000 V (Max)Copper Wire Diameter: 0.07 mmCopper Wire Weight: 100 gCopper Wire Length: Approximately 2700 mWorking Temperature: -25? ~85?Working Humidity: 5% ~ 95% relative humiditySize: 100 x 100 x 120 mmPackaging List:1 x Roll of Copper WireSHOP WITH CONFIDENCE: To provide you with the highest quality service, If you have any question, please feel free to contact us will provide after-sales service until you are satisfied.
