Description

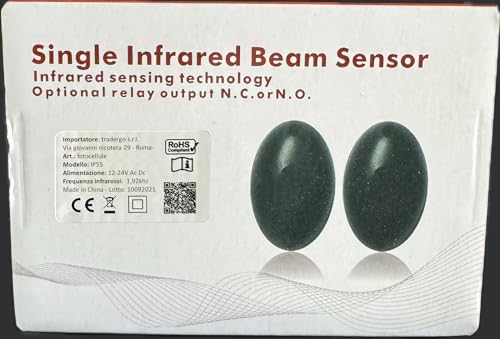

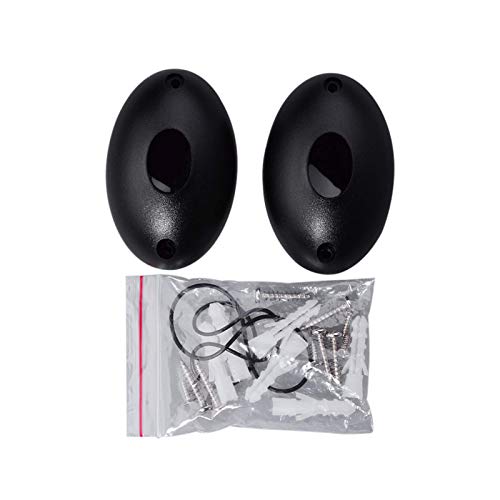

1 pair of outdoor self-centering photocells consisting of transmitter and receiver range of directive 15 metres. This model has 2 channels, so two similar remote controls can be stored on each channel or other brand to make two different uses. Infrared radiation interruption, causes the two relays to fall off. C.NC.NA relay output 1A to 24V. They are necessary to interrupt automation movement, control and counting of people in one go. Installation best on the wall features: power supply 12-24 V DC/AC absorption RX 15 mA TX 30 mA range 15 meters frequency IR 1.92 khz operating temperature -20 °C + 70 °C plastic housing IP 55 weight 0.150 kg relay outputs N.C. / NO. Dimensions: 49.2 x 76 x 21.6 mm. Single size: 57 x 92 x 35 mm. Waterproof for large water jets. Easy and intuitive operation. Box contents: 1 pair of photocells (transmitter and receiver), 6 stops with screws for attaching to the wall, 2 seals, instructions in Italian and English.
