Description

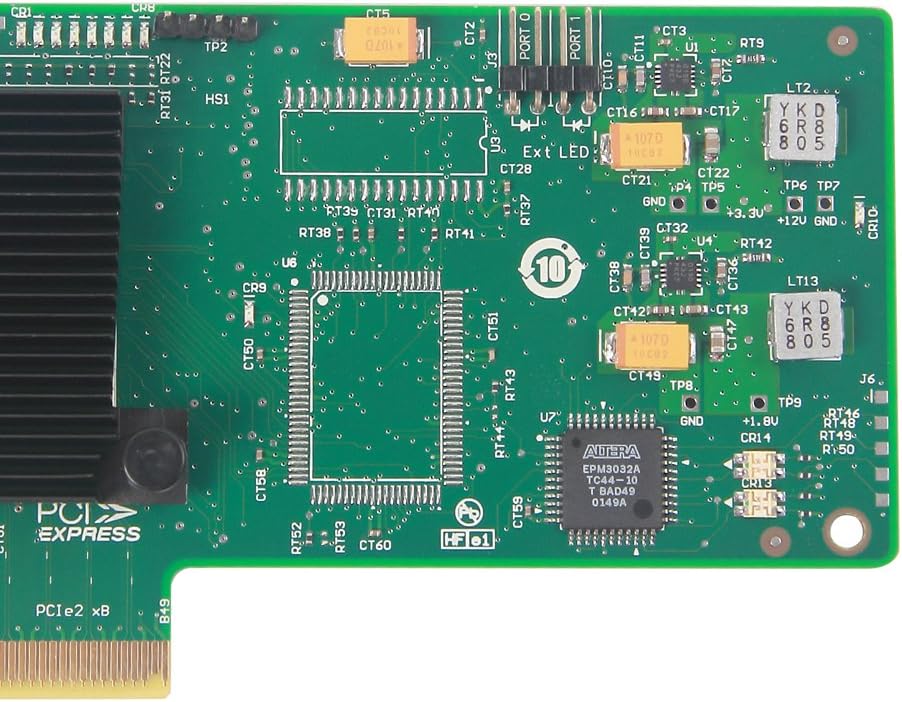

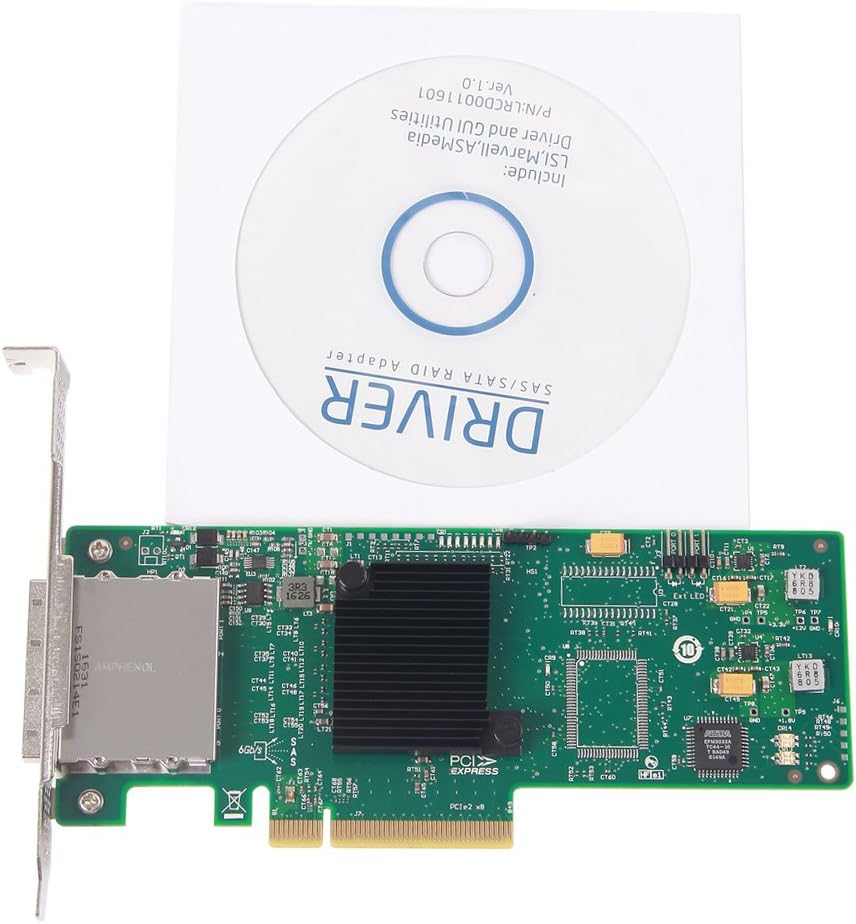

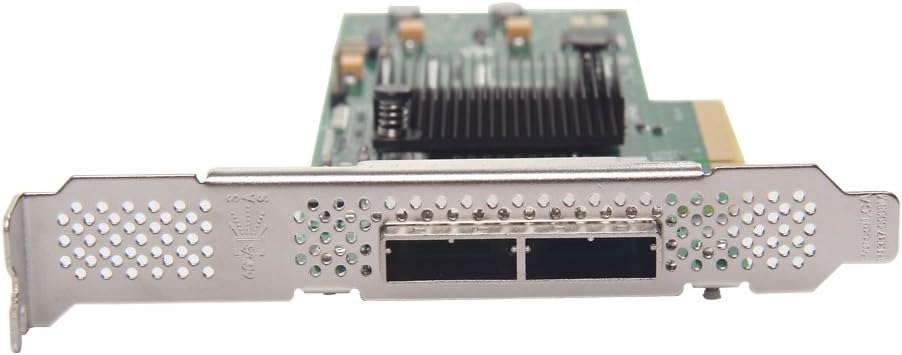

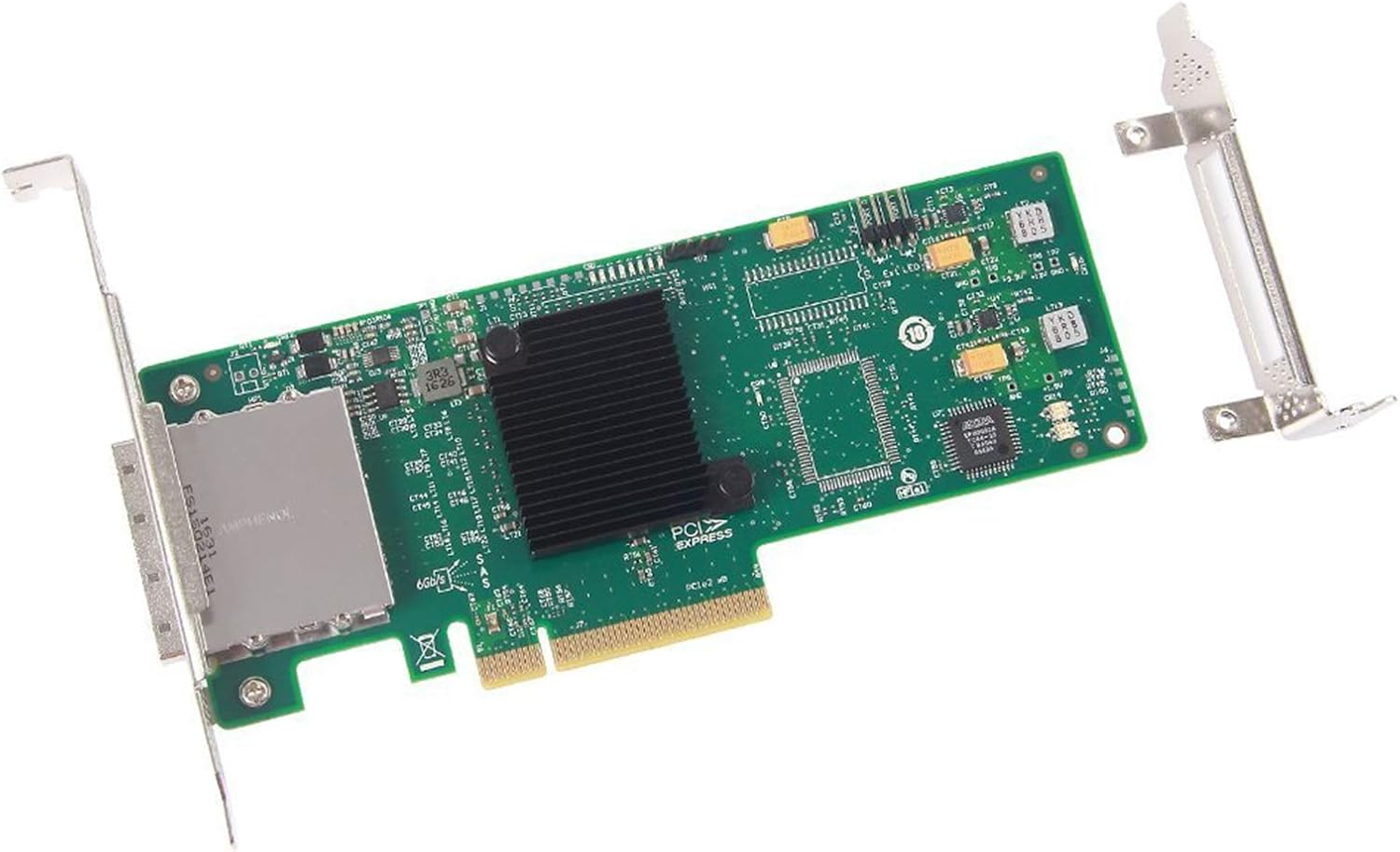

Primary Information: Product Type: SAS Controller I/O Controller: LSI SAS 2008 6Gb/s SAS+SATA Controller Form Factor: Plug-in Card Host Interface: PCIe 2.0 x8, compatible PCIe 2.0 x16, PCI-Express 3.0 x8, PCI-Express 3.0 x16 Connectors: 2 Mini-SAS SFF8088 Brackets: Full height and low profile Data Transfer Rates: support up to 6Gb/s SAS 2.0/SATA III Supported Device: SAS/SATA/HDD/SSD Support up to 512 SAS or SATA devices Support system disk installation (a driver disk is included in the package or you can download the driver on LSI or Broadcom website.)PCIe up to 4000 Mb/s at full duplexSupport JBODSupport 6.0Gbps, 3.0 Gbps, 1.5 Gbps data transfer rateSupport OS: Microsoft Windows XP 32/64bit Microsoft Windows Vista Microsoft Windows7 Microsoft Windows 8 Microsoft Windows Windows 8.1 Microsoft Windows Server 2003 Microsoft Windows Server 2008 Microsoft Windows Server 2008 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 CentOS 6/6.3 Citrix 5/6 Debian 6.0.5 Fedora 17/18 OEL 5/6 OVM 3 RHEL4/5/6 SLES9/10/11 Ubuntu 10.04/11.10/12.04 FreeBSD 7.2.0, 7.4.0, 8.2.0, 8.3.0, 8.4.0, 9.0.0, 9.1.0, 9.1.0, 9.2.0, 9.3.0, 10.0.0 VMware ESX/ESXi 4.x Solaris 10VMware ESX/ESXi 5.x VMware
