Description
Features:
Adopted of high quality carbide tips, exquisite workmanship, has high strength, high toughness, stable and durable in use.
Suitable for processing of ordinary steel and ordinary stainless steel.
This set includes 10 pcs carbide inserts, so it provides convenience to replace the broken one.
Specifications:
Model: CCMT09t304 CCMT32.5
Material: carbide
Size: 6 x10 x 4mm/0.47 x 0.39 x 0.16inch
Weight: 40g
Color: gold
Quantity: 10 PCS
Blade description:
C = blade shape, C is 80 degrees diamond
C = clearance angle is 7 degrees( with clearance angle is single blade)
M = blade tolerance(You can ignore it)
T = symbol of the hole slot(You can ignore it)
09 = cutting edge is 9mm
T3= the blade thickness is 3.97 mm
04 = R degrees of sharp Angle (02 = R0.2, 04 = R0.4, 08 = R0.8)

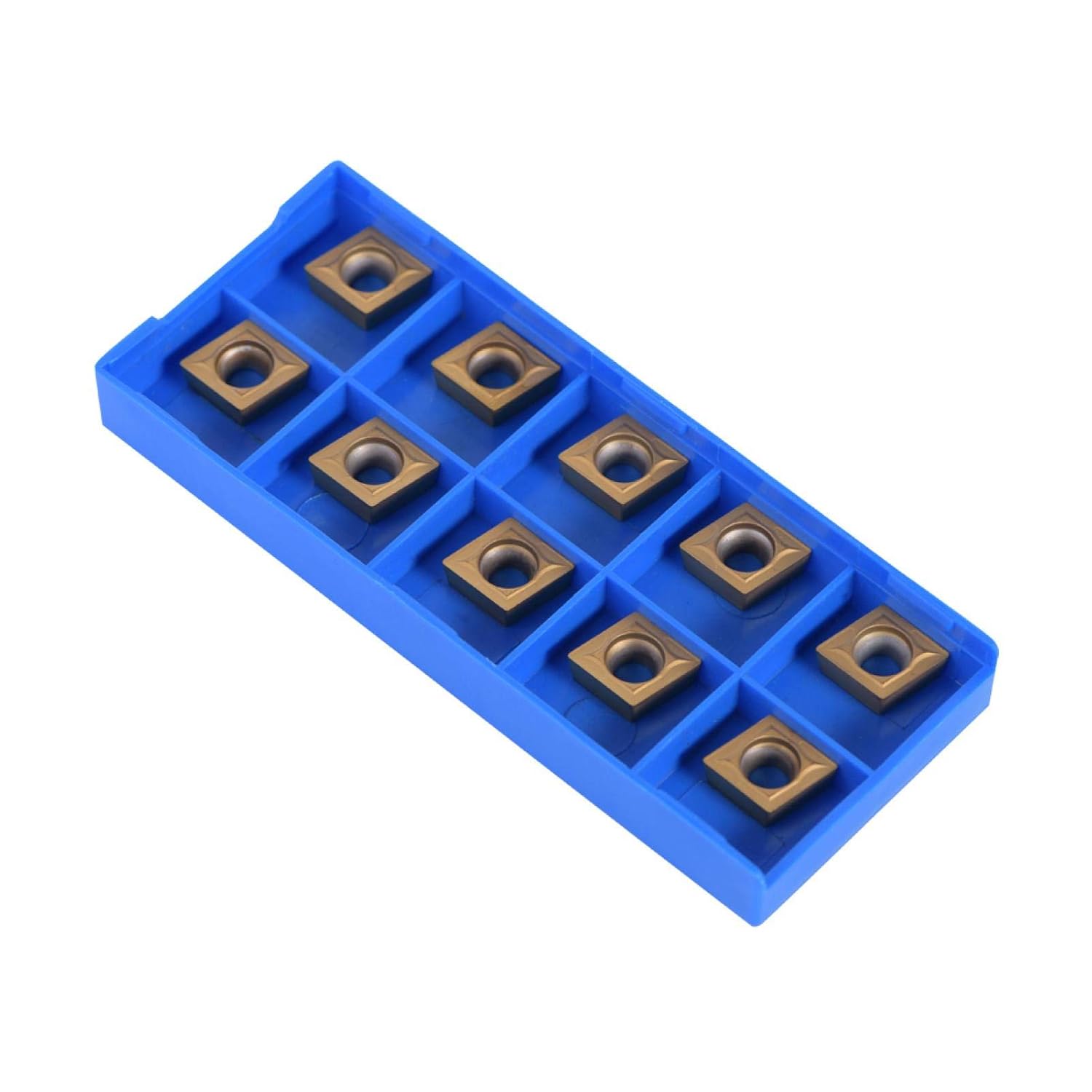

Packaging: plastic box(yellow, red, blue random)
Package Included:

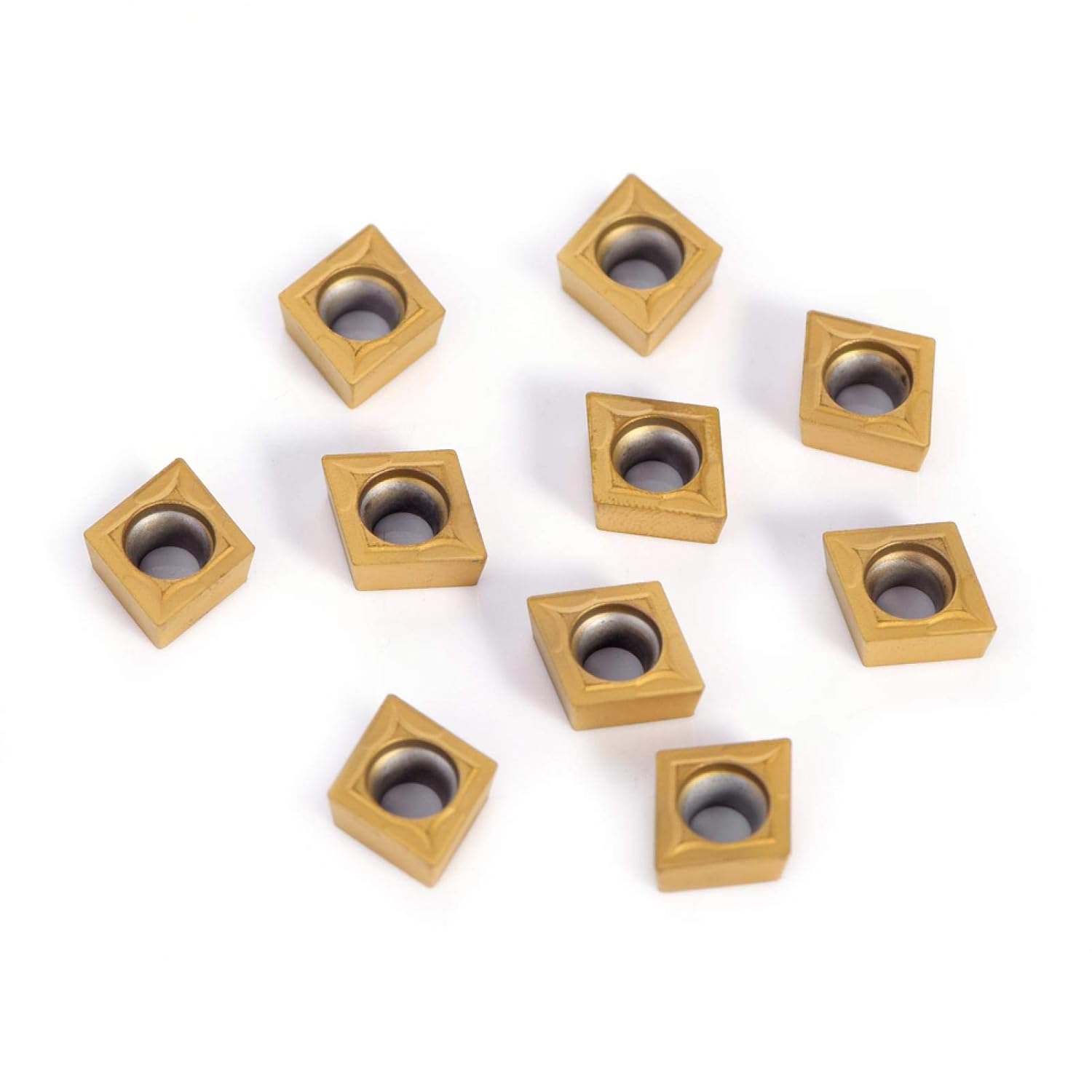

10 x CNC Carbide Tips Inserts
