Description

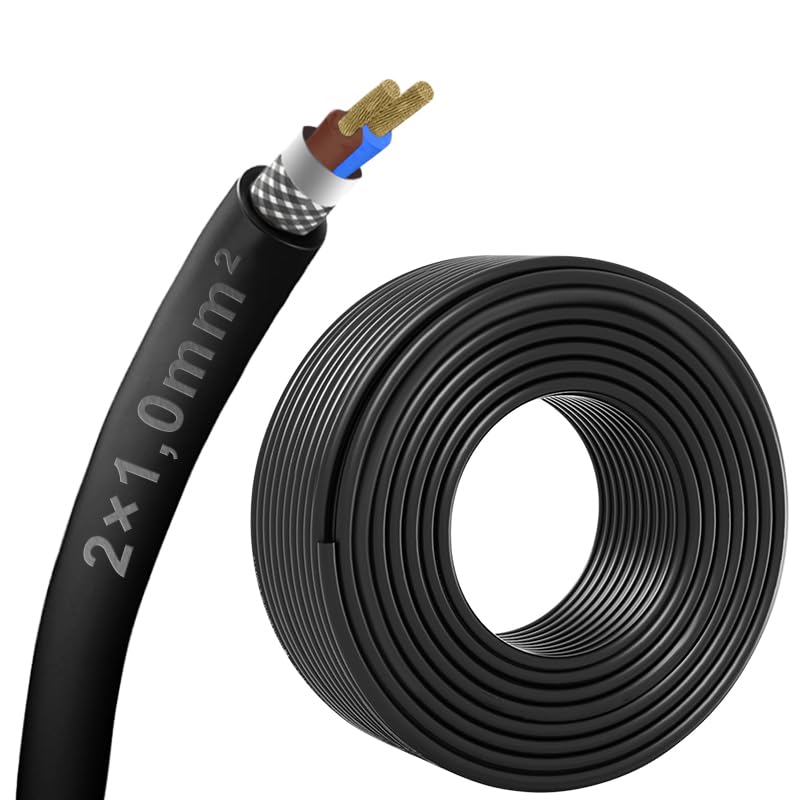

30 Meter 2 Core 2×1.0mm² Shielded Cable, CE Certified EMI/RFI Shielding Cable for Automobile, Speaker, 3D Printer, CNC VFD Spindle, Stepper Motor, Signal Transmission etc
30 Meters 2 Core 2×1.0mm Shielded Cable, CE Certified EMI/RFI Shielding Cable for Automotive, Speaker, 3D Printer, CNC VFD Spindle, Stepper Motor, Signal Transmission etc
$191.99
- Specifications: 5 meters 2-core 2 x 1.0mm shielded cable. Rated voltage: 300 V. Rated temperature: 80 C/176 F. Conductor resistance: 16.3/km at 20C, Insulation resistance: >10M/km20C, Current: 6A. Flame test: FT1, Tensile strength: 1034N/cm, Material: PVC, copper and aluminium.

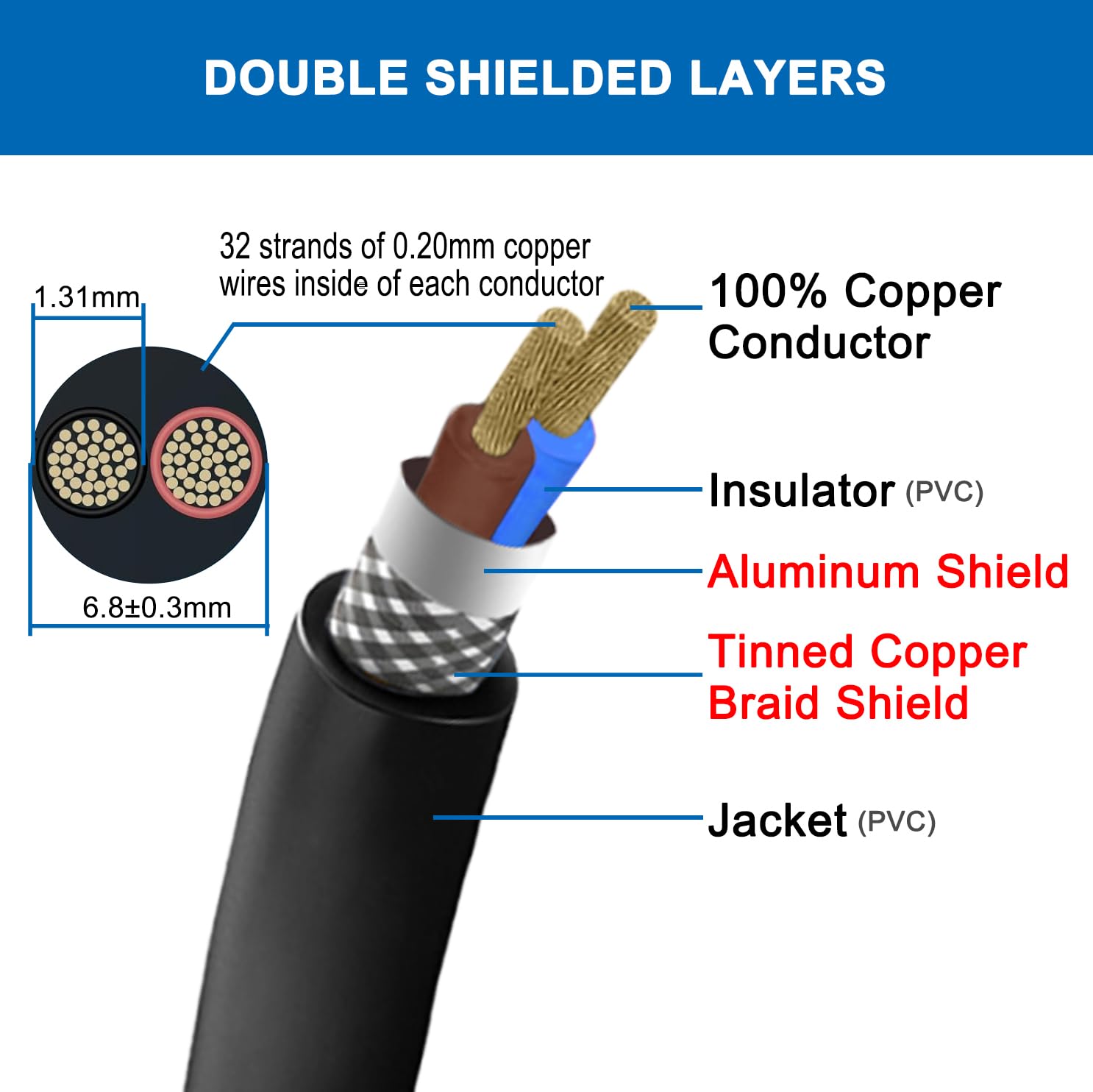

- SUPERIOR CONDUCTIVITYConductors are made of 100% pure oxygen-free copper for minimal resistance and maximum signal transmission and outperforms tinned copper or copper clad aluminum. Shielded layers also serve as grounding protection. Each conductor consists of 32 strands of 0.20mm pure copper wires.
- Double Shielding LayerAluminum foil + braided copper blocks 99% EMI/RFI interference, ideal for sensitive electronics, industrial equipment and automotive systems.
- True 1.0mm & Exact Cable Length: Our conductor outer diameter is 1.31mm and complies with CE standard. The insulation outer diameter is 2.2 mm 0.05 mm, the outer sheath outer diameter is 6.8 mm 0.3 mm. We guarantee that our cable length is exactly the same as described by us.
- Easy to Solder & StripeThis wire ensures effortless soldering and smooth stripping and is designed for fast and reliable connections in demanding electrical applications.
- Easy Installation: The flexibility of the wire can withstand repeated bending and twisting and adapts to complex spatial arrangements.
- Wide Compatibility: Perfect for cars, 3D printers, speakers, sound, CNC spindle, stepper motor, signal transmission, etc.
Out of stock
