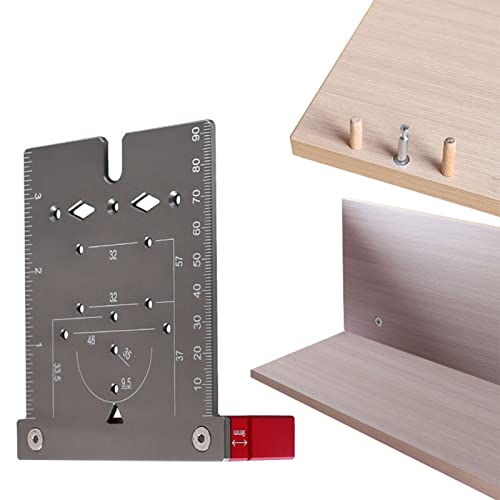

35mm Hinge Punch Locator Hinge Boring Jig Adjustable Margin Marker Positioning Plate Hinge Drilling Jig Guide Hinge Opening Aid (Large Size)
35mm Hinge Punch Locator Hinge Boring Jig Adjustable Margin Marker Positioning Plate Hinge Drilling Jig Guide Hinge Opening Aid (Large Size) - Image 2
35mm Hinge Punch Locator Hinge Boring Jig Adjustable Margin Marker Positioning Plate Hinge Drilling Jig Guide Hinge Opening Aid (Large Size) - Image 3
35mm Hinge Punch Locator Hinge Boring Jig Adjustable Margin Marker Positioning Plate Hinge Drilling Jig Guide Hinge Opening Aid (Large Size) - Image 4

35mm Hinge Punch Locator Hinge Boring Jig Adjustable Margin Marker Positioning Plate Hinge Drilling Jig Guide Hinge Opening Aid (Large Size)

$0.00

  • Main Function: This Hole Drill Locator is an essential tool for installing common 35mm straight arm and mid-bend hinges, significantly enhancing your installation efficiency.
  • Reliable Material: The primary body of this locator is crafted from robust aluminum alloy and features a sandblasted . Its drill bushing is made from durable stainless steel, ensuring a longer drilling life and resistant to wear and tear.
  • Innovative Eccentric Wheel Design: Designed to cater to a standard 40mm connecting rod, this hinge hole locater includes an eccentric wheel hole position design shifted upwards by 1.5mm. This repositioning allows closer splicing, ensuring optimal .
  • Easy to Use: To use, align the locator with the marked line on the cabinet door, place the red baffle on the edge, and use the marking tool to indicate the hole center and the two screw holes. The of the method allows for easily repeatable results.
  • Wide Usage: This Hole Drill Guide is a multipurpose tool suitable for hinge installations on a range of furniture, including cabinets, doors, , and folding tables, making it very practical for a multitude of carpentry and woodworking needs.

Out of stock

  • International Express shipping available
  • 30 day easy returns
Guaranteed Safe Checkout

Description

Specification

Item Type: Hinge Hole Drilling Locator

Material: Aluminum Alloy

Positioning Function:

35mm Straight Arm or Middle Bending Hinge Hole Positioning

32mm Connector Hole Positioning

Hinge Cup Edge Distance: 3 4 5 6mm Four Gear Adjustable

Drill Bushing Size: Approx. 8mm/0.3in

Hole Spacing: Approx. 28mm/1.1in

Scale Parameters:

English Range: 3-11/16in, Minimum Scale: 1/16in

Range: 94mm, Minimum Scale: 1mm

Package List

1 x Hinge Hole Drilling Locator

Additional information

Weight 0.242 kg
