Description

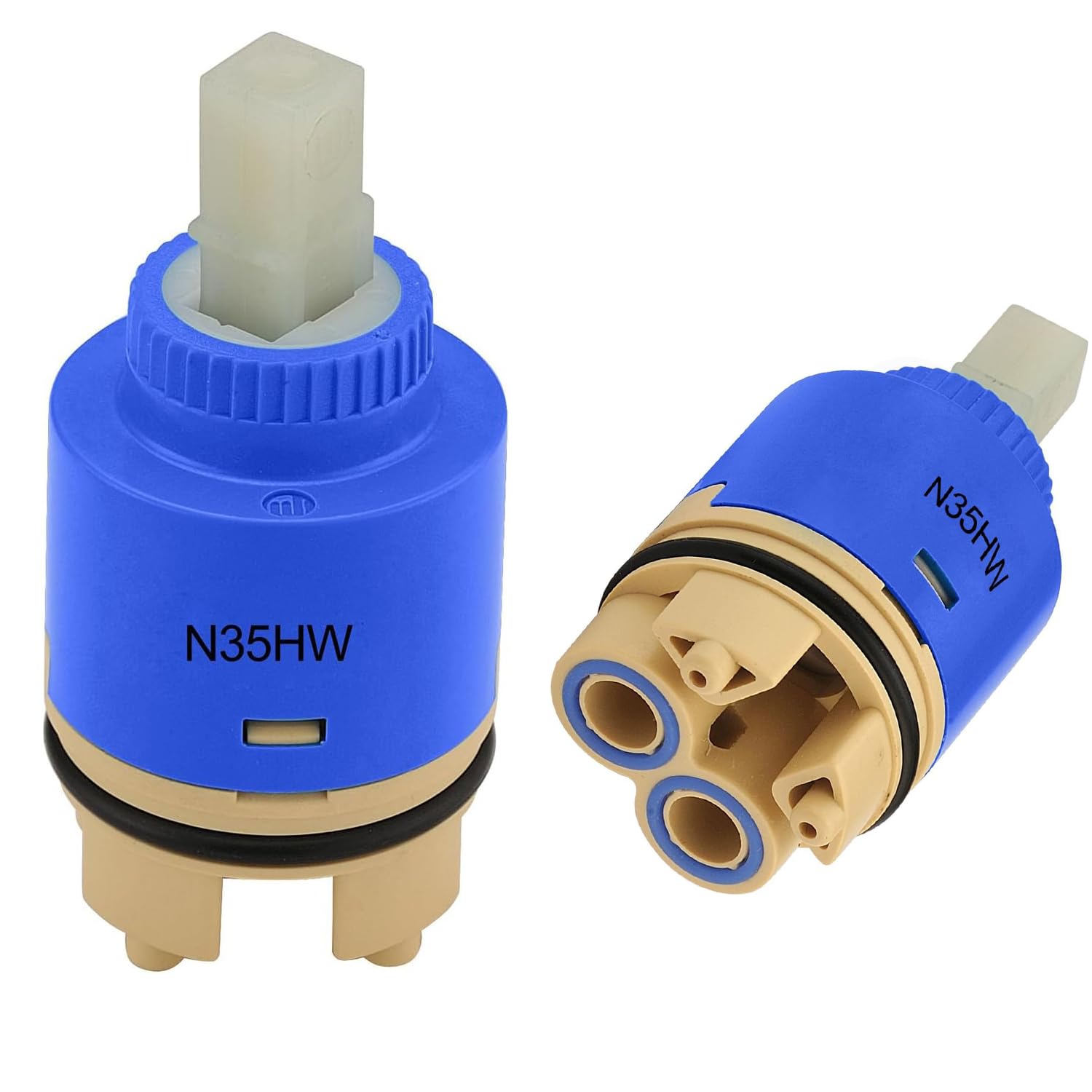

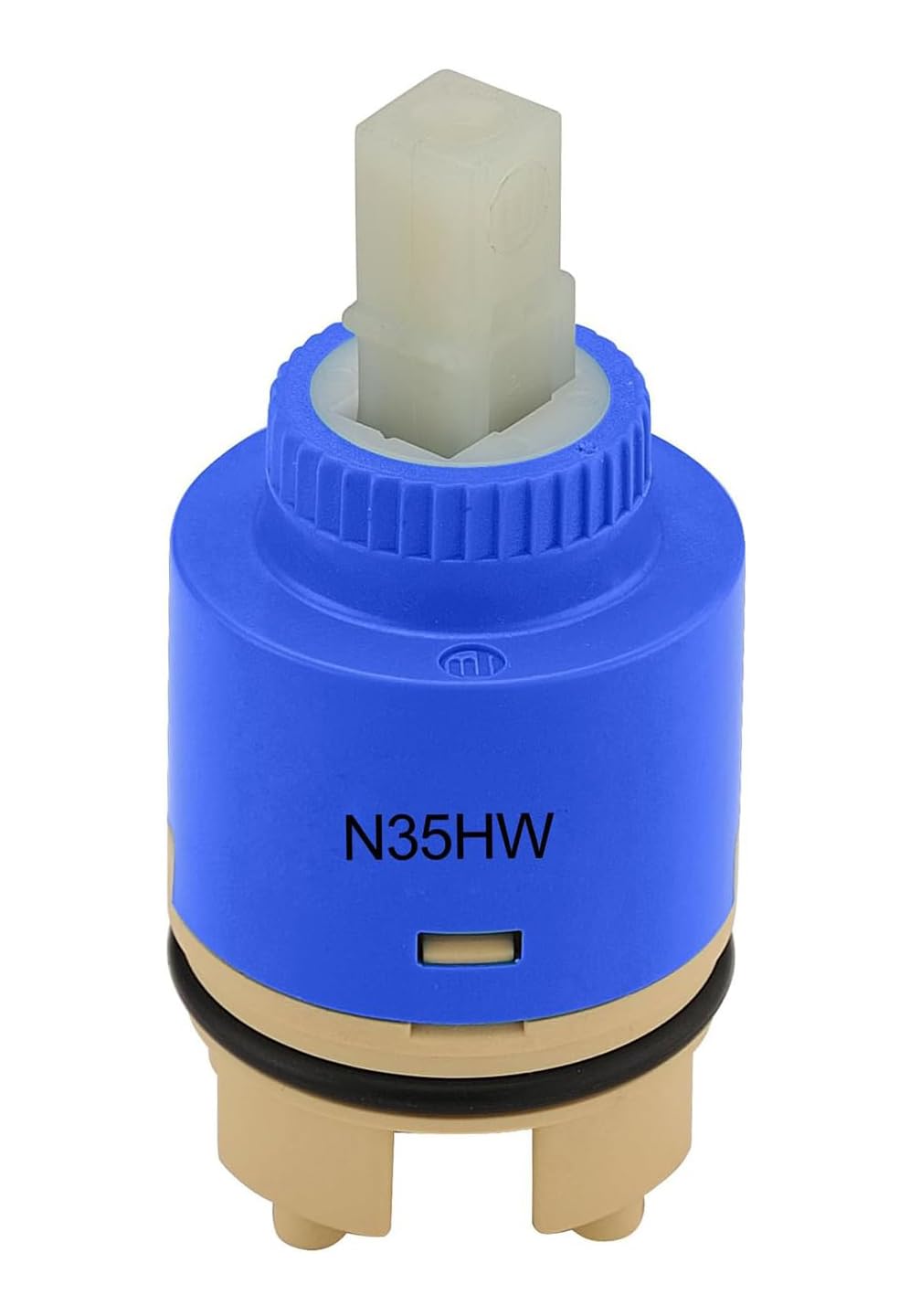

Product certification mixer tap cartridge dimensions: ø 35 mm.
Type: Ceramic Cartridge for mixer
Material: Plastic and ceramics
Colour: Blue
Weight: 58.8 g.
Outer diameter: 35mm.
Total height: 70mm
Maximum temperature: 90°C
Water distribution function: with distribution function
Technical data:
Voltage withstand test:
Air pressure test: 0.7Mpa
Water test: ≥3.5 Mpa
Flow rate (3 bar ): 13L/min
Durability:
EN 817 standards: 70 00000 cycles.
ASME A 112.18.1 500,000 times
Package contents:1 x 25mm mixer tap cartridge.
How to determine the tap cartridge size?
1. Remove the existing cartridge from your faucet.
2. Identify the size of the cartridge: Measure the diameter of your original cartridge using a caliper. Is it 25mm/35mm/40mm? (Single handle tap cartridges are available in 3 diameter sizes 25mm, 35mm and 40mm).

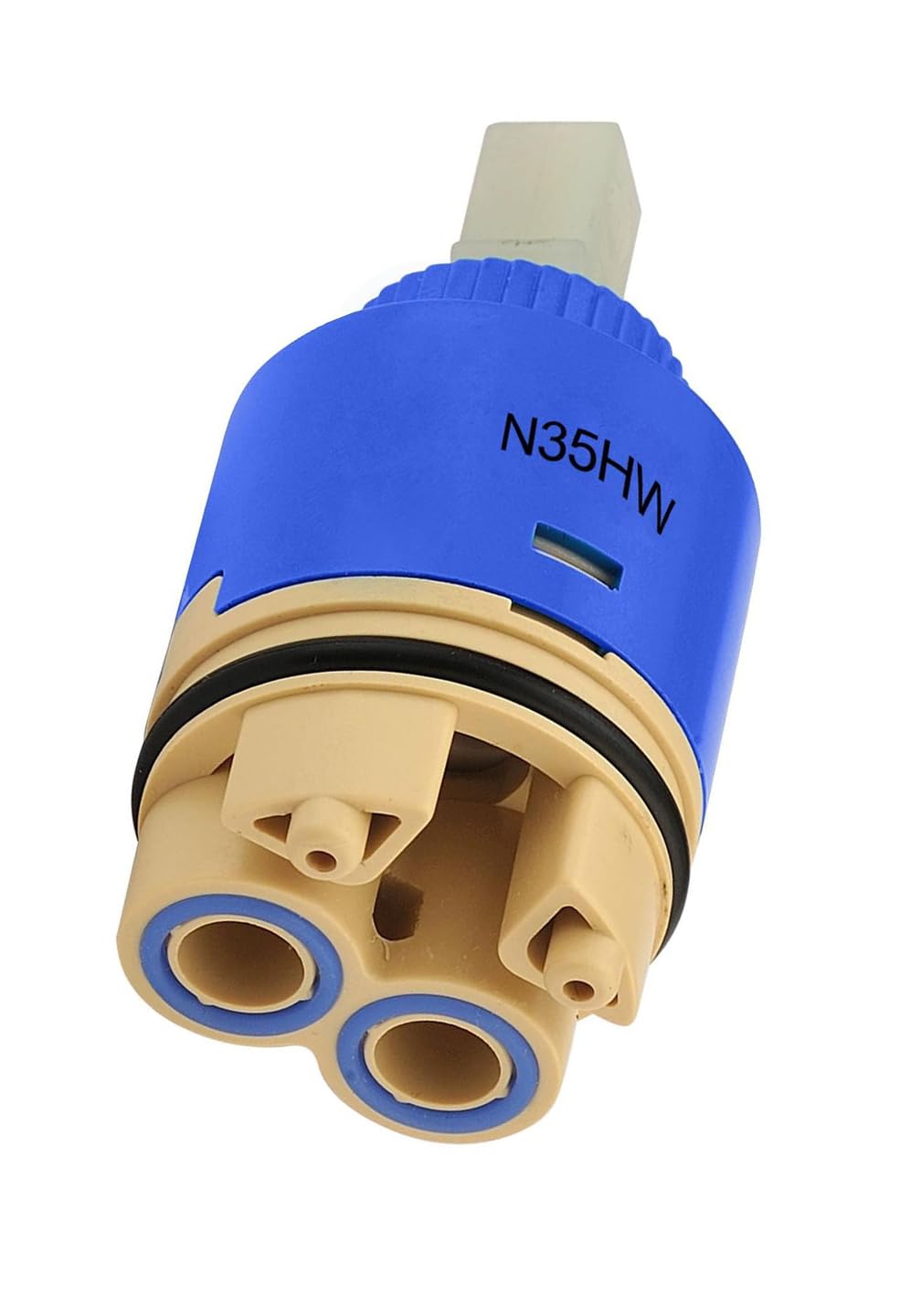

3. Determine if you need a cartridge with or without water distribution function: Compare the bottom of your original cartridge with our cartridge images to make a judgment.
4. Please reffer the technical data graphs and choose the correct size.
Installation:

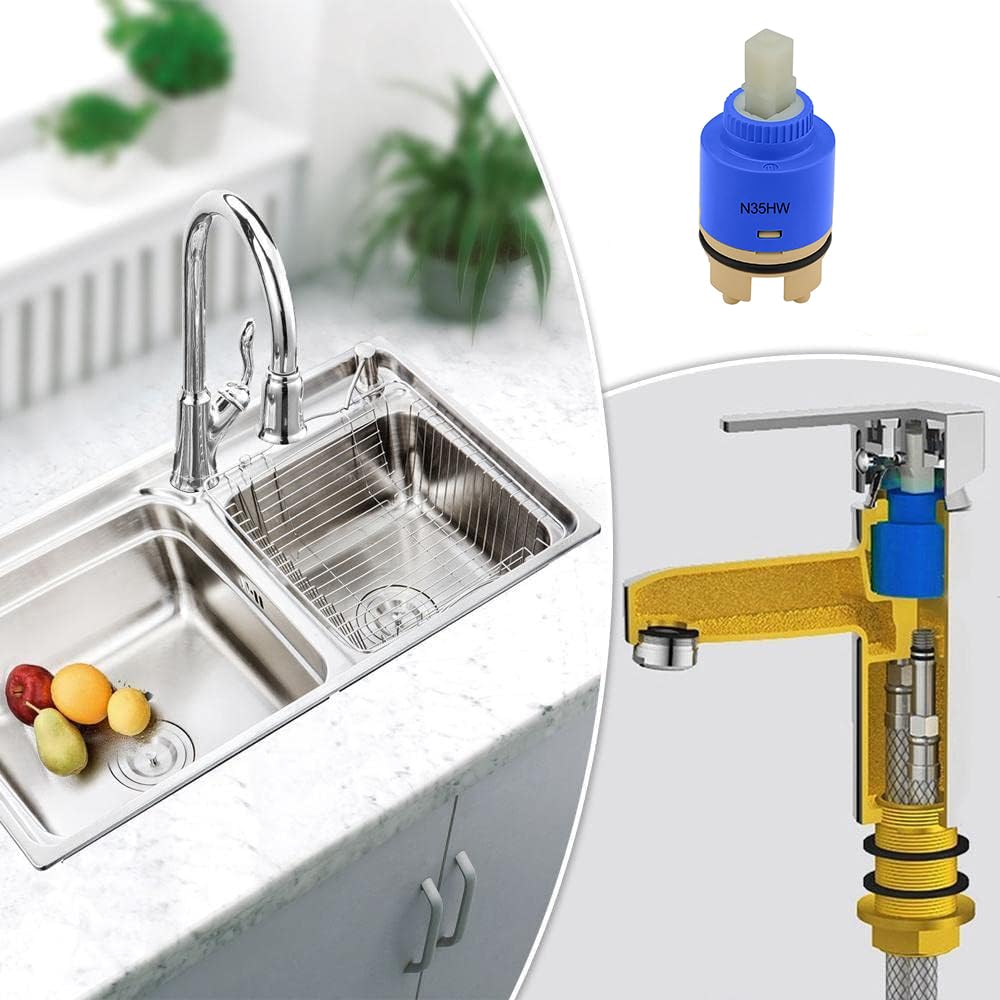

Please refer the picture and choose the ceramic cartridge which can compatible with your tap.
Make sure that the cartridge positioning feet fit into the holes in your mixer and make sure you have screwed the ferrule, greenhouse cartridge.
