Description
Introduction:

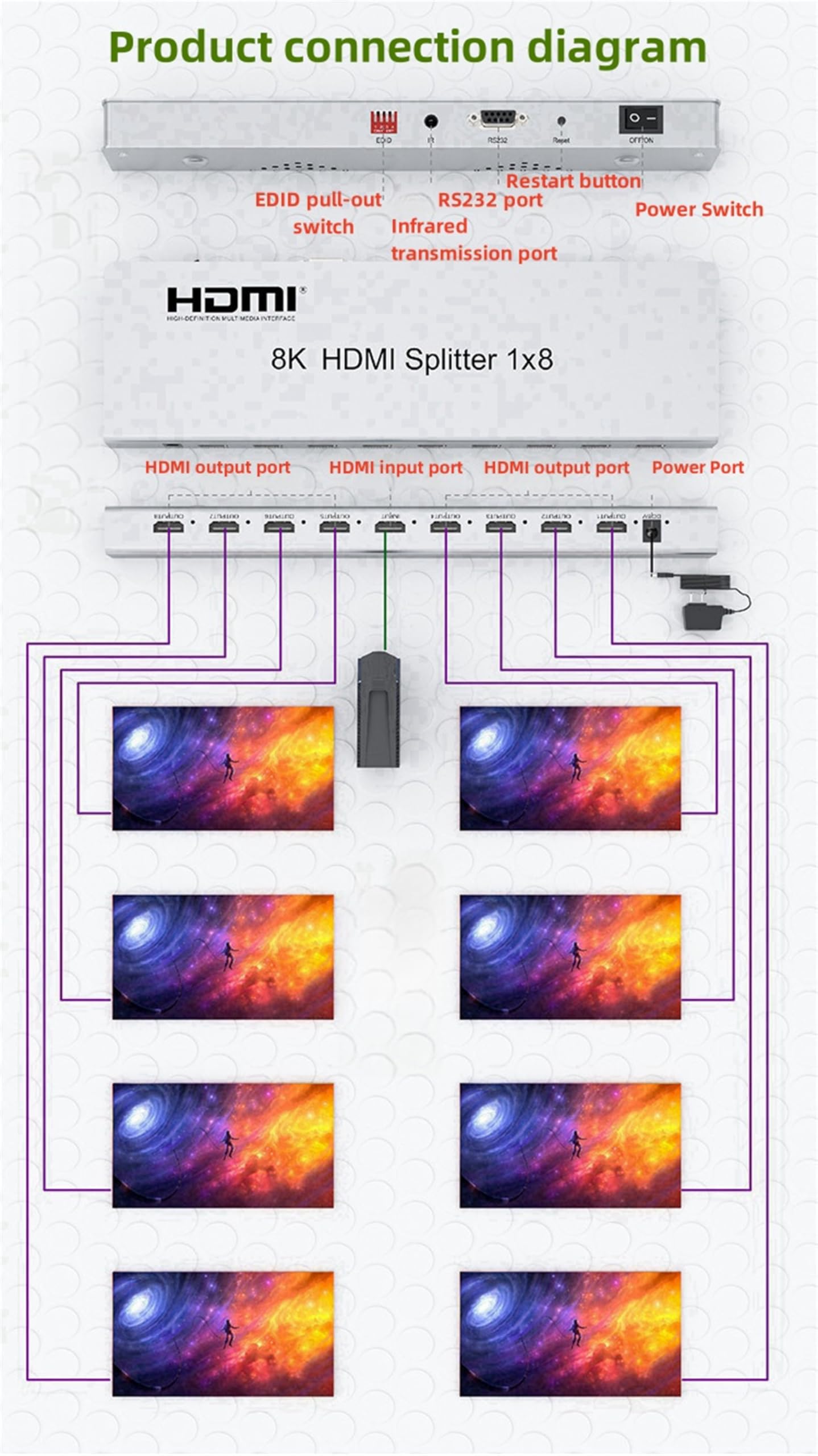

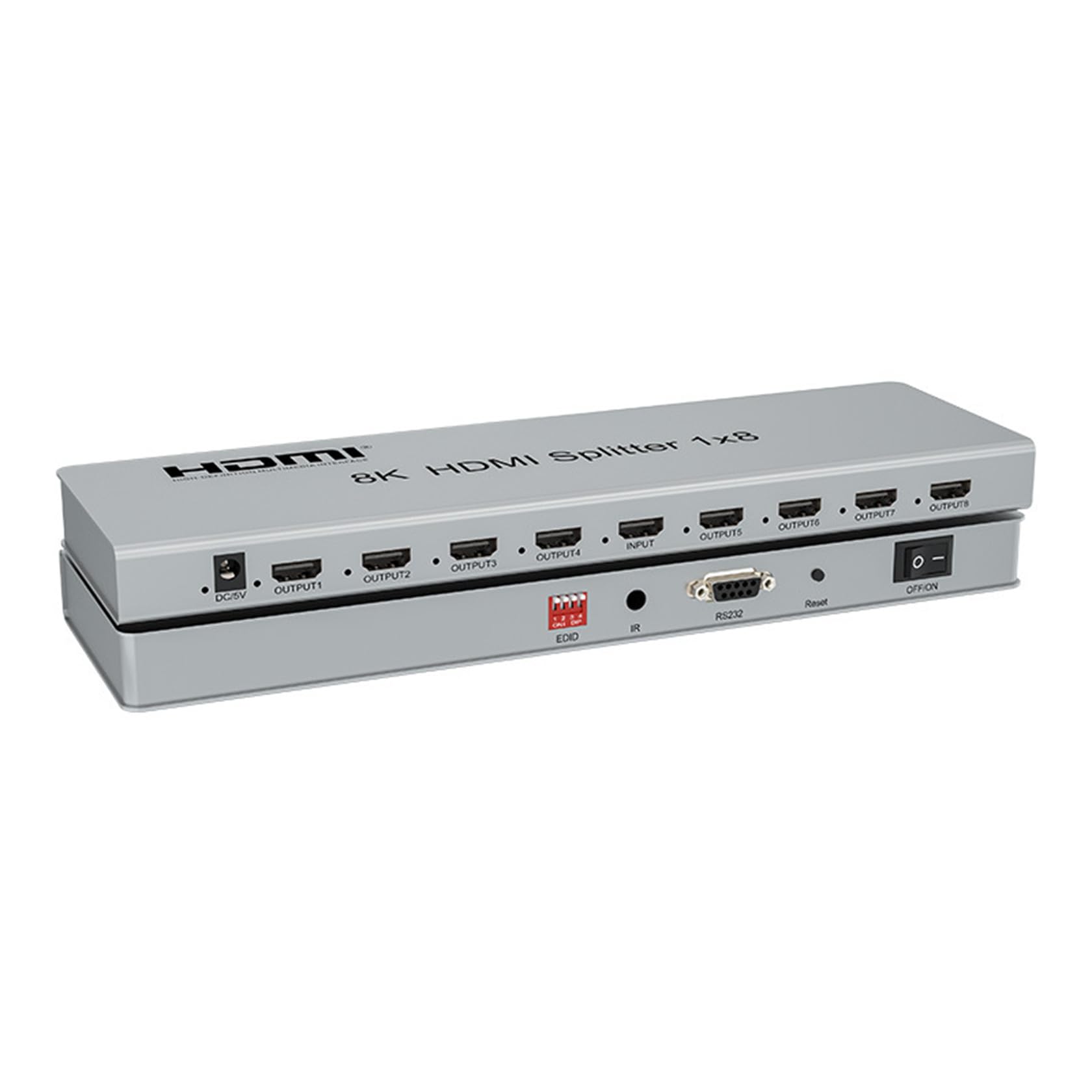

The 1X8 / 1×10 HDMI Splitter uses a single HDMI source,accessing to multiple HDMI sinks.It allows one HDMI device to be split easily to 8/10 HDMI compatible monitors or projectors. In addition，it can be placed at the end of a long HDMI cable to regenerate the HDMI signal.The resolution of this hdmi splitter can be up to 8K/60Hz.This splitter supports EDID management function, comes with eight kinds of EDID mode,the users can choose according to their own needs. In addition, this product is also built-in IR extension function, it can work with our hdmi 2.0 repeater which has IR-RX to receive the IR command to control the source.
Features:
Support HDR;
Support 3D video format;
Support CEC（only output1);
Support high resolution up to 8K/60Hz;
Remote control the source （via the IR-RX of HDMI repeater which splitter works with to receive the IR command);
Support EDID management;
Support output downscaling.
Specifications:
HDMI resolution:up to 8K/60Hz
Support video format:8/10/12bit Deep color
Support audio format:DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max baud rate:40Gbps
Input cable distance:(8K resolution)≤5m HDMI2.1 standard cable
Output cable distance:(8K resolution)≤5m HDMI2.1 standard cable
Max working current:2.2 A
Power adapter format:input AC(50Hz,60Hz) 100V-240V;output: DC5V/3A
Package Content for 8k 1×8 :
1 x 8K 1×8 HDMI splitter
1 x Power adapter
1 x User manual
Package Content for 8k 1×10 :
1 x 8K 1×10 HDMI splitter
1 x Power adapter
1 x User manual
