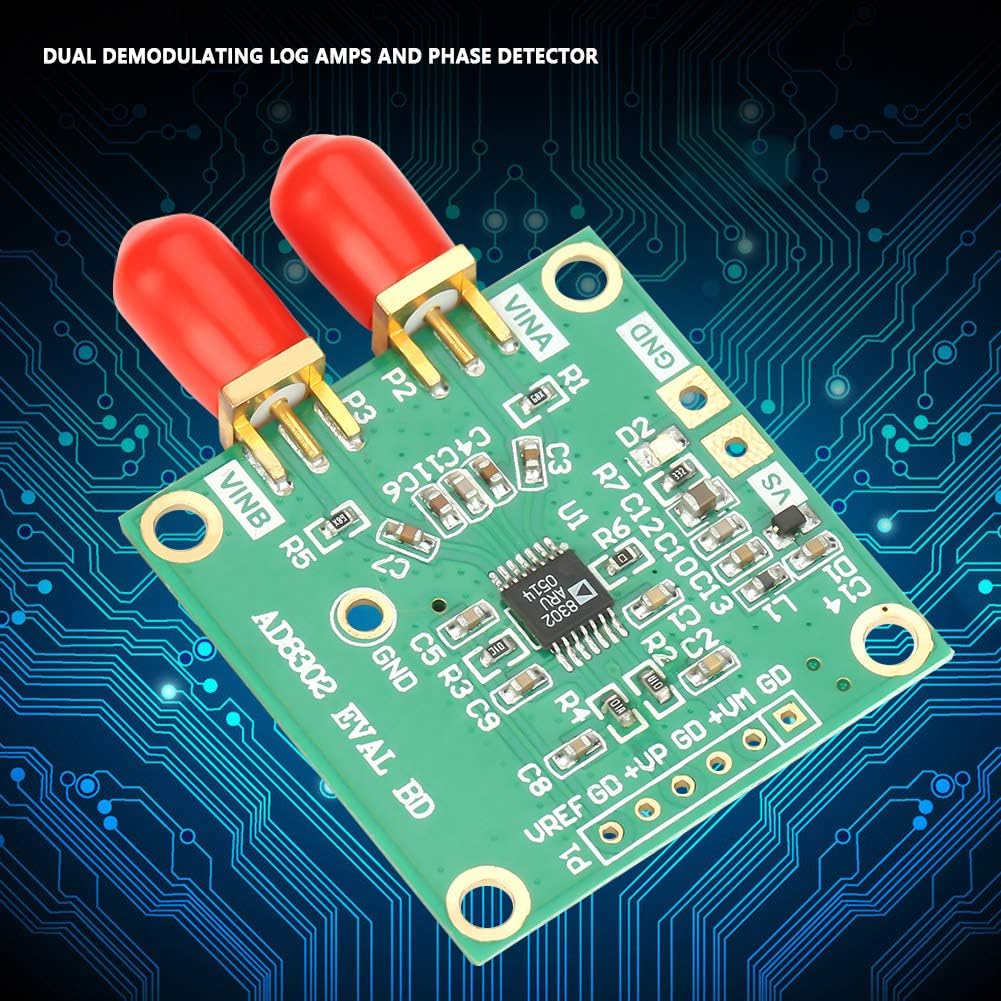

Akozon AD8302 Amplitude Phase RF Detector 2.7 GHz Phase Detection Bandwidth Module
Akozon AD8302 Amplitude Phase RF Detector 2.7 GHz Phase Detection Bandwidth Module - Image 2
Akozon AD8302 Amplitude Phase RF Detector 2.7 GHz Phase Detection Bandwidth Module - Image 3
Akozon AD8302 Amplitude Phase RF Detector 2.7 GHz Phase Detection Bandwidth Module - Image 4
Akozon AD8302 Amplitude Phase RF Detector 2.7 GHz Phase Detection Bandwidth Module - Image 5

Akozon AD8302 Amplitude Phase RF Detector 2.7 GHz Phase Detection Bandwidth Module

$0.00

  • This amplitude phase bandwitdth module measures Gain/Loss and Phase up to 2.7 GHz
  • Input Range -60 dBm to 0 dBm in a 50 Ω System
  • Accurate Gain Measurement Scaling (30 mV/dB)
  • It is typical nonlinearity < 0.5 dB, Typical Nonlinearity < 1 Degree
  • With dual demodulating log amps and dhase detector,this Amplitude Phase RF Detector has great performance.
  • Input Range -60 dBm to 0 dBm in a 50 Ω System
  • Accurate Gain Measurement Scaling (30 mV/dB)

Out of stock

  • International Express shipping available
  • 30 day easy returns
Guaranteed Safe Checkout

Description

Specification: Model: AD8302 Supply Voltages: 3.3v~5V Input Range:-60 dBm to 0 dBm(50 Ω) Measures Gain/Loss and Phase: Max. 2.7 GHz Reference Voltage Output: 1.8 V Size: 5*3.5cm/2*1.4in Weight: Approx.8g/0.3ozPackage list: 1 x AD8302 Amplitude Phase RF Detector

Additional information

Weight 0.01 kg
brand

Akozon
dimensions

‎8 x 7 x 6 cm; 10 Grams
SKU: B07HG6YC7C Category:
