Description
Specification:
Item Type: Animal Scanner
Material: ABS
Working Frequency: 134.2KHz
Data Storage: Stores 128 sets of data
Charging Method: USB
Charging Voltage: 5V
Screen Display: Organic LED Display
Continuous Working Time: 4 Hours
Reading Standard: ISO11784 85 FDX B and EMID
Buzzer: Built in
Operating Language: English
Power Supply: 3.7V Rechargeable Lithium Battery 800mAh (built in battery), fully charged in 90 minutes
Reading Distance: Approx. 15cm / 5.9in

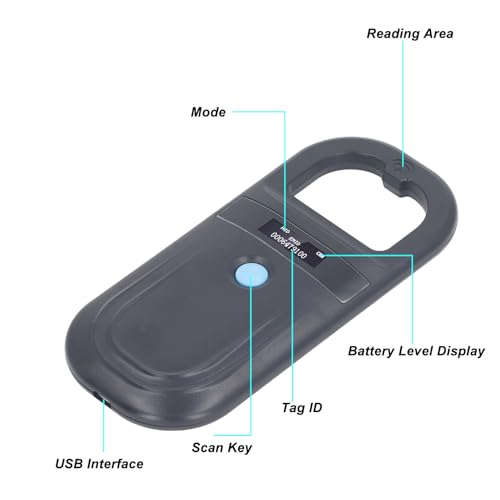

How to Use:
1. Power on and Card Reading:
Press the button to power on and enter the scanning tag interface.
2. Scanning Tag:
Scanning FDX‑B and EMID tag within the sensing area. If no tag is found, it will prompt No Tag Found.
3. Charging and Data Upload:
After connecting the USB cable, the USB symbol will appear in the upper left corner of the LCD screen, indicating the charging status. Press and hold the button for 3 seconds to upload the data stored in the device, up to 128 sets of data. After successful data upload, the interface will display as follows. Alternatively, you can connect the USB cable to upload real time data scanned by the device.
4. Auto Power Off:
The device will automatically power off after 120 seconds of inactivity.
PackageList:
1 x Animal Scanner
1 x Data Cable
