ARCELI DC 6V 9V 12V 24V to DC 5V 5A Buck Converter Module, 9-36V Step Down to USB 5V Transformer Dual Output Voltage Regulator Board
ARCELI DC 6V 9V 12V 24V to DC 5V 5A Buck Converter Module, 9-36V Step Down to USB 5V Transformer Dual Output Voltage Regulator Board - Image 2
ARCELI DC 6V 9V 12V 24V to DC 5V 5A Buck Converter Module, 9-36V Step Down to USB 5V Transformer Dual Output Voltage Regulator Board - Image 3
ARCELI DC 6V 9V 12V 24V to DC 5V 5A Buck Converter Module, 9-36V Step Down to USB 5V Transformer Dual Output Voltage Regulator Board - Image 4
ARCELI DC 6V 9V 12V 24V to DC 5V 5A Buck Converter Module, 9-36V Step Down to USB 5V Transformer Dual Output Voltage Regulator Board - Image 5

ARCELI DC 6V 9V 12V 24V to DC 5V 5A Buck Converter Module, 9-36V Step Down to USB 5V Transformer Dual Output Voltage Regulator Board

$0.00

  • Make sure this fits by entering your model number.
  • Power Supply: DC 9-36V; Output Voltage: 5-5.3V; Output Power: 18W to 30W (input DC 9-24V, output 5.2V/6A; input DC 24-32V, output 5.2V/5A; input DC 32-36V, output 5.2V/3.5A)

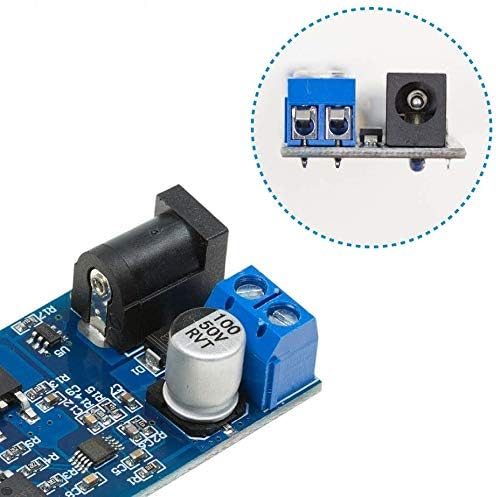

  • Input Port: 5.5mm×2.1mm DC socket and wiring terminal, each way makes the module work, can also be connected at the same time; Output Port: USB and wiring terminal, can output power at the same time.
  • High-efficient Transformation: the module adopts the new technology synchronous rectification, which improves conversion efficiency obviously and expands the working voltage and current.
  • Mini and Portable: 63 x 2 x 10mm, suitable for various narrow installation space and small case.
  • Application: as a USB 5V buck converter, DIY a phone charger, refit car charger, supply power to raspberry pi 4 b.

Out of stock

  • International Express shipping available
  • 30 day easy returns
Guaranteed Safe Checkout

Description

Feature:1. Synchronous rectification scheme, wide voltage, high current, high efficiency2. With DC plug and terminal, easy to use3. With USB port, with fast charge recognition chip compatible with android and iphoneParameter:1: Operating voltage: DC 9V-36V2: Output voltage: 5.2V / 5A / 25W3: Output capacity:input 9V~24V : output 5.2V / 6A / 30Winput 24V~32V : output 5.2V / 5A / 25Winput 32V~36V : output 5.2V / 3.5A / 18W4: Size: 63*27*10mm (length*width*height)5: Weight: 22gPackage included:1 X Step down module power converter

Additional information

Weight 0.024 kg
brand

ARCELI
dimensions

‏
:
‎

11.2 x 7.5 x 2 cm; 24 Grams
SKU: B07RGB2HB6 Category:
