Description
Specification:

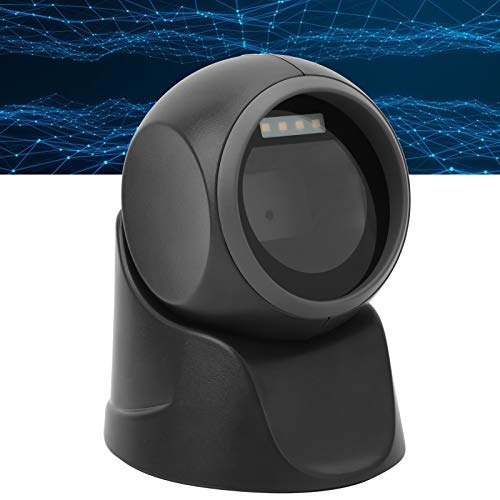

Item Type: 2‑Dimensional Code Reader
Product Model: SC-7130-2D
Image Sensor: 640 x 480 CMOS
Light Source: Pcs white LED
Symbologies:
2D: PDF417，Data Matrix, QR Code, Micro QR
1D: Code 128, UCC/EAN-128, AIM 128, EAN-8, EAN-13, I SSN, I SBN, UPC-E, UPC-A, Inter leaved 2 of 5, ITF-14, Matrix 2 of 5 (European Matrix 2 of 5), Industrial 2 of 5, Standard 2 of 5, Code 39, Codabar, Code 93, Code 11, MSI-Pl essey, RSS-14, RSS-Limited, RSS-Expand, etc.
Resolution: 1D≥5mil 2D≥10mil
Depth of Field:
EAN13: Approx. 20-200mm (13mil) / 0.8-8in
Code 93: Approx. 10-100mm (5mil) / 0.4-4in
QR Code: Approx. 5-180mm (15mil) / 0.2-7.1in
Payment Code (PHOE): Approx. 20-450mm / 0.8-17.7in
PCS: 10%
Interface: USB-HID, USB-VCOM, UART (DUE TO ORDER)
Size: Approx. 110 x 150 x 122mm / 4.3 x 5.9 x 4.8in
Working Mode: TRIGGER MODE, AUTO-SENSOR, CONTINUOUS SCAN
Weight: Approx. 348g / 12.3oz (With cable)
Input Voltage: 5VDC ± 10%
Current: Operating: 210mA ± 10mA; Standby: 130 ± 5mA
Operating Temperature: 0℃ to 45℃
Storage Temperture: -20℃ to 60℃
Humidity: 5%~90% (no-condensing)
Shock Resistance: 1. OM FREE FALL TEST
Certificate: FCC Part15 Class B, CE EMC Class B
Versions: V1.1
Package List:
1 x Scanner
1 x USB Cable
1 x Manual
Note:
When using the scanner, make sure that the voltage meets the technical requirements. During use, do not direct eyes. Please protect the scanner if it comes into contact with corrosive, chemical, and other potentially dangerous, high‑pressure, and toxic substances. Please read this manual carefully before use to confirm the use environment
