Description
Features:

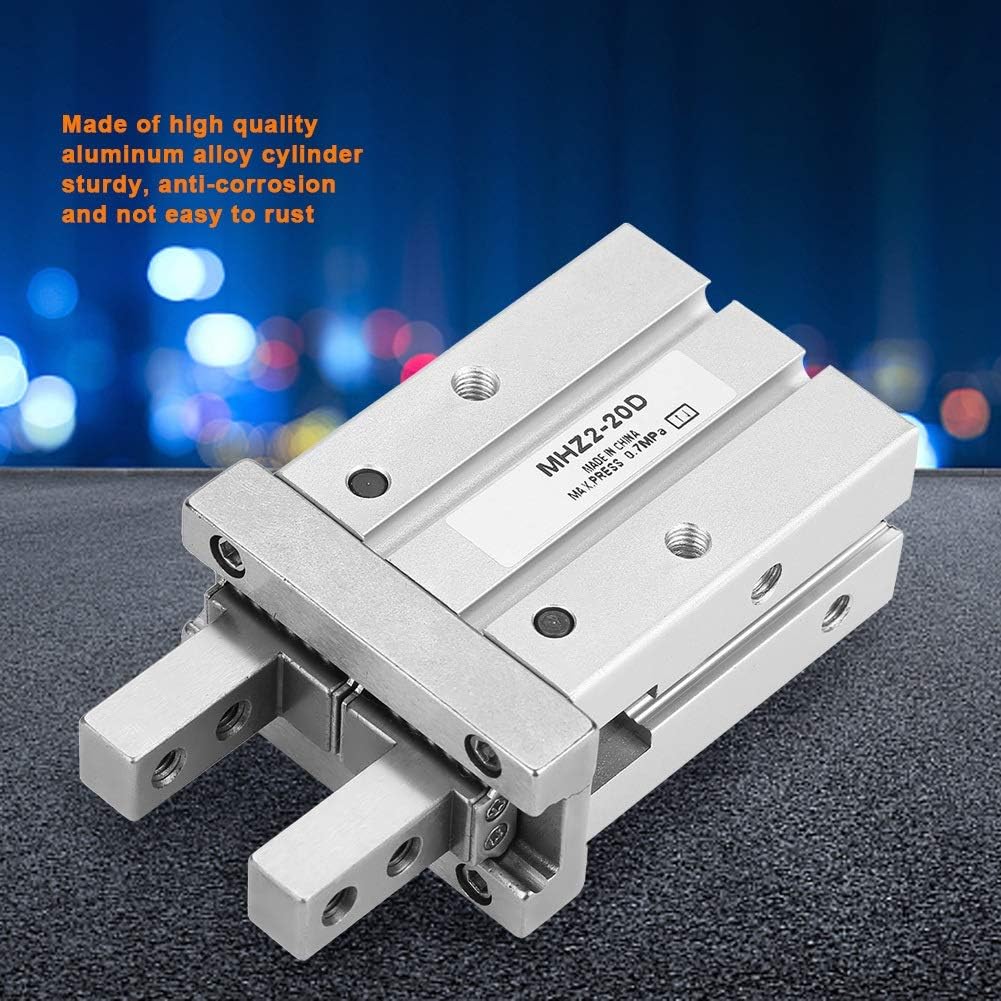

1. Made of high quality aluminum alloy cylinder, sturdy, anti-corrosion and not easy to rust.

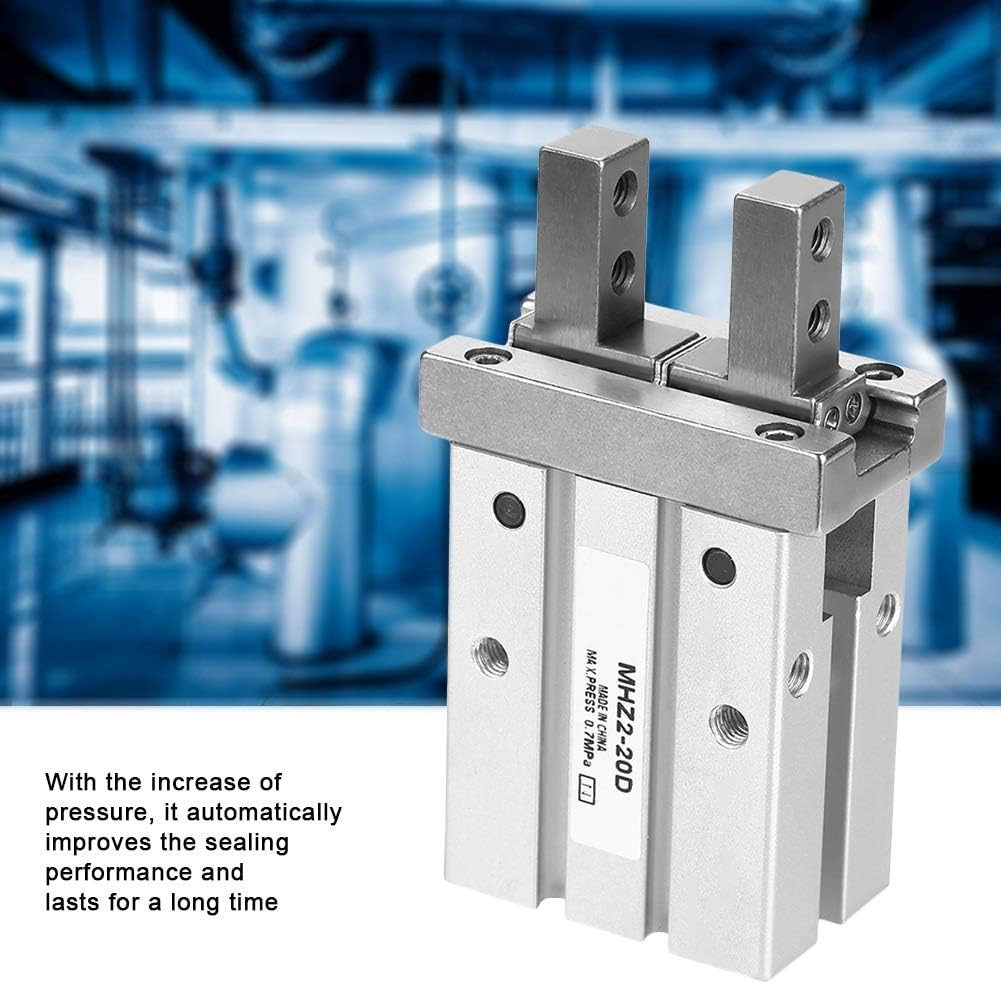

2. With the increase of pressure, it automatically improves the sealing performance and lasts for a long time
3. Adopt high-precision steel ball zero clearance slide rail, work smoothly, steel ball will not fall easily
4. The surface of the cylinder has increased the hard oxidation technology, which increases the surface hardness of the cylinder, is not easy to deform, and is durable.
5. The center of the cylinder body is formed once, the hole pitch is accurate, and the sealing is strong
Specification:
Condition: 100% Brand New

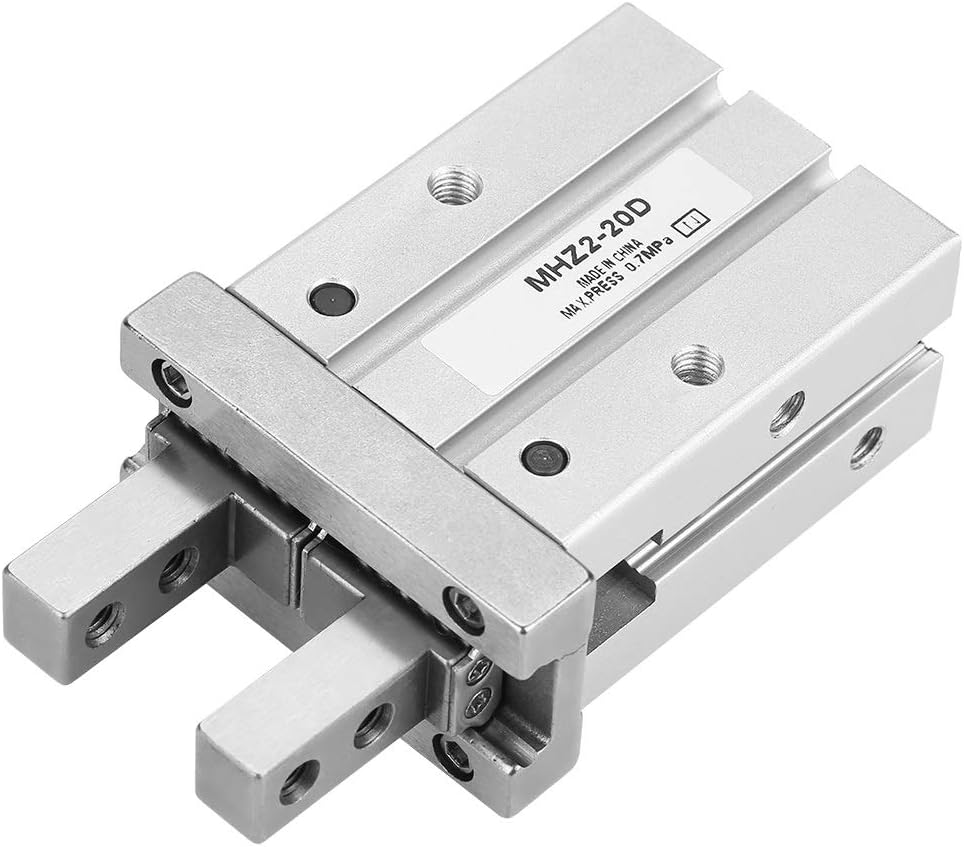

Model: MHZ2-20D
Bore Diameter: 20mm
Use Fluid: Air
Operating Pressure Range: Double Acting(0.1-0.7MPA)
Single Acting(0.25~0.7MPA)
Ambient Temperature: -10~60°C
Repeatability: ±0.01mm
Maximum Frequency of Use: 180
Mode of Action: Double Acting, Single Acting
Magnetic Switch (Optional): Non-Contact Magnetic Switch
Take-Up Diameter: M5*0.5
Weight: Approx. 244g / 8.6oz
Package List:
1 * Air Gripper Pneumatic Cylinder
