Description
DIY wireless remote control switch
1.3000W high power, enough to meet the use of an electric water heater and high power pumping unit. The theoretical control power is 6600W, considering that the load starting current is too large. In order to prolong the service life of the product, so it is not recommended to exceed 3000W.
Resistive load (motor, water pump ): Within 3000w
Inductive load (such as LED ): Within 800W
2.1500 meters of remote control distance, easy to work in garden square farms and even factories.

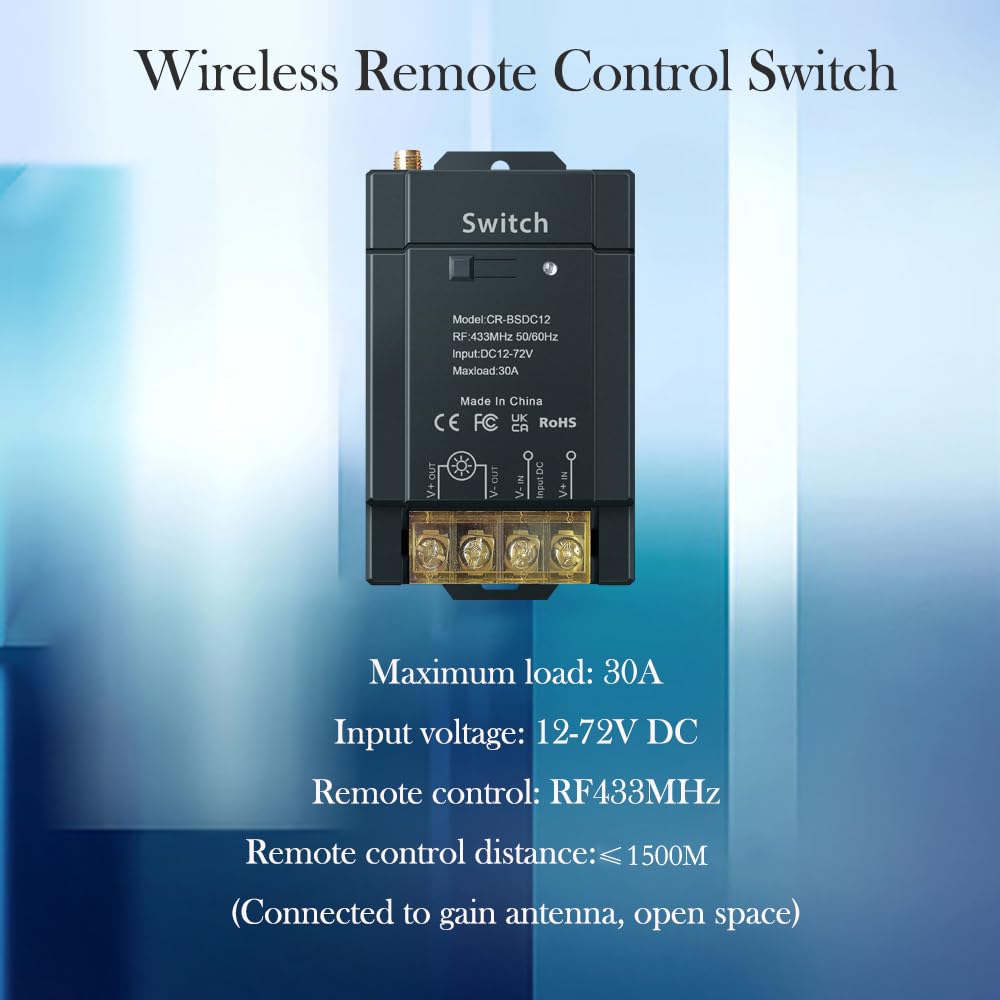

Technical indicators:
voltage:DC12V-72V
max load:30A
working distance:1500M/4900FT
Cable length of antenna: 3m
Receiver sensitivity: : -114dBm
Rated power: 3000W
Code type :Learning code
type of battery:(6F22 9V)
Package Includes:
2 x remote controls(with battery)

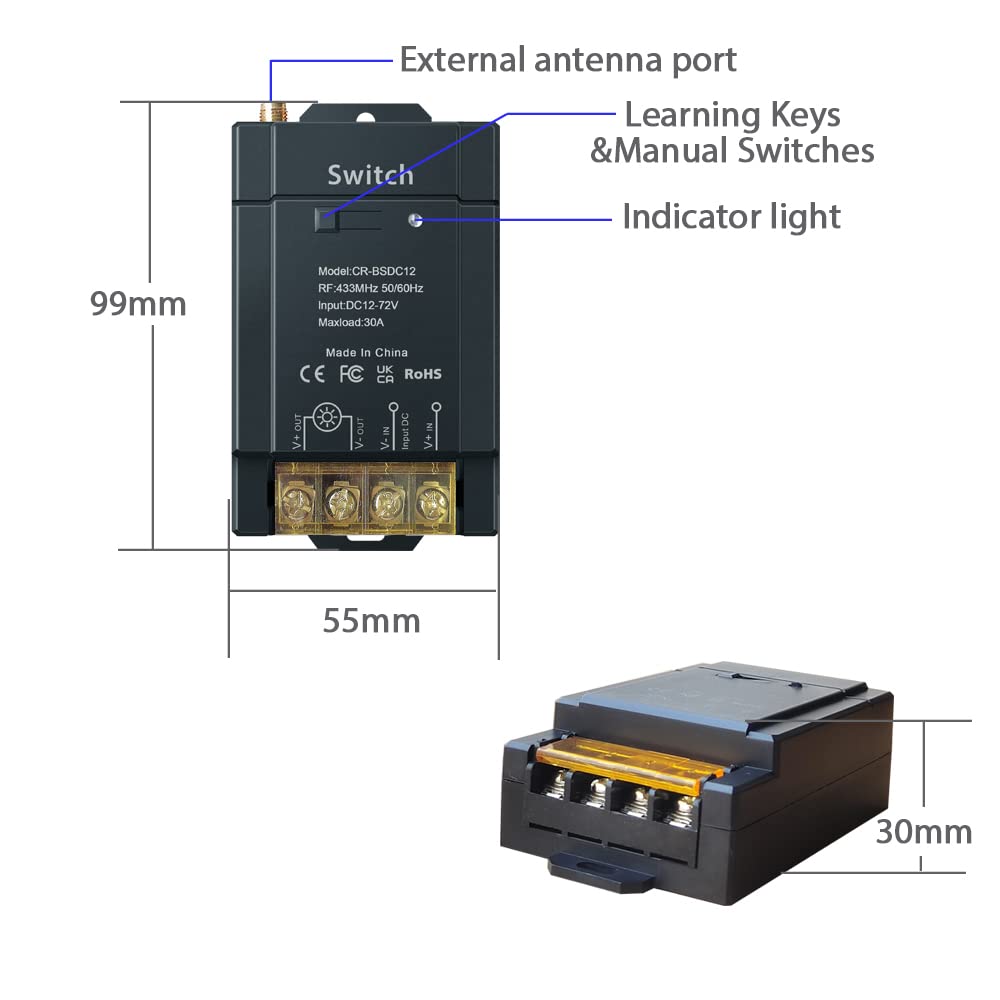

1 x Switch (with antenna)
4 x Insulated terminal blocks
1 x Manual
NOTE:
1.Connect the switch to the circuit,No matching remote control.
2.When in using, a plastic slider on the side of the remote need to be moved into a particular position.
3.The remote control switch is not waterproof. If it is placed outdoors, you can place it in a plastic waterproof box,which will not affect the signal.NOTE:Please don’t put it in a metal waterproof box, otherwise there will be no signal.
4.Please feel free to contact us if you encounter problems with resetting or any about item question.
