Description
Description:

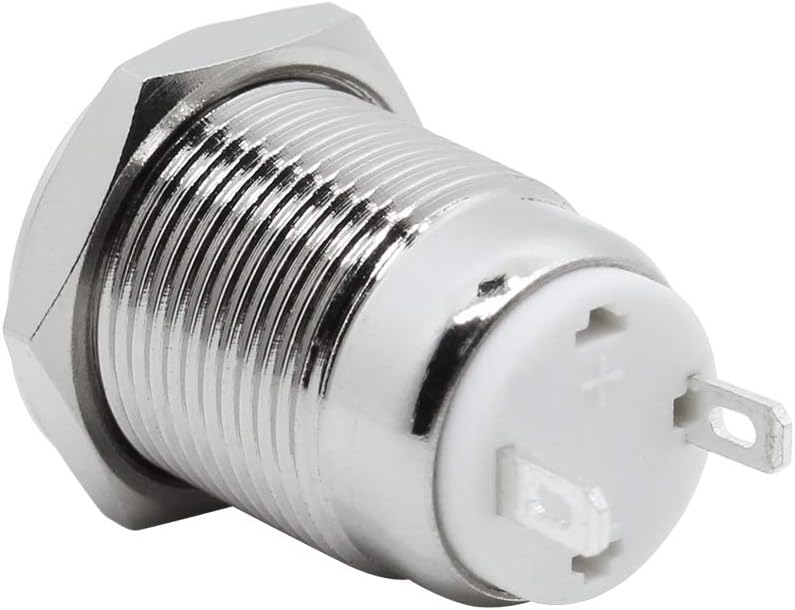

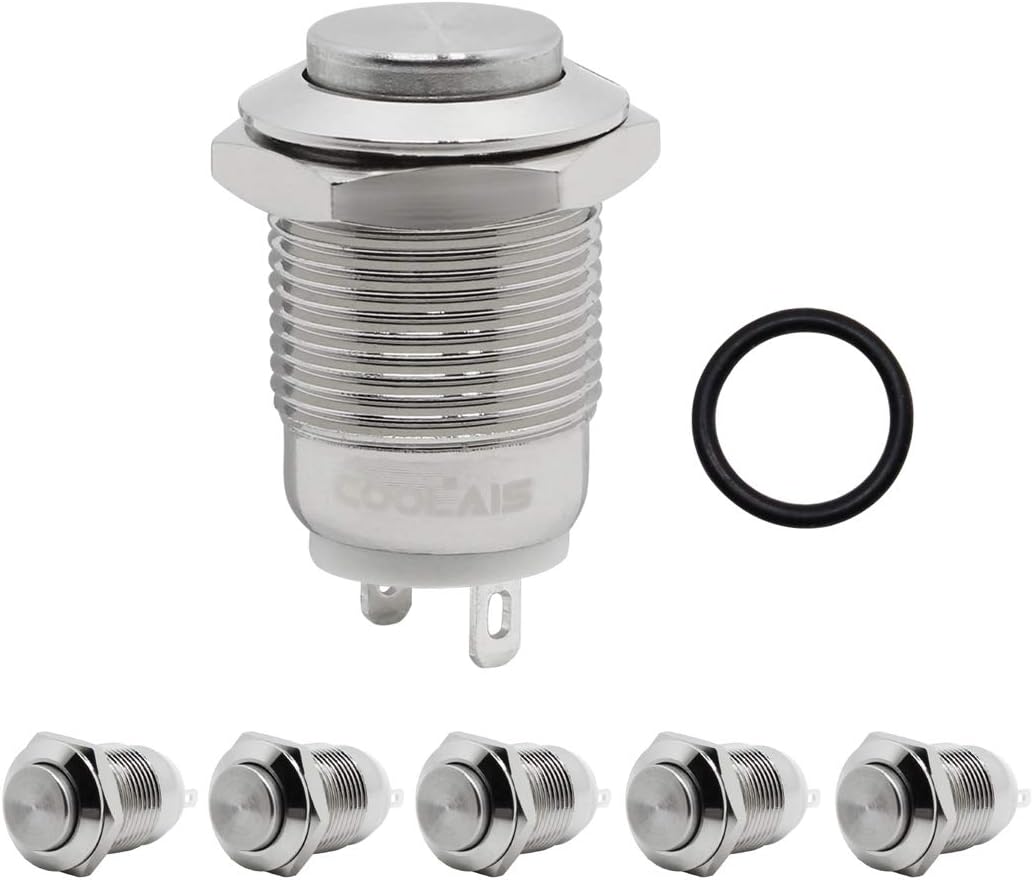

* Product Name: Coolais 12mm Rustproof and Waterproof Push Button Switch Momentary
* Color: Silver
* Material: nickel plated brass + stainless steel
* Head Shape: high head / flat head for your choice
* Head Diameter: 9/16″ (14mm)
* Mounting Hole Size: 1/2″ (12mm)
* Switch Combination: 1 NO
* Terminal Type: 2 Pins, Soldering
* Operation Type: Momentary
* Switch Max Rating: 5A/250VAC
* Protection Level: IP67, IK10
* Operation Temperature: -20℃ to +55℃
* Contact Resistance: ≤50mΩ
* Insulation Resistance: ≥1000mΩ
* Mechanical life: >500,000 times
* Electrical life: >50,000 times
Package includes:
1. 5 x Metal Push Button Switch
2. [IMPORTANT!!!] The using guide is NOT included in the packaging, this product is recommended to professional users. But if you meet any problem during operation, please feel free to contact us. We will reply you within 24 hours.
Notes:
1. These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged in the water.
2. For the wiring terminal pushbutton switch, please do your best to finish the soldering within 3 second.
3. Please allow 1-3mm error due to manual measurement. Thanks for your understanding.
