DAOKAI 10 Pcs 3.5mm Stereo Jack Panel Mount Nickel Plated Female Audio Connector PJ-392 Audio Socket for Headphone/Audio/Video with 3.5mm TRS Male Plug

Description

Details

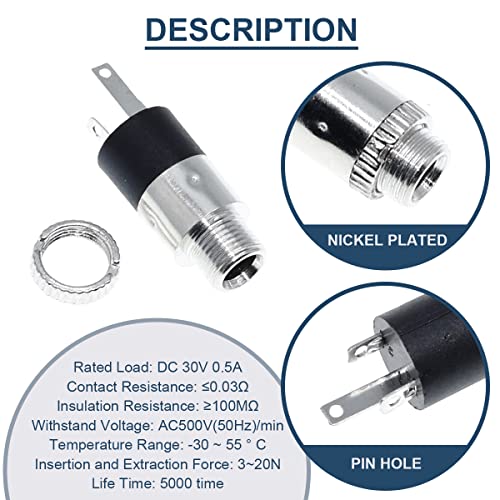

DAOKAI 10 Pcs 3.5mm Stereo Jack Panel Mount Nickel Plated Female Audio Connector PJ-392 Audio Socket for Headphone/Audio/Video with 3.5mm TRS Male Plug: 🥇SpecificationRated Load: DC 30V 0.5A; Contact Resistance: ≤0.03Ω; Insulation Resistance: ≥100MΩ; Withstand Voltage: AC500V(50Hz)/min. 🥇MaterialMade of quality plastic and nickel plated metal, anti-corrosion and wear resistant, more durable for use.

Key features

• 🥇SpecificationRated Load: DC 30V 0.5A; Contact Resistance: ≤0.03Ω; Insulation Resistance: ≥100MΩ; Withstand Voltage: AC500V(50Hz)/min

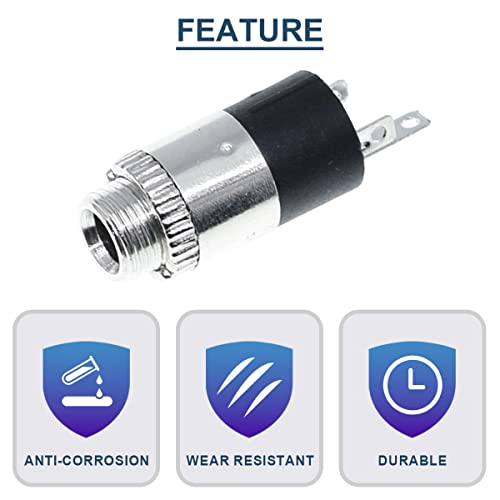

• 🥇MaterialMade of quality plastic and nickel plated metal, anti-corrosion and wear resistant, more durable for use
• 🥇Pin DefinitionPIN 1- Ground; PIN2- Right Audio Channel; PIN3- Left Audio Channel
• Colour: Nickel Plated PJ-392

Product specifics

• Brand: DAOKAI
• Category: Adapters
• Colour: Nickel Plated PJ-392
• Model: DE-DA-010
• Part number: DE-DA-010
