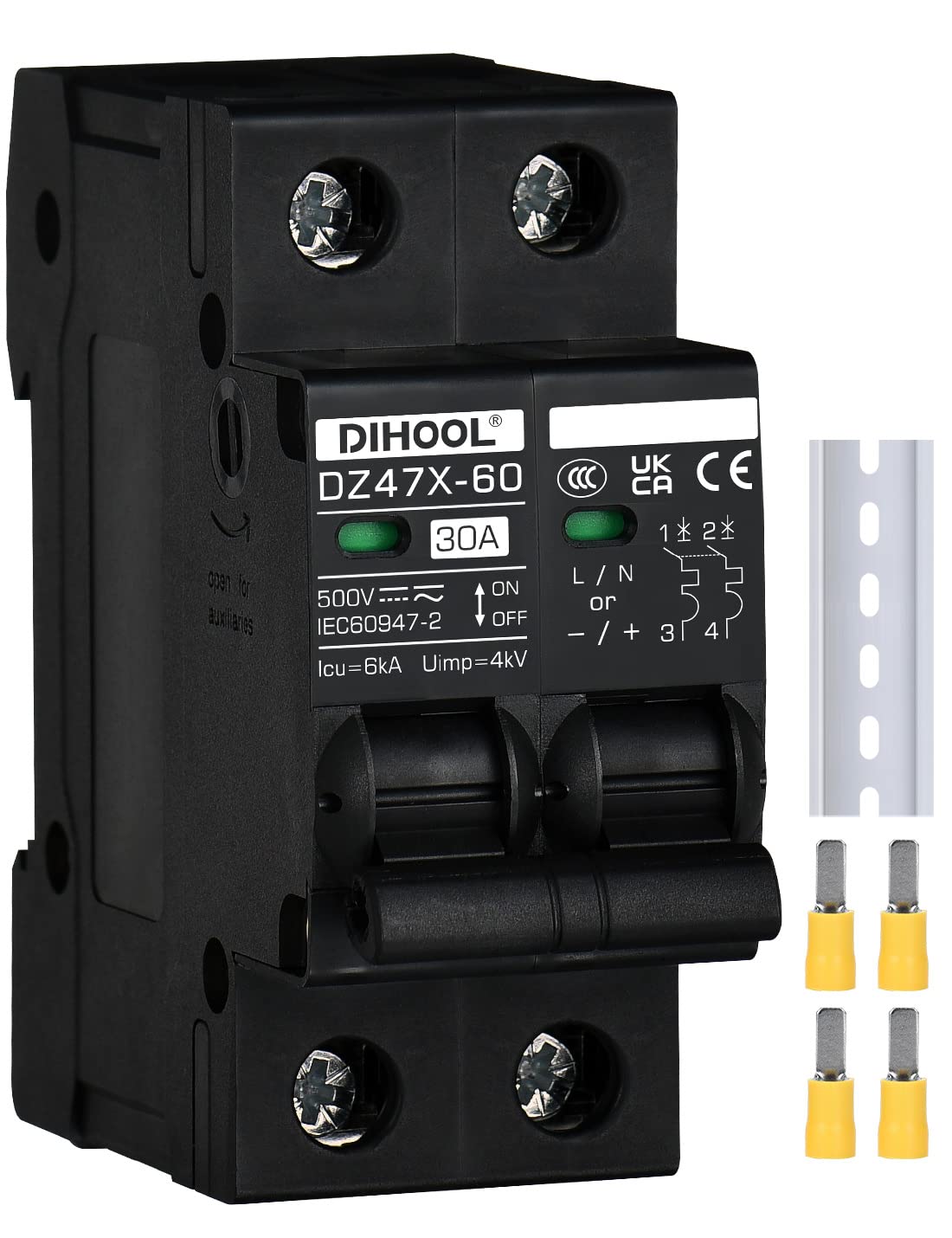

DIHOOL DC Circuit Breaker 12V 24V Solar PV Circuit Breaker Photovoltaic Fuse Automatic (DC500V,2 Pole,30 Amp)
$0.00

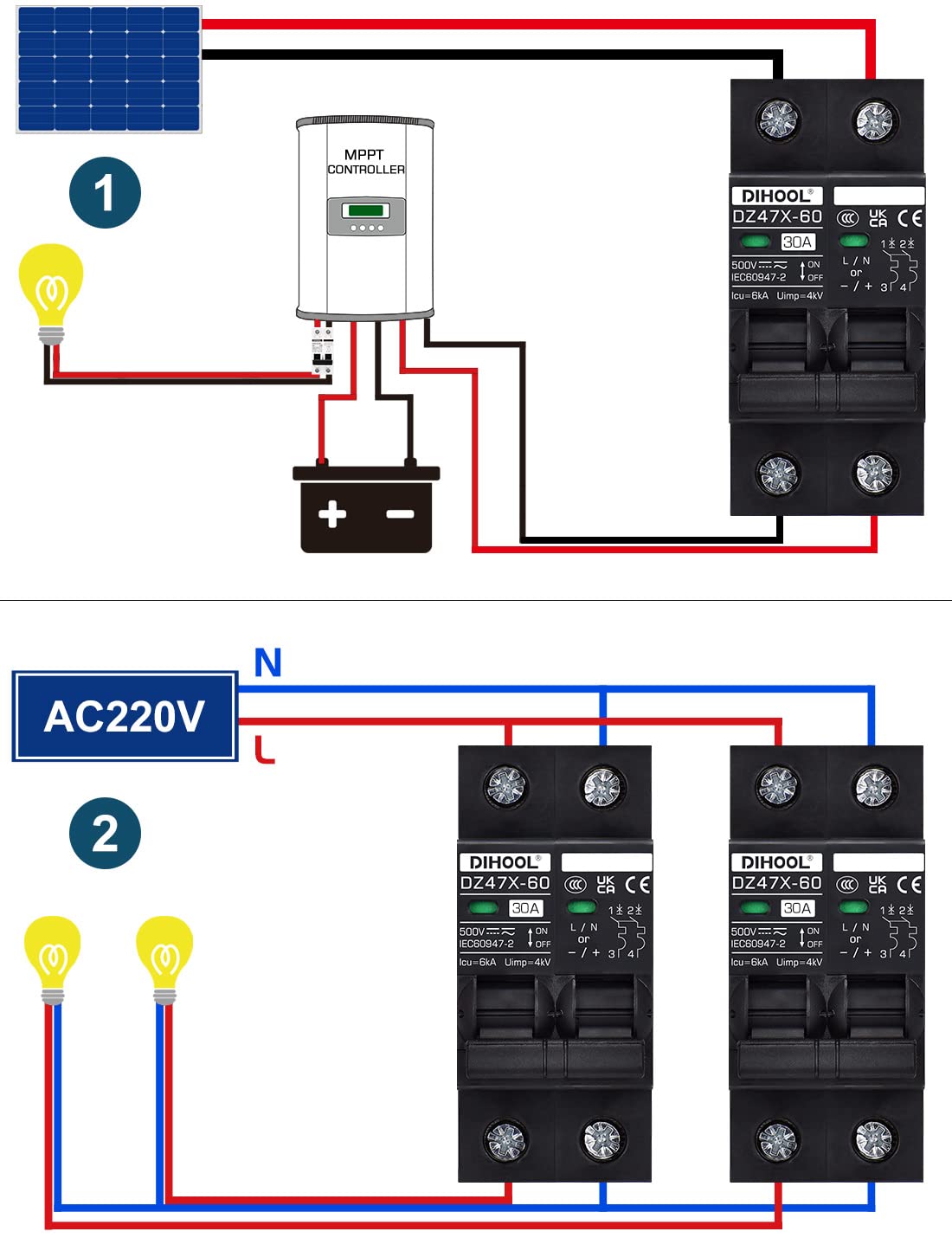

- This DC circuit breaker has short circuit protection and overload protection. Circuit breakers can also be used as on-off switches for DC load circuits. Suitable for DC systems such as solar power generation systems, small power generation systems, communication systems and photovoltaic systems. Widely used in grid coupled solar module systems, wind solar hybrid systems and other DC systems
- High performance flame retardant shell and fire resistance, high sensitivity, strong compatibility, high stability and long service life
- High breaking capacity:4KA; field:2 poles; Rated current:32a;

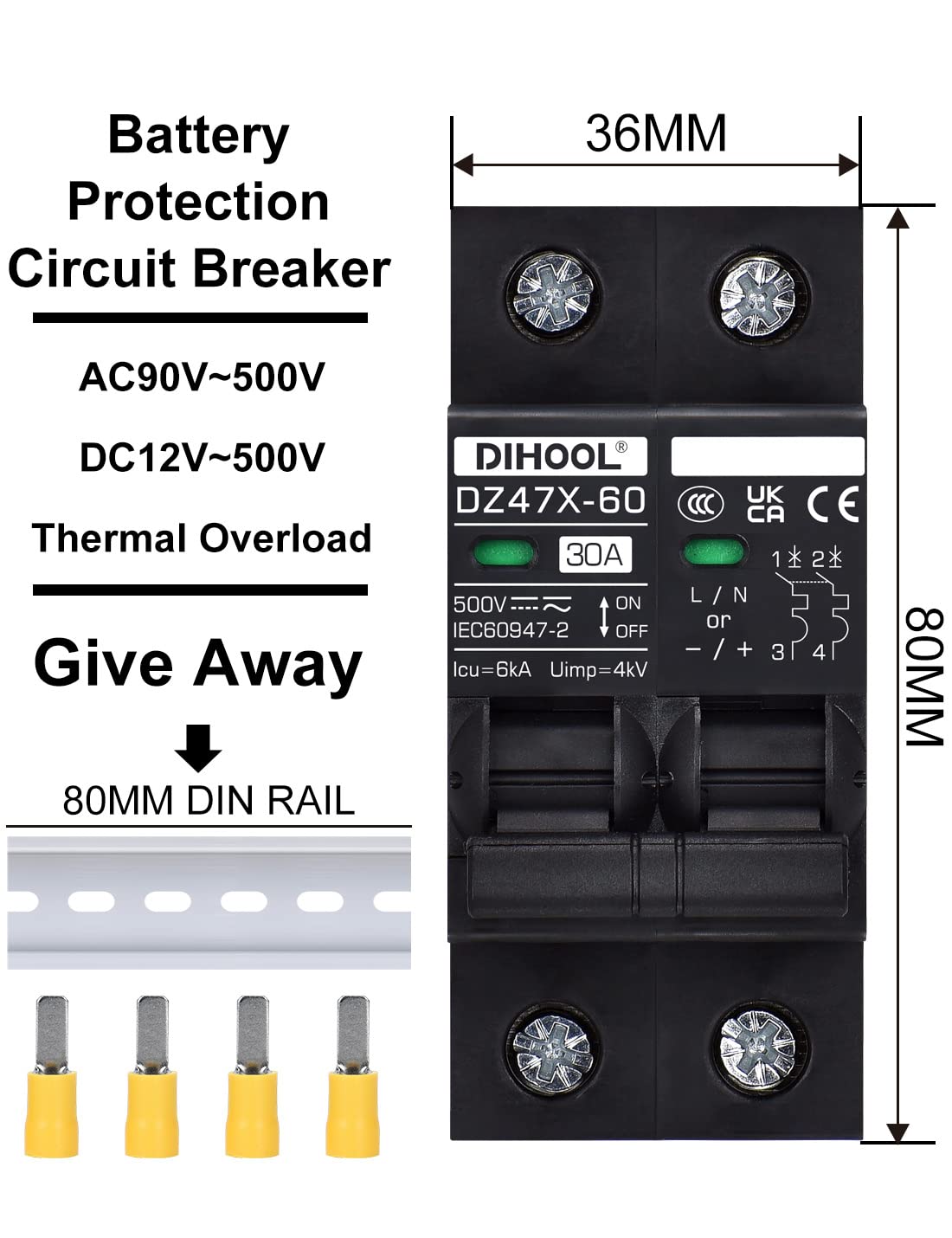

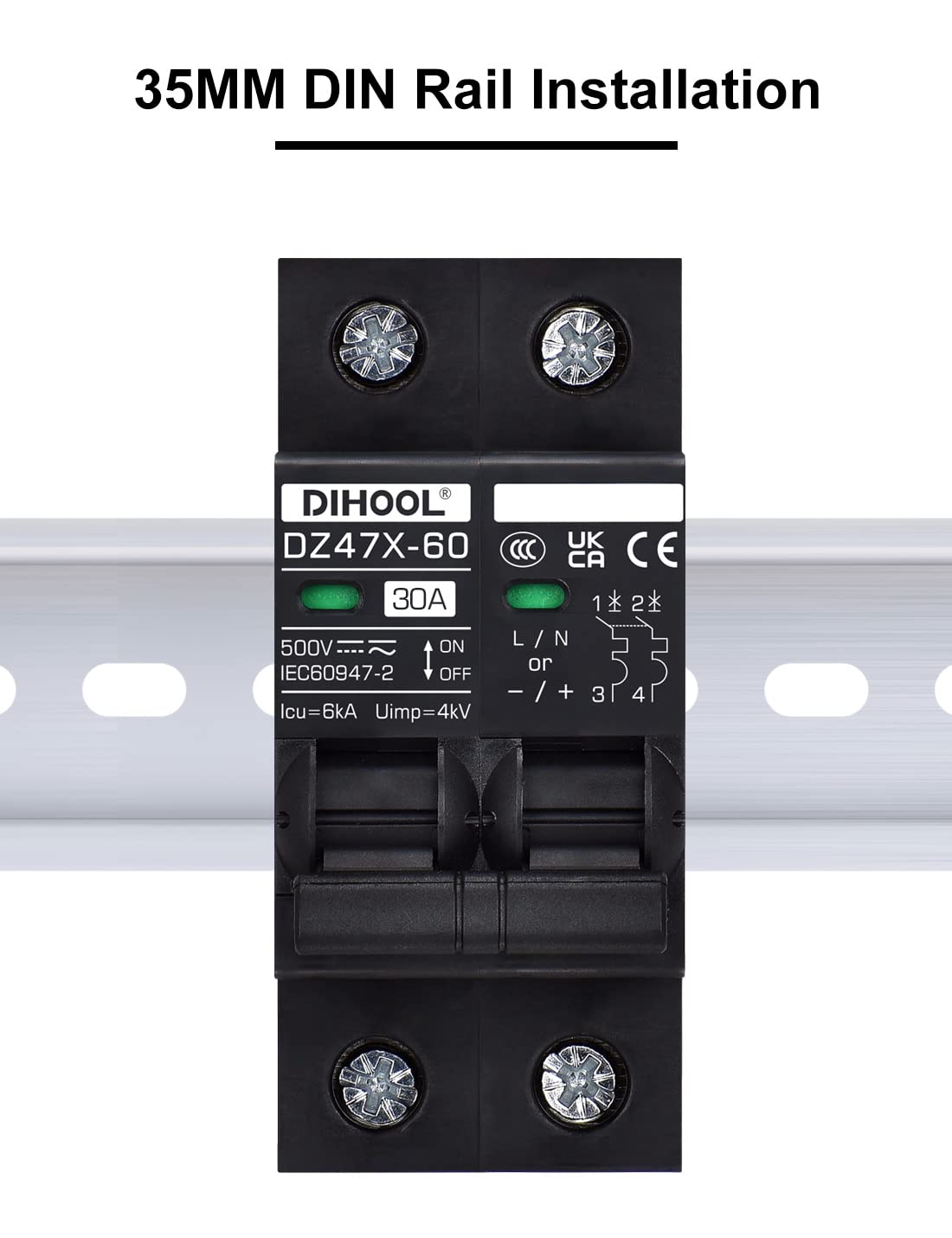

- Size: 36 mm x 80 mm x 75 mm. INSTALLATION: Cable with screw terminal, 35 mm DIN rail mounting.
- The electromagnetic trigger system can trigger immediately when the circuit is short-circuited to ensure the safety of the circuit.
