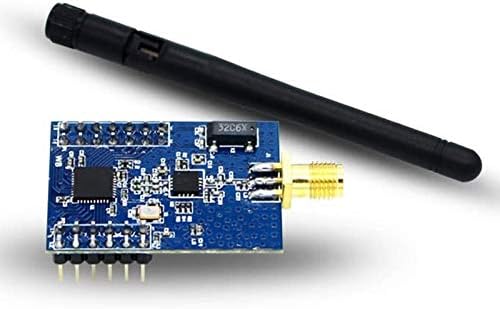

Domilay has been registered. Unless authorized by us, other sellers cannot sell products whose brand is Domily. The relentless pursuit of perfection is our goal. We are always here to serve you! Name: PA ModuleZ- 0002 ZigBee module basic parameters:ZigBee :1. standard: 802.15.4 protocol2. Frequency range: 2.405GHz~ 2.480GHz3. Transmitting power: programmable up to 21dBm.4. ZigBee protocol: ZigBee protocol stack (Z-Stack)5. Receive sensitivity: -97dBm@250kbps6. Antenna: 2.4G antenna with external SMA interface7. Transmission distance: open visual distance up to 800m (PA maximum transmission power 21dBm)PCB board:1. Number of layers: 4 layers2. Size: 36.0 x 25.6 mm PCB board3. Interface: Standard 2.54mm pin headerModule hardware parameters:1. Working voltage: 2.0V- -3.6V2. Working current: emission current 30mA@21dBm; receiving current 26mA (average current)3. Working temperature: -40 ° C – – 85 C (industrial grade)4. Storage temperature: -40C- -125°C5. Transmission rate: transmission rate up to 250kbps6. Resources: All I/O resources of CC2530 are drawn out, which is convenient for secondary developmentur: blueMaterial: PCBPackage Contents:1 x PA module1 x antennaOnly the above package content, other products are not included: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
