Description
Details

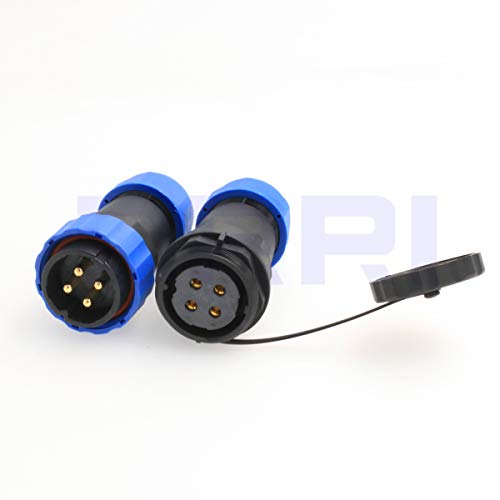

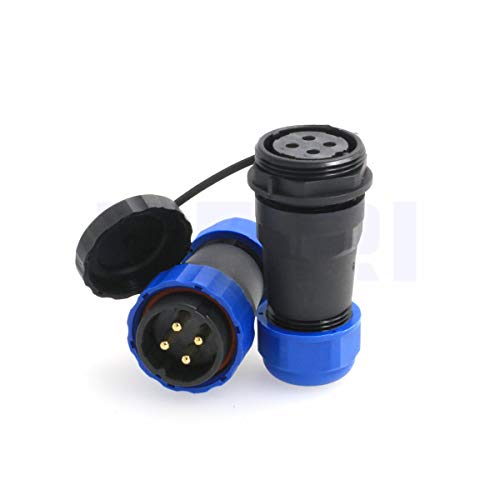

DRRI in-line HE29 4pin 28mm Waterproof Circular Aviation Connector Industrial Threaded Plastic Connector Male Plug Female Socket: Panel Thread Diameter:28mm，Cable Range :12-15mm.Wire Size for solder: ≤6mm² /10AWG,Contact Diameter: Φ3.6mm. Waterproof Level : IP68 ;Rated Current / Voltage : 45A/ 380V; Test Voltage min : AC 1500V；Resistance: 0.5mΩ.
Key features
- Panel Thread Diameter:28mm，Cable Range :12-15mm.Wire Size for solder: ≤6mm² /10AWG,Contact Diameter: Φ3.6mm
- Waterproof Level : IP68 ;Rated Current / Voltage : 45A/ 380V; Test Voltage min : AC 1500V；Resistance: 0.5mΩ
- Easy and simple to operating,small bulk,light weight complete specification
- Size: 4 Pin
Product specifics
- Brand: DRRI
- Category: Connectors
- Size: 4 Pin
