Description
Details

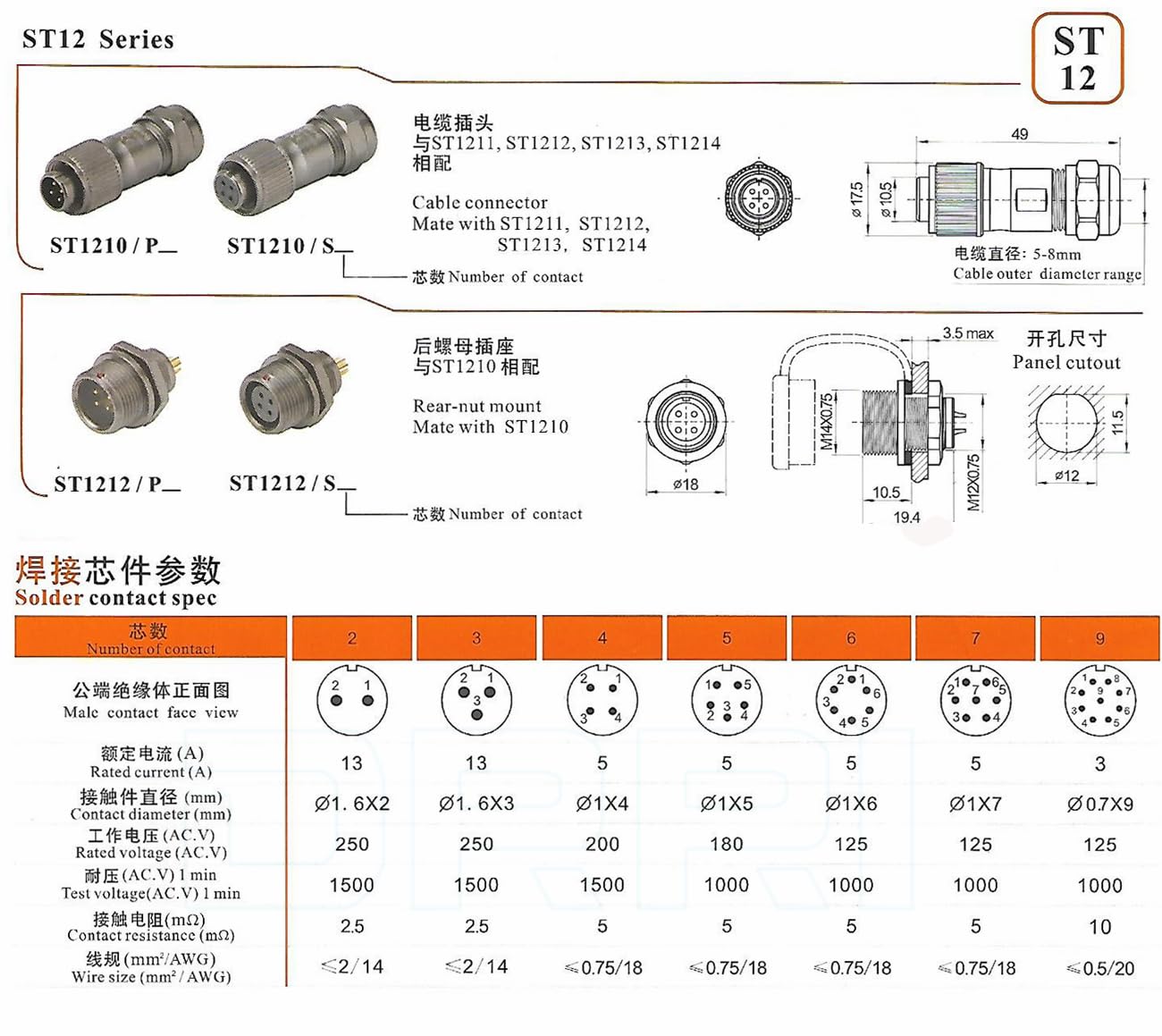

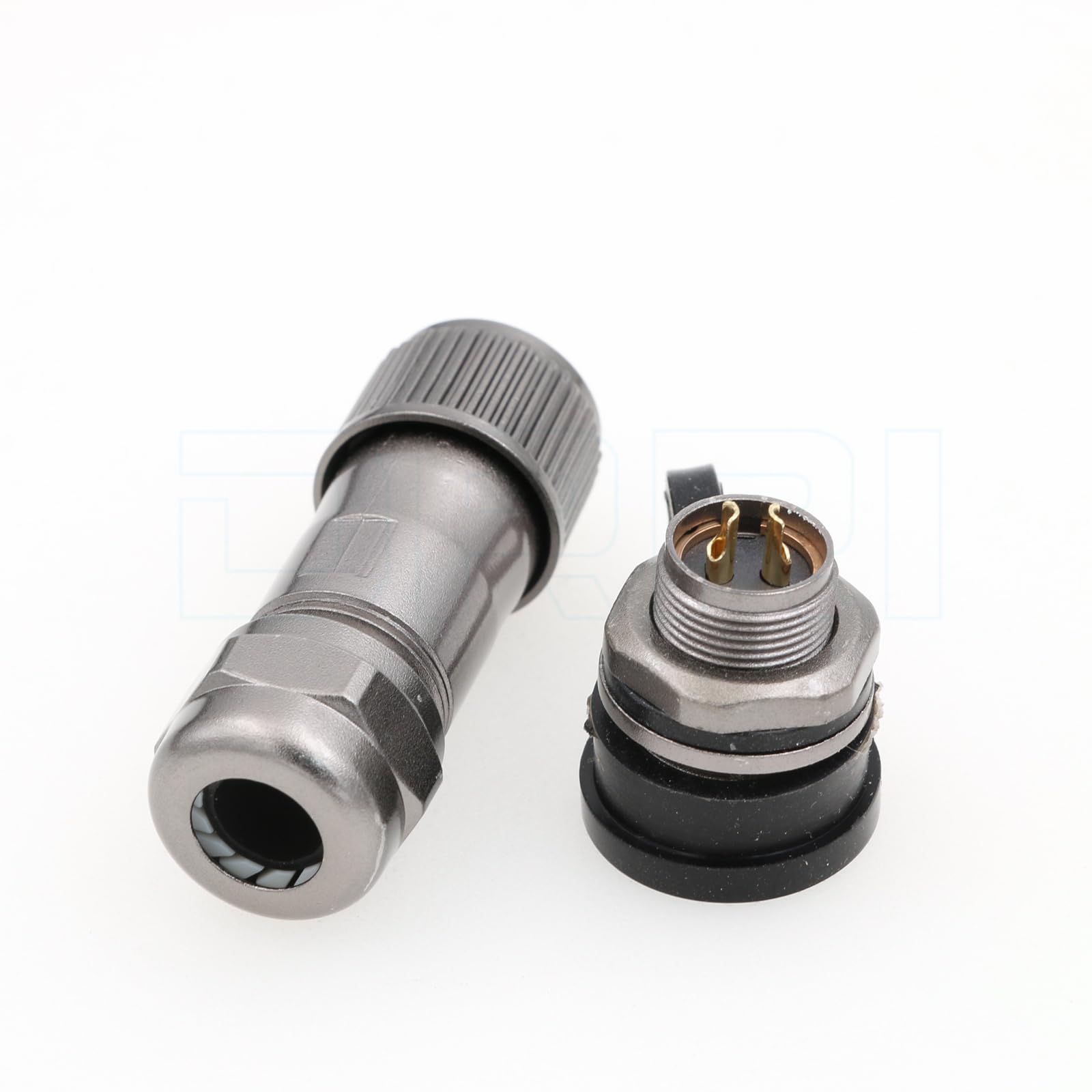

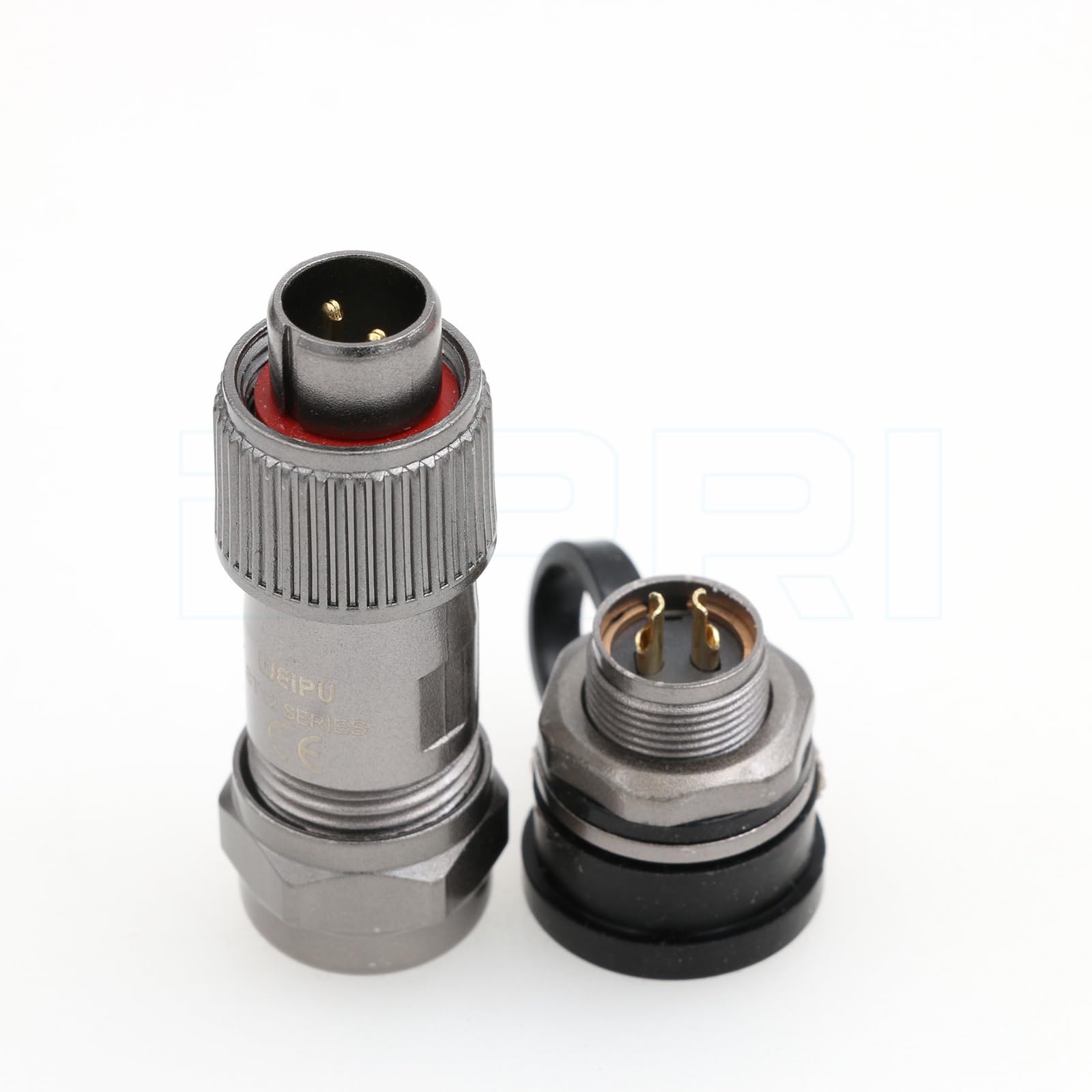

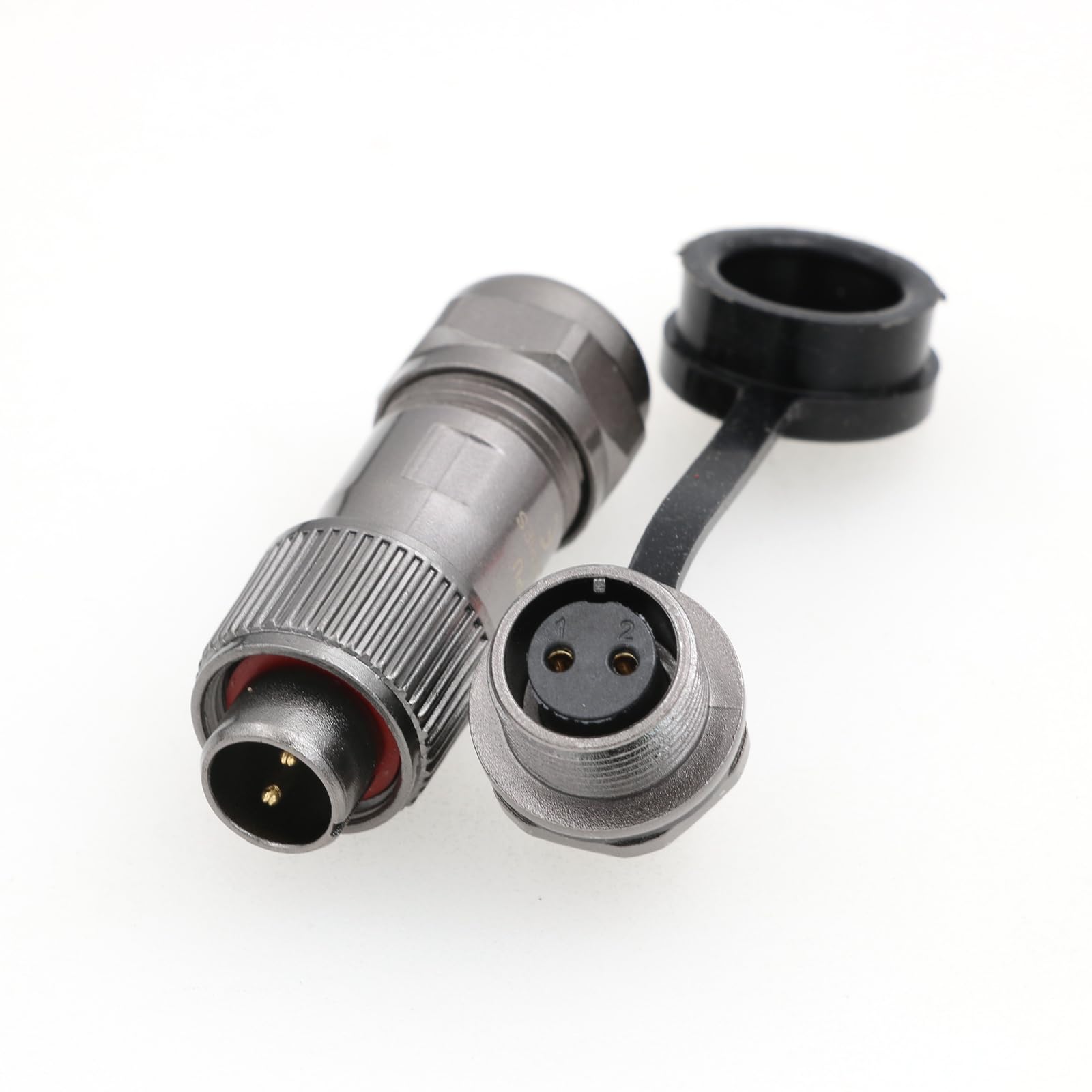

DRRI Weipu ST1210P ST1212S 2Pin Aviation waterproof Electric Metal Threaded Coupling Cable connector for Lighting systems: Rated Current / Voltage : 13A / AC 250V;Withstand Voltage : AC 1500V;Pin Quantity :2Pin;Contact Diameter: Φ1.6,Contact resistance: 2.5mΩ ;Wire Size: ≤2mm² /14 AWG. Features:Threaded coupling Aviation Connector Plug Socket ST12; Zinc alloy with black nicket plating Shell material;Insert material:PPS,max temperature 260℃.
Key features
- Rated Current / Voltage : 13A / AC 250V;Withstand Voltage : AC 1500V;Pin Quantity :2Pin;Contact Diameter: Φ1.6,Contact resistance: 2.5mΩ ;Wire Size: ≤2mm² /14 AWG
- Features:Threaded coupling Aviation Connector Plug Socket ST12; Zinc alloy with black nicket plating Shell material;Insert material:PPS,max temperature 260℃
- Termination:Solder;Cable outer diameter range:5-8mm,IP range:IP67 Temperature range:-40℃~ 85℃;Insulation resistance:2000MΩ;Mating cycle:500; Contact material:Brass with gold plating
- Material: Zinc
- Colour: Black
Product specifics
- Brand: DRRI
- Category: Electrical Wire
- Size: 2 Pin 13A
- Colour: Black
- Material: Zinc
