Description
Details

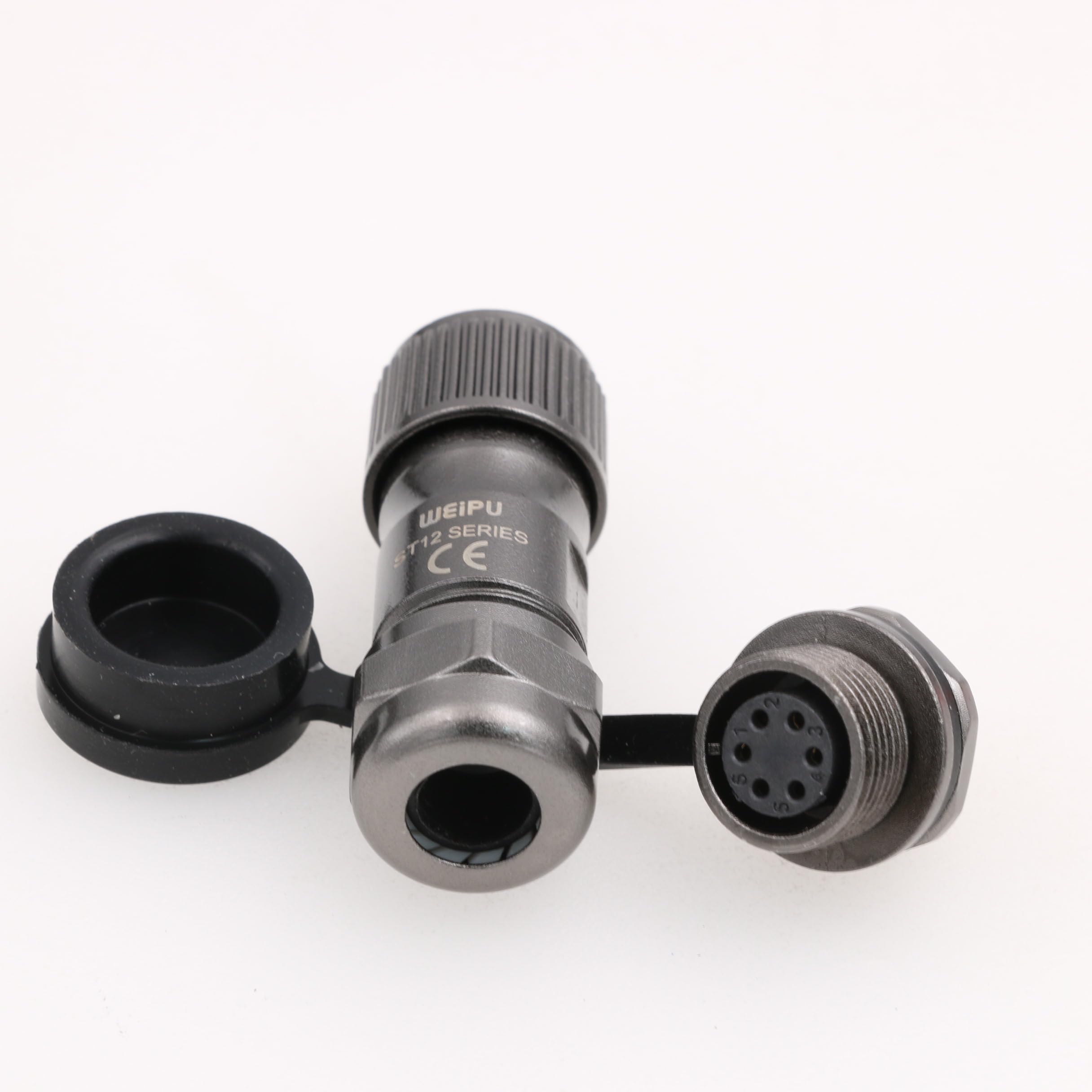

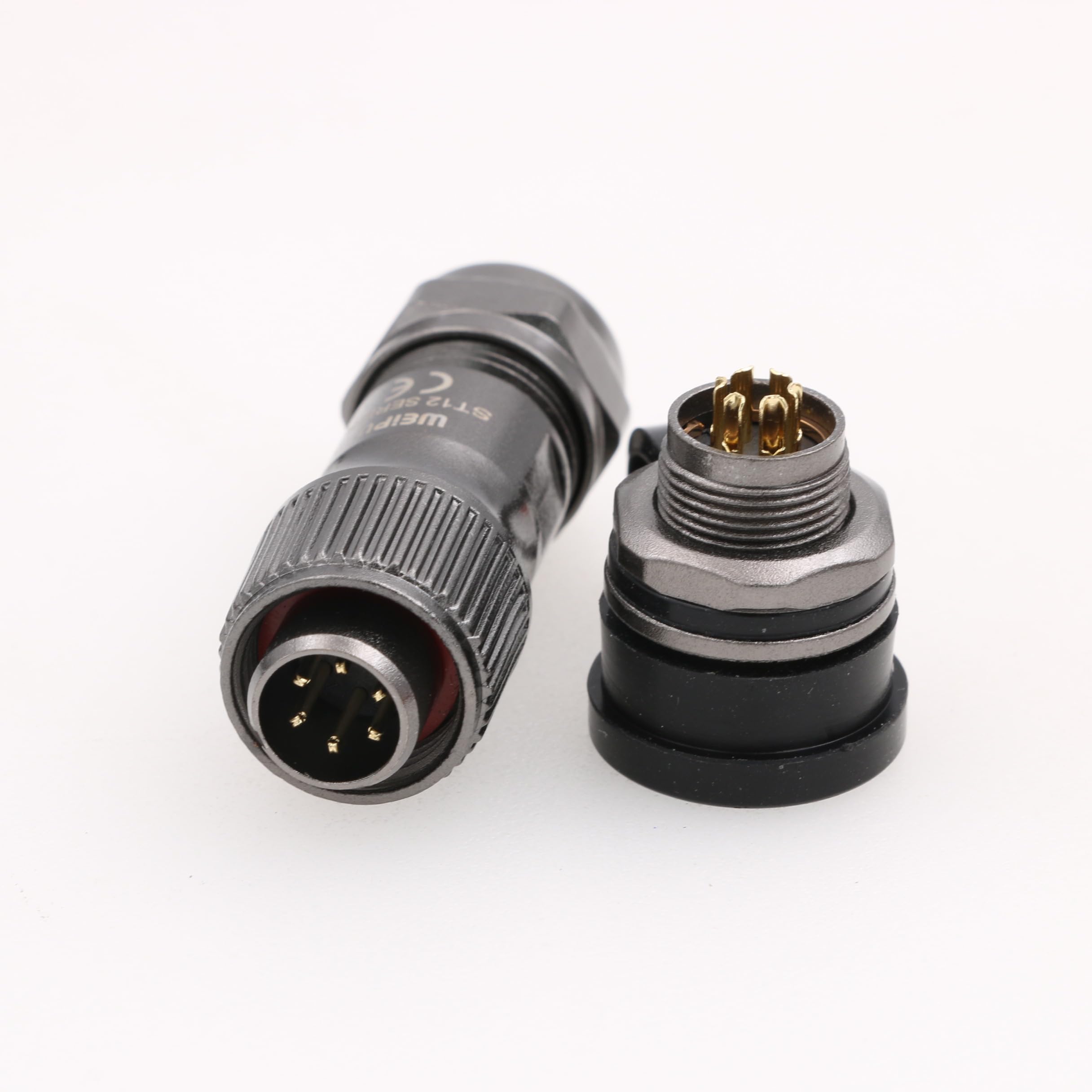

DRRI Weipu ST1210P ST1212S 6Pin Aviation waterproof Electric Metal Threaded Coupling Cable connector for Lighting systems: Rated Current / Voltage : 5A / AC 125V;Withstand Voltage : AC 1000V;Pin Quantity :6Pin;Contact Diameter: Φ1,Contact resistance: 5mΩ ;Wire Size: ≤0.75mm² /18 AWG. Features:Threaded coupling Aviation Connector Plug Socket ST12; Zinc alloy with black nicket plating Shell material;Insert material:PPS,max temperature 260℃.
Key features
- Rated Current / Voltage : 5A / AC 125V;Withstand Voltage : AC 1000V;Pin Quantity :6Pin;Contact Diameter: Φ1,Contact resistance: 5mΩ ;Wire Size: ≤0.75mm² /18 AWG
- Features:Threaded coupling Aviation Connector Plug Socket ST12; Zinc alloy with black nicket plating Shell material;Insert material:PPS,max temperature 260℃
- Termination:Solder;Cable outer diameter range:5-8mm,IP range:IP67 Temperature range:-40℃~ 85℃;Insulation resistance:2000MΩ;Mating cycle:500; Contact material:Brass with gold plating
- Size: 6 Pin 5A
Product specifics
- Brand: DRRI
- Category: Electrical Wire
- Size: 6 Pin 5A
