Description
Energy saving
The ESP32 is a chip designed with TSMC technology for extremely low power consumption (ultra-low power management), allowing for the best power and performance with its high efficiency.
As the quiescent current of the ESP32 chip is less than 5 μA it is particularly suitable for use with batteries or rechargeable batteries
Compatible

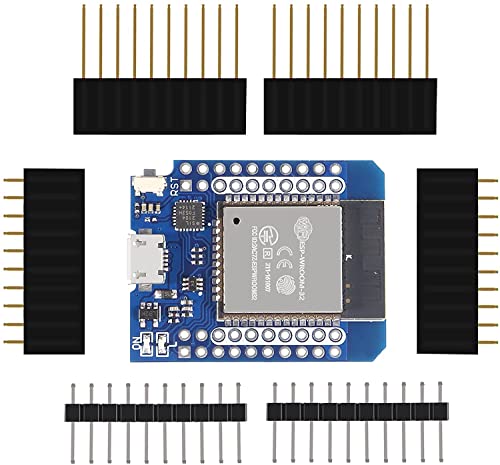

It has a similar pin layout to the conventional Mini ESP8266-12F and is therefore pin-compatible with most accessories for it.
Parameter
Power supply voltage (USB) 5V DC
Input/Output voltage 3.3V DC
Operating current min. 500mA
CPU Xtensa single-dual-core 32-bit-LX6
RAM 512kB

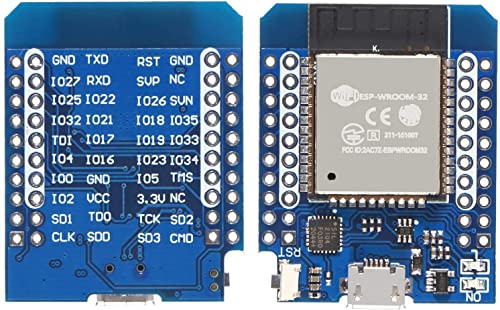

I/O Pins 34
ADC channels 18
ADC Resolution 12-bitCommunications interfaces SPI, I2C, CA
DAC channels 2
DAC Resolution 8-bit
N, UART
Max current drawn per GPIO pin 40mA
WiFi protocols 802.11 b/g/n (802/11n up to 150 Mbps)
