Description
Details

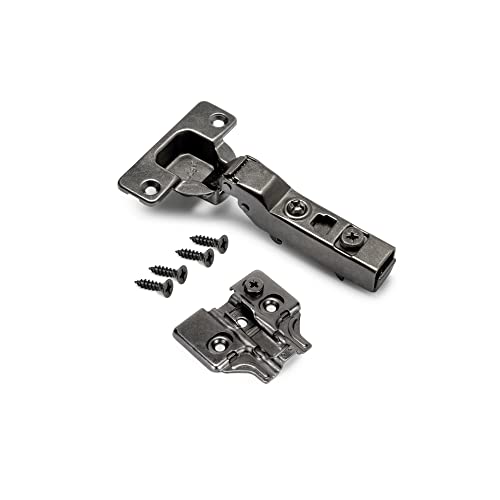

Emuca – Kit of Half Overlay Hinge X91 with Soft Close and Screw-on Plate, 105º Opening, Titanium, Steel, 20 ut: X91 half overlay hinge. Fastening for screwing. Concealed hinge with a diameter of 35 mm. 105º Opening. It has a cushioning piston for soft closing of the door. Automatic system for clip assembly of the hinge to the plate. Door thickness of 14 to 24 mm. Can be adjusted three-dimensionally.
Key features
- X91 half overlay hinge. Fastening for screwing. Concealed hinge with a diameter of 35 mm. 105º Opening
- It has a cushioning piston for soft closing of the door. Automatic system for clip assembly of the hinge to the plate. Door thickness of 14 to 24 mm. Can be adjusted three-dimensionally

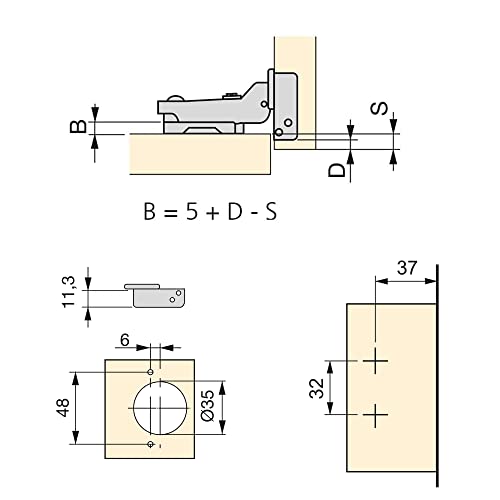

- Drilling range of the concealed hinge D = 3 ~ 7 mm. Depth adjustment via eccentric screw. Spring for both closing and opening
- Material: Alloy Steel Titanium
- Colour: Titanium
Product specifics
- Brand: Emuca
- Category: Hinges
- Size: Screw-on supplement
- Colour: Titanium
- Material: Alloy Steel Titanium
- Model: 1011452
- Part number: 1011452
