Description
Details

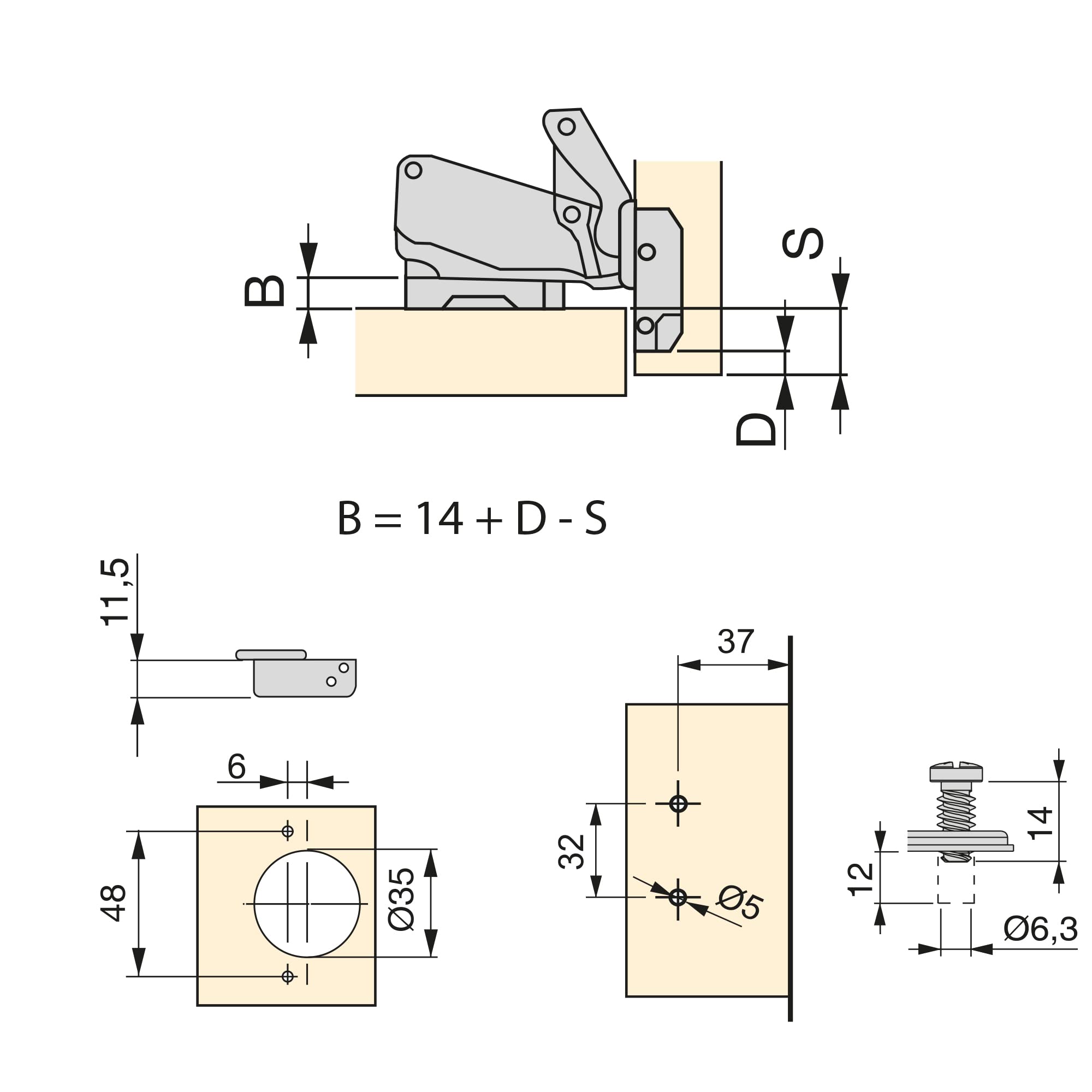

Emuca – Straight Hinge X91, D. 35 mm, Full Overlay, Soft Close, 165º Opening, Euro Screw, Titanium, Steel, 10 pcs: X91 full overlay hinge Fastening for screwing. Concealed hinge with a diameter of 35 mm. 165º Opening. It has a cushioning piston for soft closing of the door. Automatic system for clip assembly of the hinge to the plate. Door thickness of 14 to 26 mm. Can be adjusted three-dimensionally.
Key features
- X91 full overlay hinge Fastening for screwing. Concealed hinge with a diameter of 35 mm. 165º Opening
- It has a cushioning piston for soft closing of the door. Automatic system for clip assembly of the hinge to the plate. Door thickness of 14 to 26 mm. Can be adjusted three-dimensionally
- Drilling range of the concealed hinge D = 3 ~ 7 mm. Depth adjustment via eccentric screw. Spring for both closing and opening. X91 Plate
- Material: Alloy Steel Titanium
- Colour: Titanium (10 Un)
Product specifics
- Brand: Emuca
- Category: Hinges
- Size: Euro Supplement
- Colour: Titanium (10 Un)
- Material: Alloy Steel Titanium
- Model: 1013052
- Part number: 1013052
