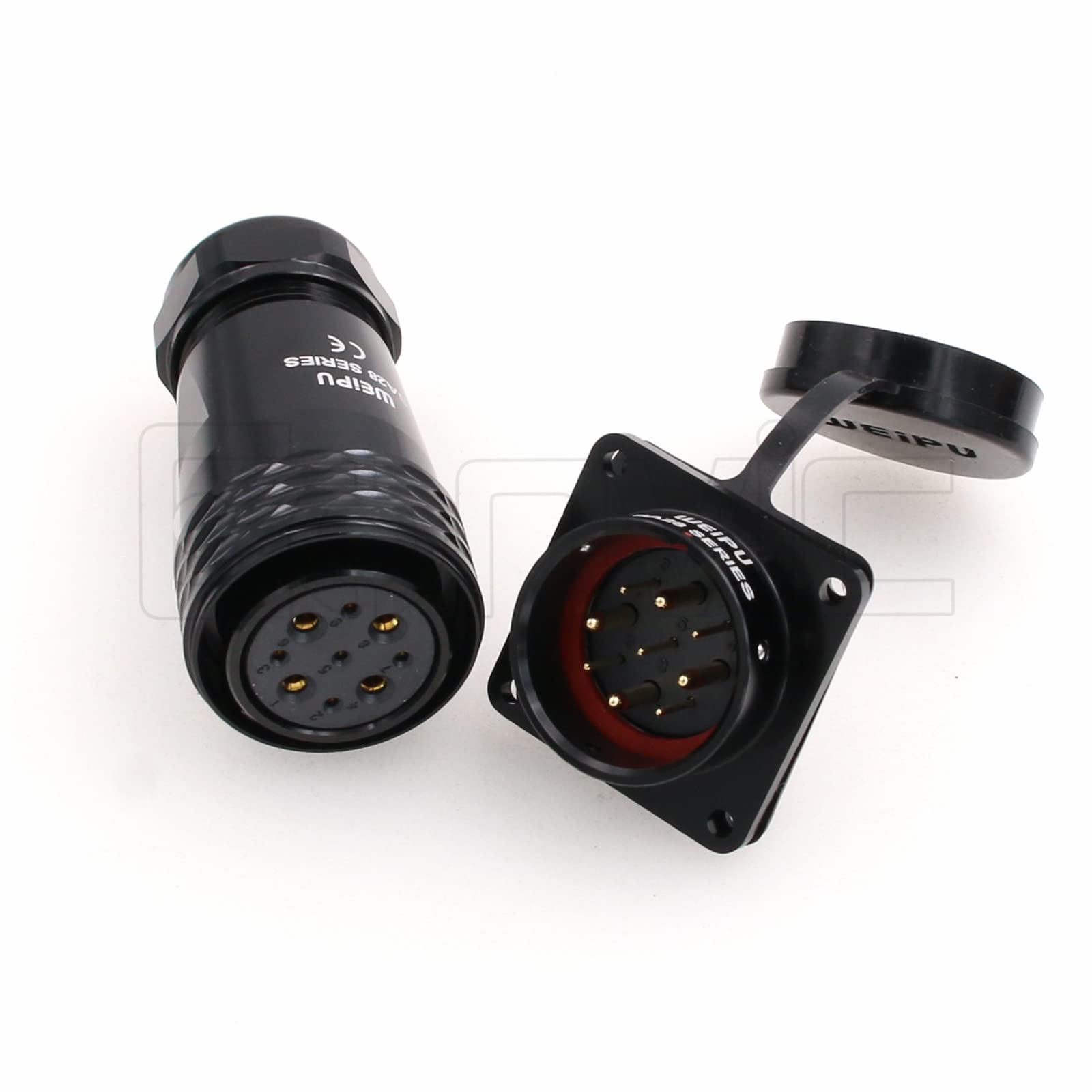

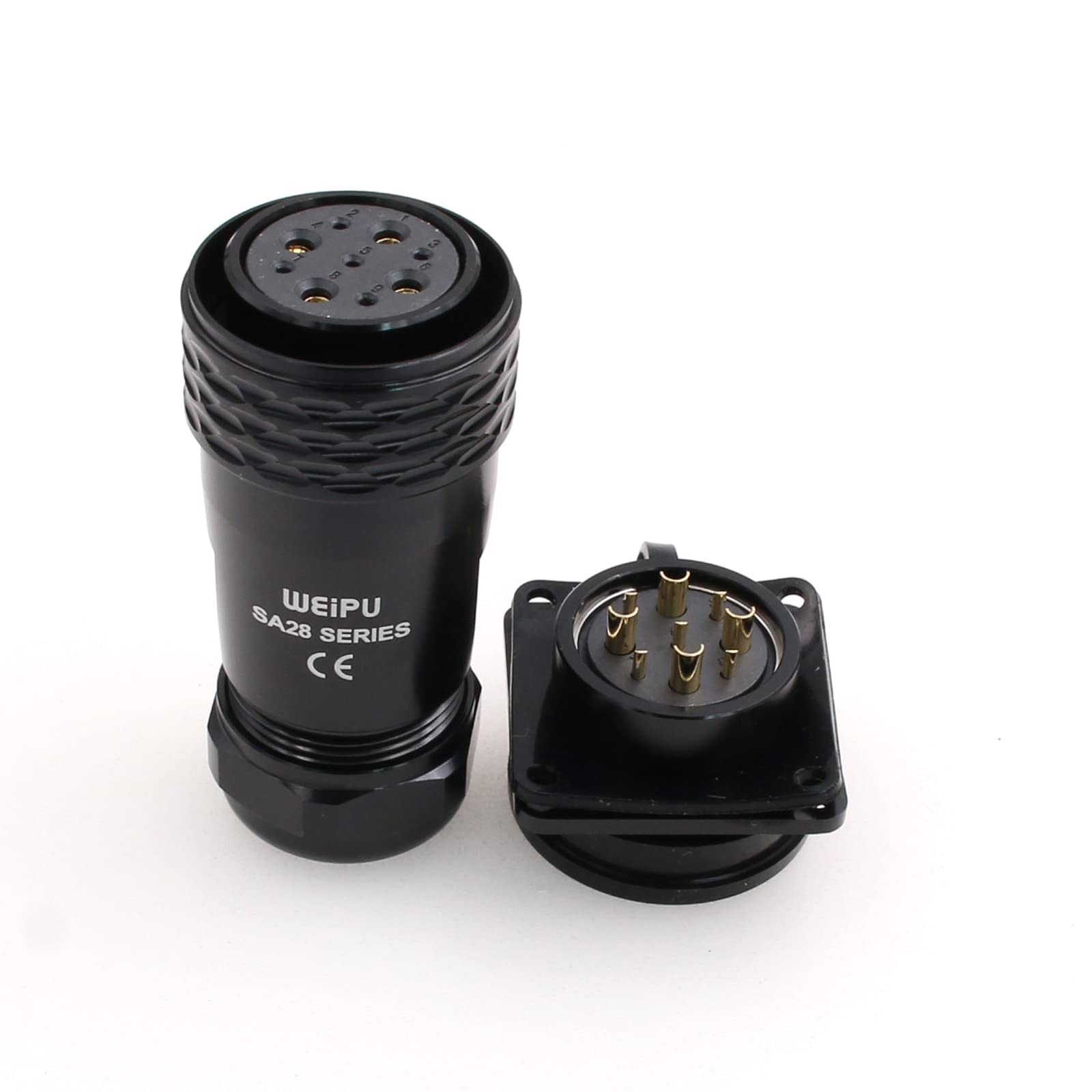

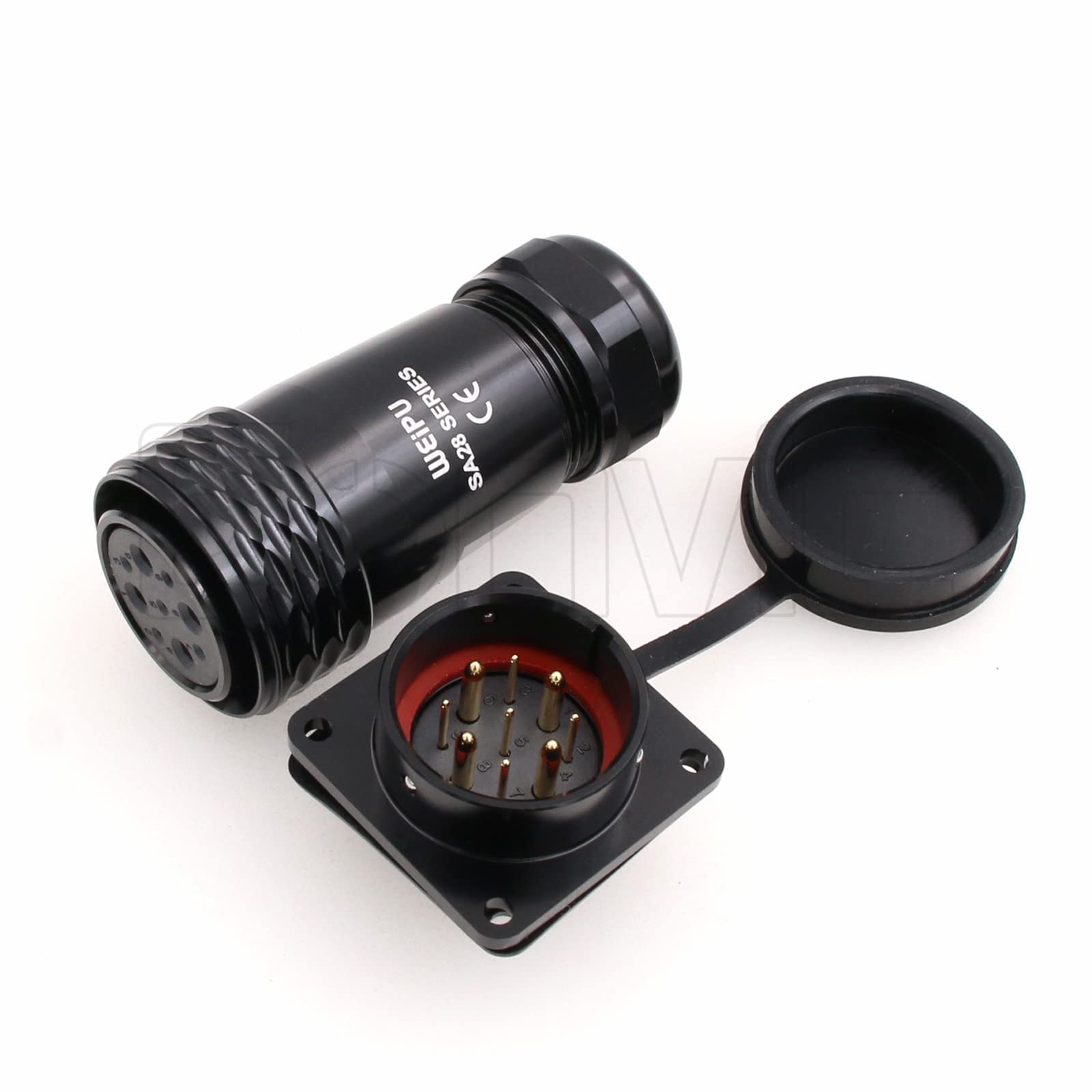

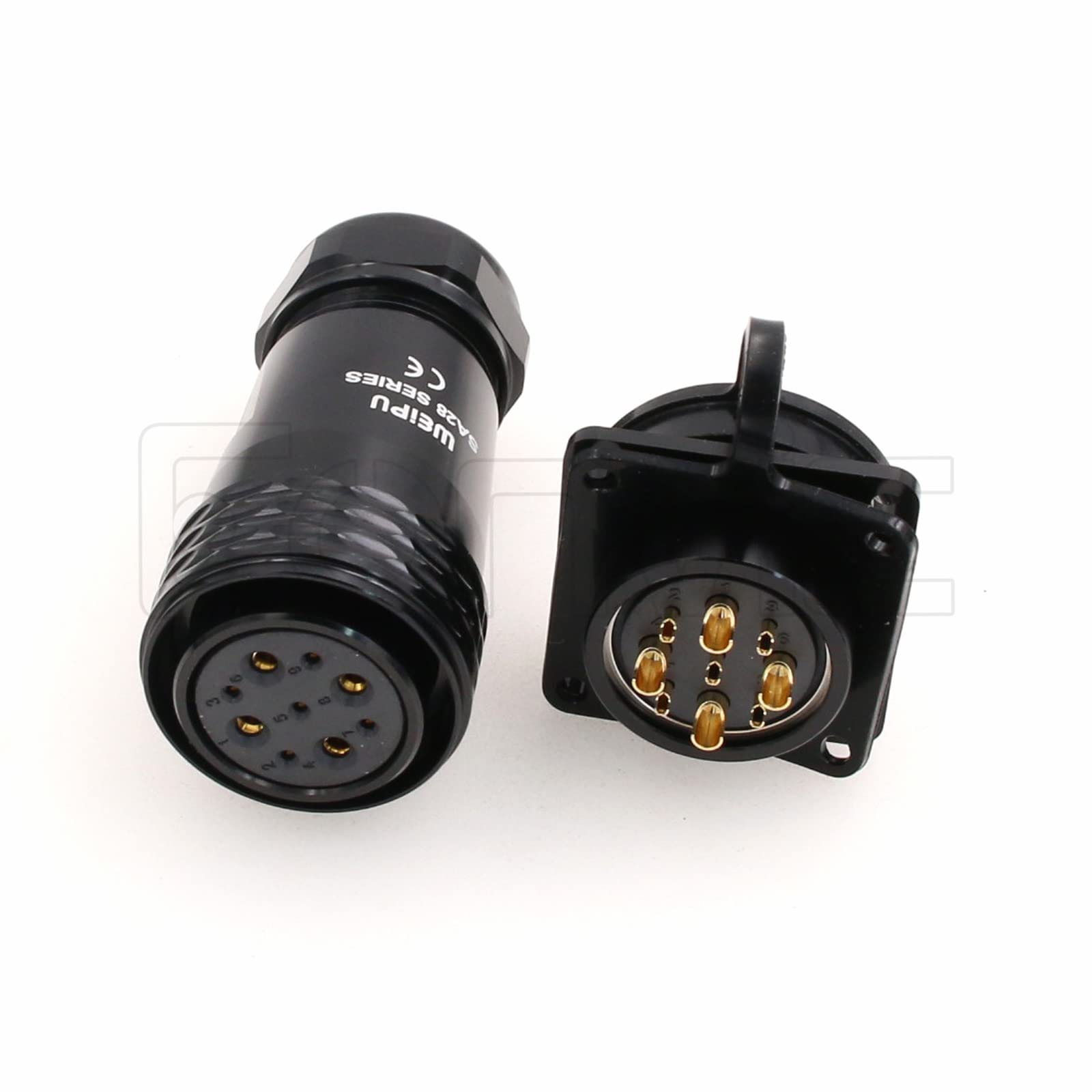

Eonvic SA28 25A 9Pin Connector Panel Mount M28 Waterproof Plug Female Socket Male Industrial Electrical Wire Connector: SA28 Connector. Cable outer diameter range 13-16mm. SA28 9pin Waterproof Connector. Wire Size: ≤4mm² or 11AWG, Contact Diameter: Φ2.5. Rated Voltage/Current: AC 500V/25A, Resistance: 1mΩ. Test voltage: 1500V.
Key features
- SA28 Connector. Cable outer diameter range 13-16mm
- SA28 9pin Waterproof Connector. Wire Size: ≤4mm² or 11AWG, Contact Diameter: Φ2.5. Rated Voltage/Current: AC 500V/25A, Resistance: 1mΩ. Test voltage: 1500V
- Coupling: Push-pull; Shell material: Anodized aluminium; Insert material: PPS,max temperature 260 ℃; Contact material : Brass with gold plating
- Size: 9 Pin
Product specifics
- Brand: EONVIC
- Category: Connectors
- Size: 9 Pin
