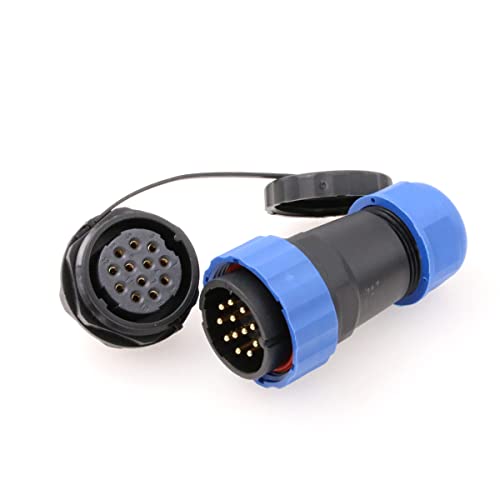

Eonvic SD28 Aviation Plug Socket 28mm 12Pin IP68 Waterproof Connector 10A 380V Industrial Panel Mount Aviation Cable Connector: SD28 Waterproof Connector; 12Pin Plug and Socket Aviation connector; Panel Thread Diameter: 28mm. Protection Level: IP68. Rated Current: 10A,Rated Voltage: 380V.Withstand Voltage : AC 1500V. Insulation resistance: 2000mΩ.
Key features
- SD28 Waterproof Connector; 12Pin Plug and Socket Aviation connector; Panel Thread Diameter: 28mm
- Protection Level: IP68. Rated Current: 10A,Rated Voltage: 380V.Withstand Voltage : AC 1500V. Insulation resistance: 2000mΩ
- Contact diameter: φ1.8mm *12; Max wire size: 1.5mm=AWG14; Cable diameter: φ12-15mm
- Material: gold
Product specifics
- Brand: EONVIC
- Category: Connectors
- Material: gold
- Model: sp29-1
- Part number: sp29-1
