Description

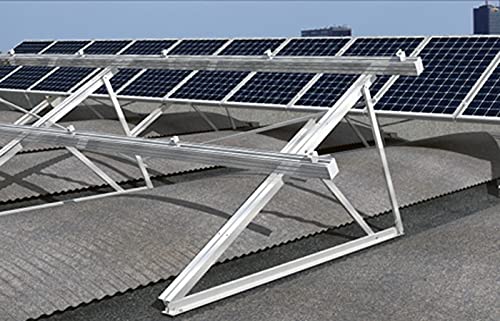

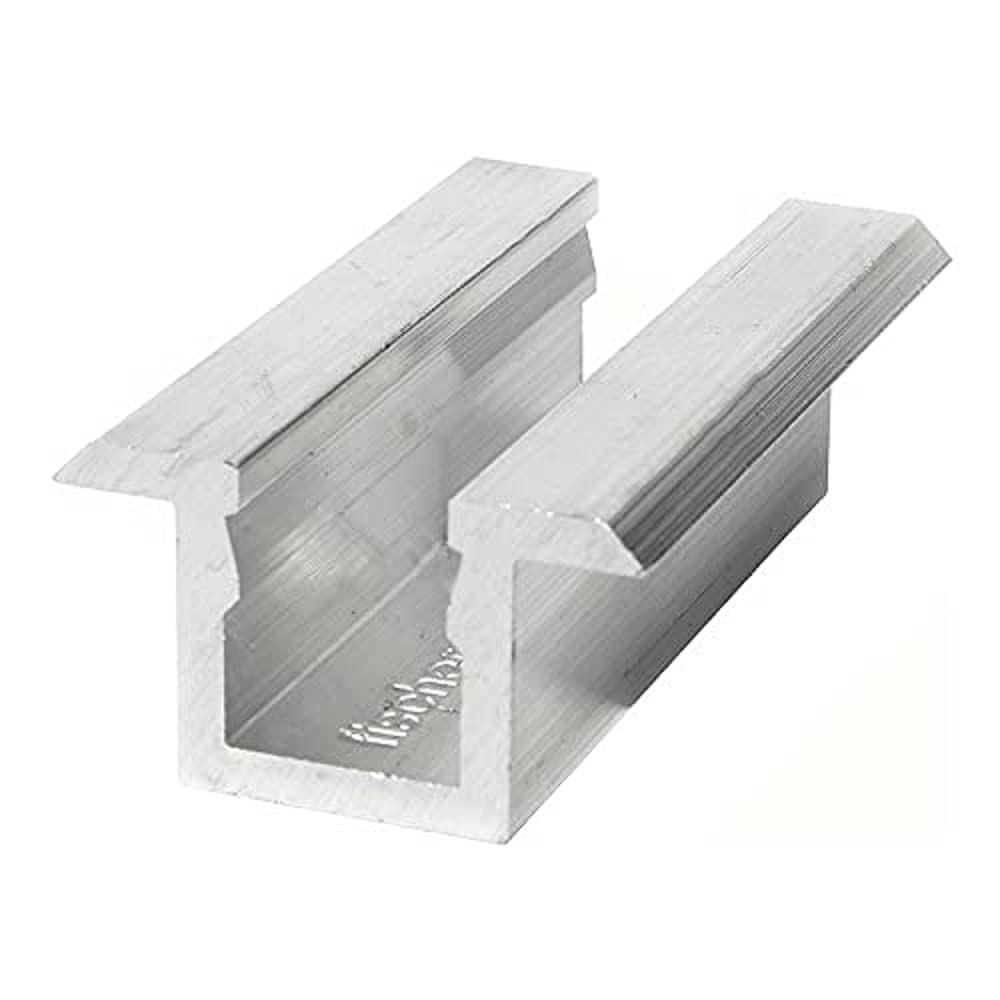

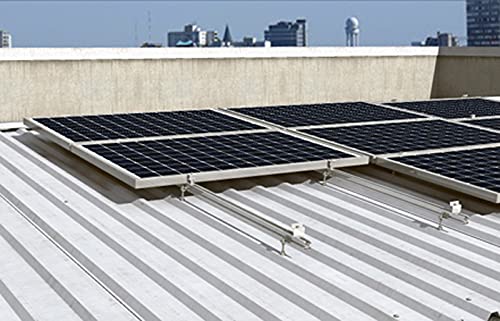

Clamp not assembled M; clamps not assembled in aluminium; advantages: full range: the unassembled clamps M C and M F can fix all photovoltaic modules with frame thickness from 28 mm to 50 mm; versions; M C and M F aluminium alloy AW 6060 T66 according to EN 755-2:2013; applications: To fix photovoltaic modules on profiles: Solar-light; solar-fish; solar-mid; solar-flat; solar 40/30; operation: Locate the height of the photovoltaic module and choose the cylindrical head screw with suitable TCEI hexagonal recess; assemble the clamp M C and M F to the FCN AL nut using cylindrical head with TCEI hexagonal recess; insert the hammer head nut of the clamps so assembled into the upper wheel profile and clockwise 90°; lock the photovoltaic module by applying a tightening torque to the cylindrical head screw with TCEI hexagonal recessed about 10 Nm. (Optional) To protect the installation, insert the DAE anti-burglary ball into the hexagonal recess; Technical specifications: Weight: 0; Thread: 36; Hook width: M 8; Inner diameter: D – [mm]: 10; Shelf width: 28/34 – 33/39 – 38/44 – 43/49 – 50/56; Seismic certification: 35/40/45/50/55; References: EAN: 800113271132711347; fisch47 er: 571134
