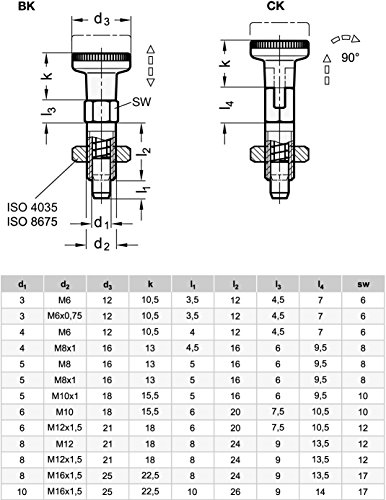

Ganter Standard Elements, Silver, Gewinde d2: M12x1,5: Locking path l1: 8 mm; thread length l2: 24 mm; bolt diameter d1: 8 mm; thread d2: M12x1.5; hex length l3: 9 mm. Box contents: 2 stainless steel locking bolts.
Key features
- Locking path l1: 8 mm; thread length l2: 24 mm; bolt diameter d1: 8 mm; thread d2: M12x1.5; hex length l3: 9 mm
- Box contents: 2 stainless steel locking bolts
- Shape CK: with locking lock, with locking nut
- Material: Stainless Steel
- Colour: Silver
Product specifics
- Brand: Ganter Normelemente
- Category: Lock Bolts
- Size: Gewinde d2: M12x1,5
- Colour: Silver
- Material: Stainless Steel
- Model: GN 717-8-M12X1,5-CK-NI
- Part number: GN 717-8-M12X1,5-CK-NI
