Description
Details

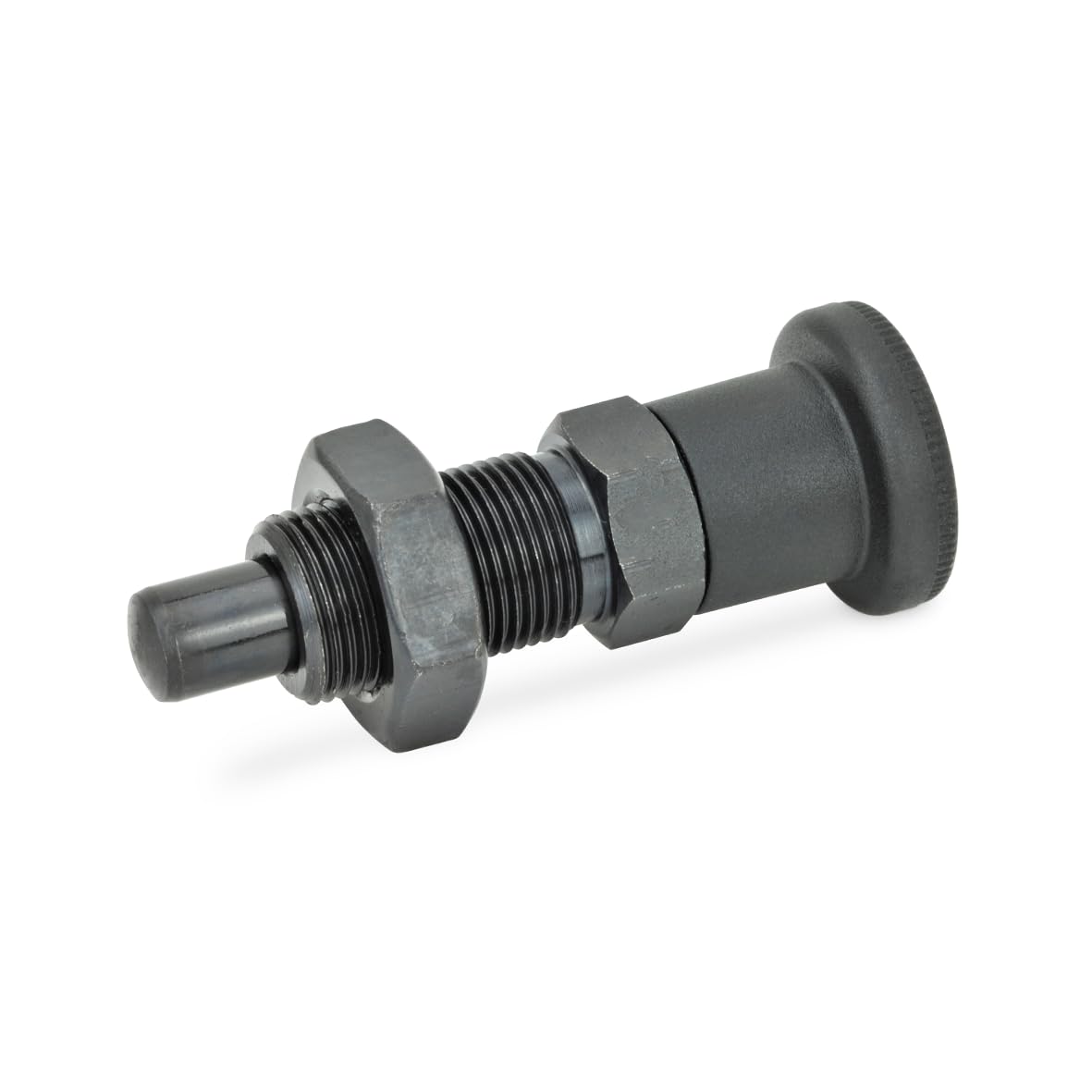

Ganter Standard, Black, Bolzendurchmesser: 4mm; Rastweg: 4mm: Form BK: without locking lock, with lock nut. Locking distance L1: 4 mm; length l2: 35 mm; bolt diameter d1: 4 mm; thread d2: M8x1; thread length l3: 16 mm.
Key features
- Form BK: without locking lock, with lock nut
- Locking distance L1: 4 mm; length l2: 35 mm; bolt diameter d1: 4 mm; thread d2: M8x1; thread length l3: 16 mm
- Spring pressure in N: 4.5 (start) – 12 (end)
- Material: Alloy Steel
- Colour: Black
Product specifics
- Brand: Ganter Normelemente
- Category: Latches & Bolts
- Size: Bolzendurchmesser: 4mm; Rastweg: 4mm
- Colour: Black
- Material: Alloy Steel
- Model: GN 817-4-4-BK
- Part number: GN 817-4-4-BK
