Description
Product Specifications:

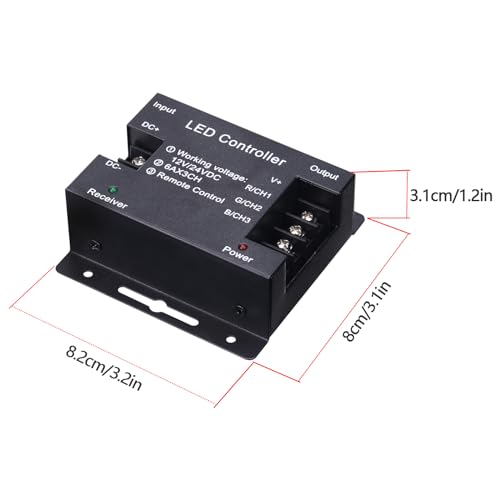

Product name:RF28K-TK LED RGB Controller
Working temperature:-20-60℃
Input Voltage：DC 12-24V
Static power consumption: <0.5W
Output Current：<6A/CH max18A
Output power: Max: 12V<216W,24V<432W

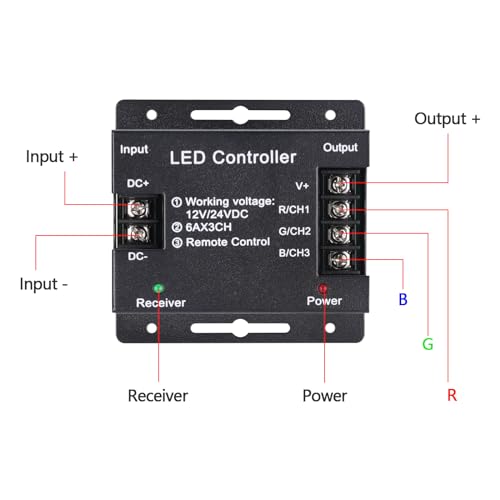

Note:Please according to the actual controller's wire sequence to corresponding led lights,just make sure the arrows of controller and light are inserted accordingly.
Attention：
1,Controller's input voltage is DC 12V-24V,never connect to others or AC220V,Please do not overload,the total max output current is 18A.

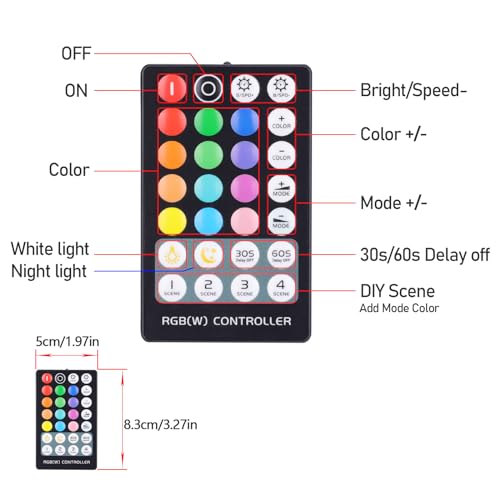

2,Before using the infrared remote ,the insulating film should removed.
3,Please do not reverse the power input connection of both cathode and anode,please switch on again only when it is in right connection and no short circuit.
4,Please power off the device if you do not use it for a quit long time,do not place in high dust,high temperature environment.
