Description

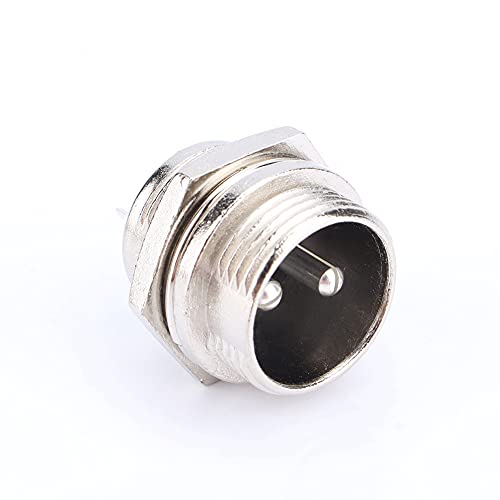

l GX16 air plug socket
– This gx16 connector is made of soild material, more durable

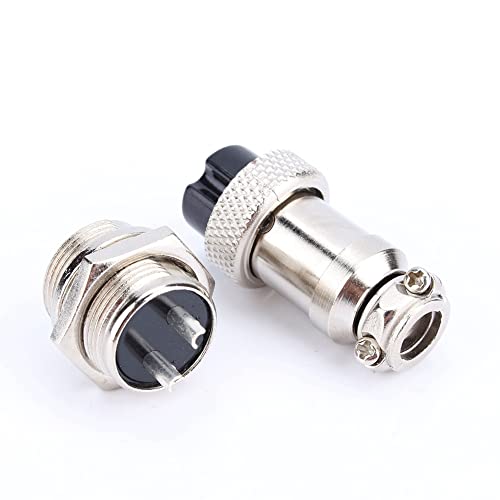

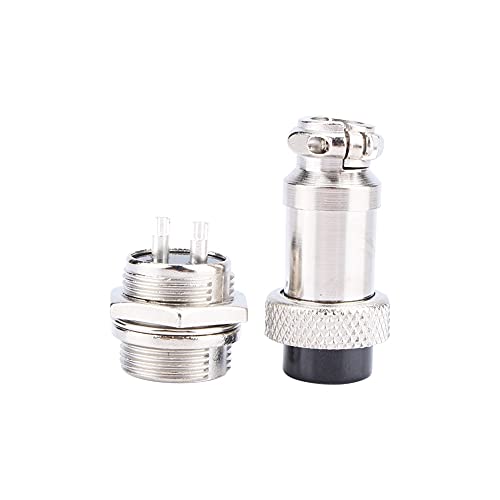

– One set which includes one male and one female Connector
Specifications:
– Voltage: 2pin 400V
– Current: 5A
– Environment Temperature: -50~+70℃
– Relative Humidity: The temperature is + 40 ℃ could reach 98%
– Insulation Resistance: Normal conditions no less than 1000 m Ω, Not less than 20 m Ω after the constant temperature test
– Testing Voltage: (50 Hz, RMS) Normal conditions 1500V,After constant temperature test 1200V
– Atmospheric Pressure: 4, 4 kpa
– Vibration: frequency is 10 ~ 100 Hz, accelerated speed is 100 m/s2
– Impact: Frequency is 60 ~ 80 times/min, the acceleration is 250 m/s2
– Centrifugal: Acceleration is 250 m/s2
– Type: 2 pin
– Material: Metal
– Color: silver
– Size: 45mm x 19mm/ 1.8″ x 0.8″
Package Includes: 1 Set GX16 2 Pin Screw Type Electrical Aviation Plug Socket Connector
