Description
Descripition:

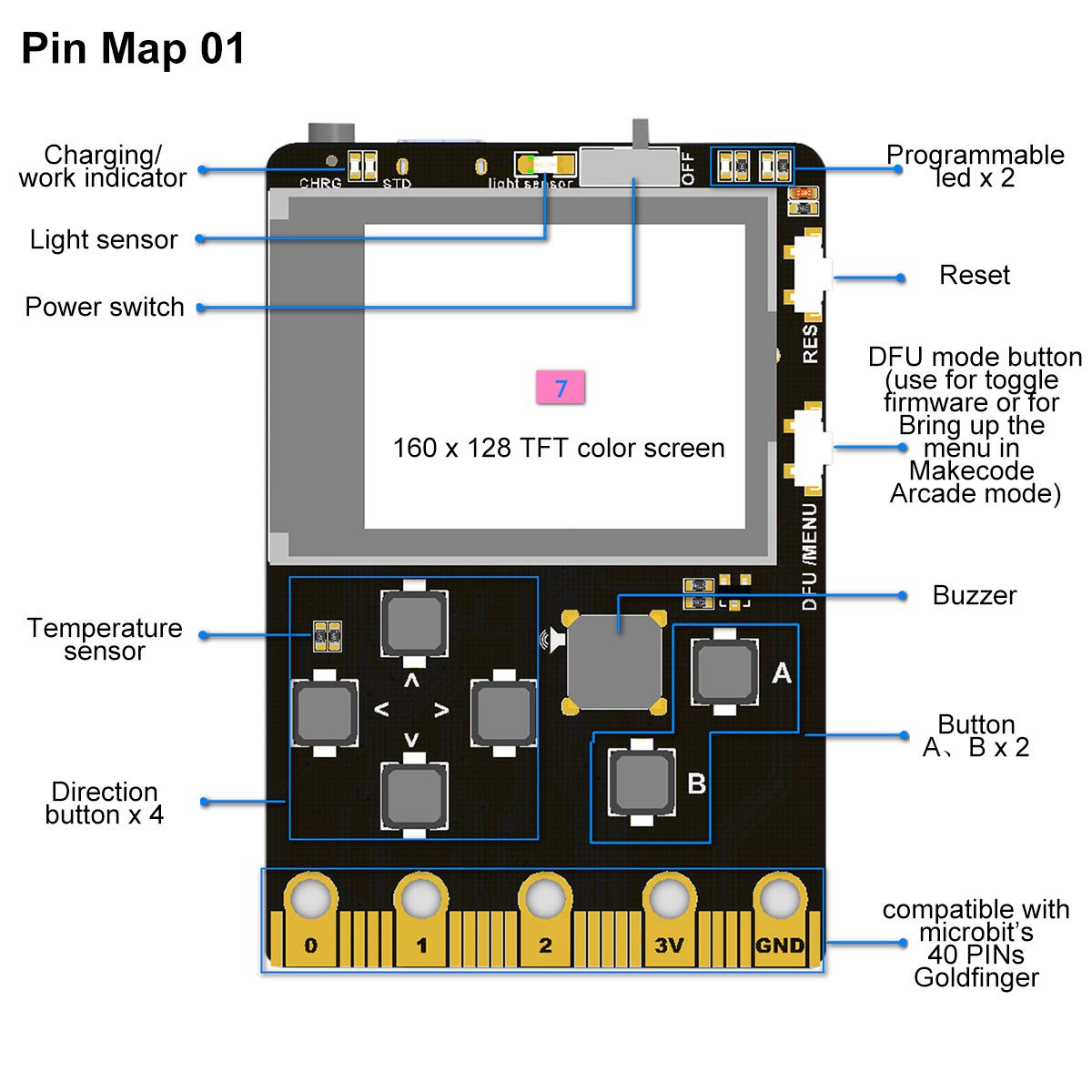

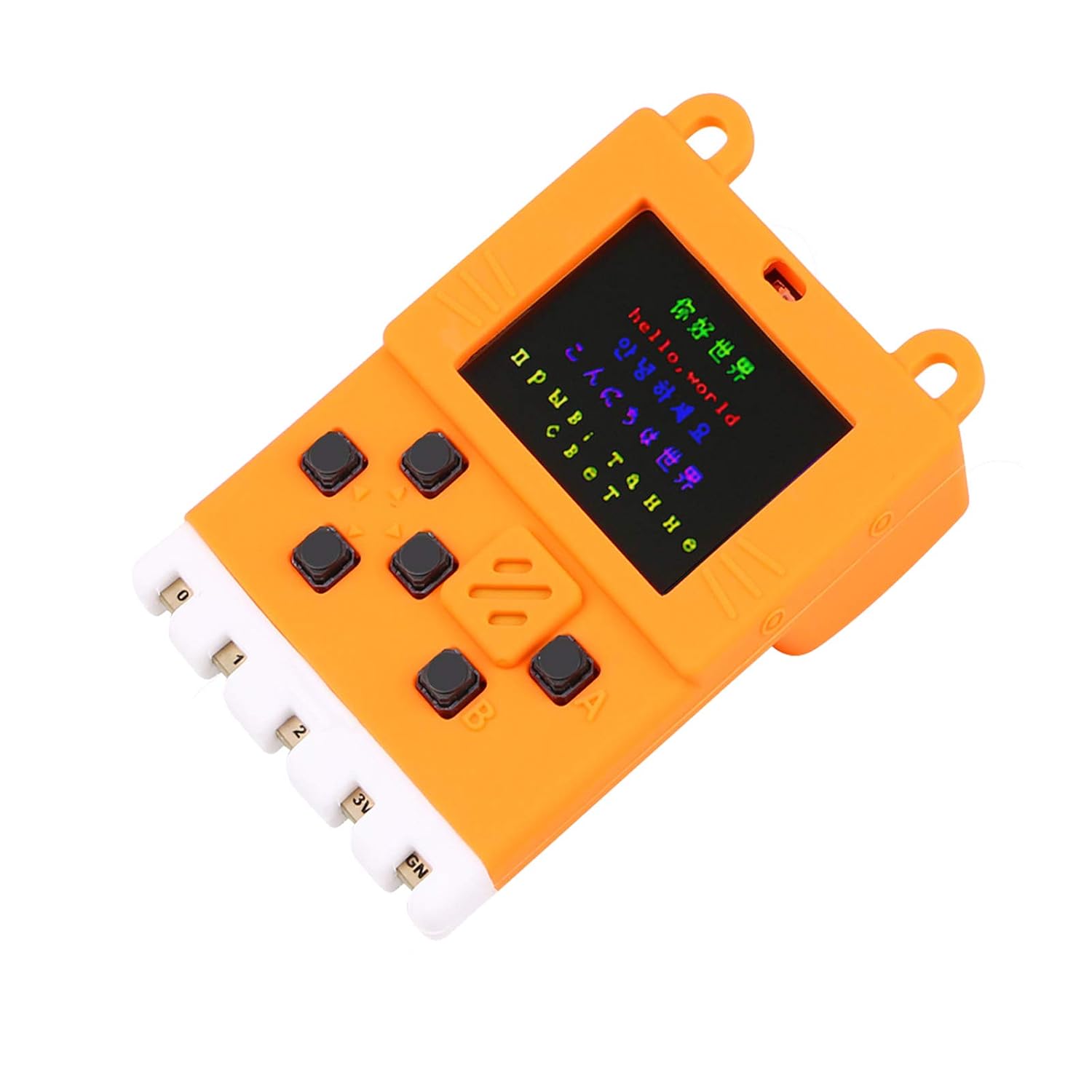

Meowbit is a card-sized graphical programming video game console designed for teenagers. It contains 1.8′ full-color screen, 6 x programmable buttons ,1 x buzzer, built-in light sensor , temperature sensor, SD card slot (For external storage), multi-player connector and edge connector. Especially the edge connector could access most micro:bit expansion boards. We recommend to use Robot:bit for Mewobit, it can help you create a robot quickly.
Feature:
160 * 128 Full Color Screen
Graphical Gamification Programming
Spanning Function
Rich Onboard Resources
Support Multi-languauge
Support Picture Drawing
Multi-platform and Multi-mode Programming
Programming Feature:
The Meowbit Platform has it’s own Gamification Programming. It’s burnprocess is the same as Micro: bit. The interface contains a real-time simulator that allows you to run the program on the simulator without having to download the program verification repeatedly until it is satisfied and download it to the board for use.
Parameters:
MCU: STM32F401RET6, 32-bit ARM Cortex M4 core
Operating Voltage: 3.3V
Supply Voltage: USB (5 V)
Lithium battery Pack (3.7~4.2V)
Output current: 500 mA (max)
Dimensions: 52 x 76 x 12 mm
Available:
Windows 7 and above
macOS
Package Including
1 * Meowbit Programming Development board
1 * Orange Silicone Protective Case
1* Battery
