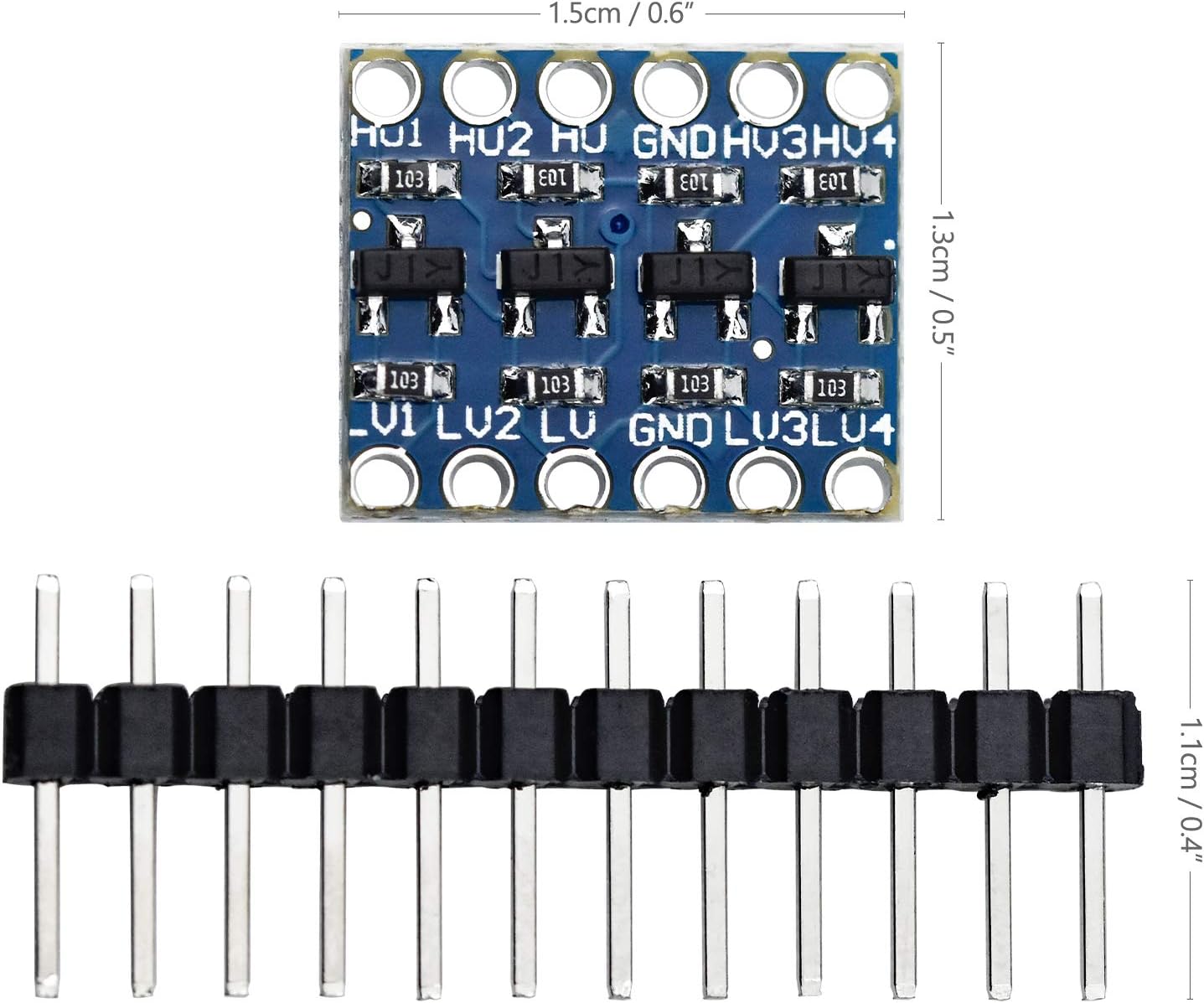

Hentek 10 Set 4 Channels Logic Level Converter IIC I2C Bi-Directional Shifter Module 3.3V to 5V for Arduino and Raspberry Pi
Hentek 10 Set 4 Channels Logic Level Converter IIC I2C Bi-Directional Shifter Module 3.3V to 5V for Arduino and Raspberry Pi - Image 2
Hentek 10 Set 4 Channels Logic Level Converter IIC I2C Bi-Directional Shifter Module 3.3V to 5V for Arduino and Raspberry Pi - Image 3
Hentek 10 Set 4 Channels Logic Level Converter IIC I2C Bi-Directional Shifter Module 3.3V to 5V for Arduino and Raspberry Pi - Image 4
Hentek 10 Set 4 Channels Logic Level Converter IIC I2C Bi-Directional Shifter Module 3.3V to 5V for Arduino and Raspberry Pi - Image 5

Hentek 10 Set 4 Channels Logic Level Converter IIC I2C Bi-Directional Shifter Module 3.3V to 5V for Arduino and Raspberry Pi

$0.00

  • Make sure this fits by entering your model number.
  • ❈ Compatible with the breadboard: The level converter is compatible with the breadboard, it can be placed directly on the breadboard
  • ❈ Stable communication baud rate: The highest stable communication baud rate is 28800 bps. Can realize bidirectional conversion of UART, IIC, 1-Wire, SPI and other bus signals 3V-5V level
  • ❈ Easy to use: The converter must be powered by the two power sources (high voltage and low voltage) used by your system. High voltage (e.g. 5V high voltage) on the “HV” spindle, low voltage (e.g. 3.3V) to “LV” and mass build-up of the system on the “GND” spindle.
  • ❈ High quality Each converter has the ability to convert 4 pins from top to 4 pins on the bottom, with two inputs and two outputs for each side.
  • ❈ High and low voltage supply: The bidirectional logic level converter is a small device that reduces the signals 5 V to 3.3 V and increases the voltage from 3.3 V to 5 V at the same time.

Out of stock

  • International Express shipping available
  • 30 day easy returns
Guaranteed Safe Checkout

Description

Properties: Channel: 4-channel Voltage: 3.3 V, 5 V The highest stable communication baud rate is 28800 bps. Transform a signal from 5V to 3.3V or from 3.3V to 5V Can be transmitted bidirectionally with 4 channels between high logic voltage and low logic voltage. How to use it: Take for example the high voltage (5V) and the low voltage (3.3V). 5V is connected to HV pin; 3.3 V are connected to the LV pin. System ground is connected to the GND pin. 100% satisfaction guarantee: We pride ourselves on offering the highest quality products. We offer a 100% MONEY BACK GUARANTEE! If for any reason you are not satisfied, we will immediately refund the purchase price. Delivery: 10 x 4 channels I2C logic level converter bi-directional module 20 x 6pin single line pin header

Additional information

Weight 0.02 kg
brand

Hentek
dimensions

‏
:
‎
9.3 x 6.8 x 1.6 cm; 20 Grams
SKU: B0869435QS Category: Tags: , , , ,
