Description

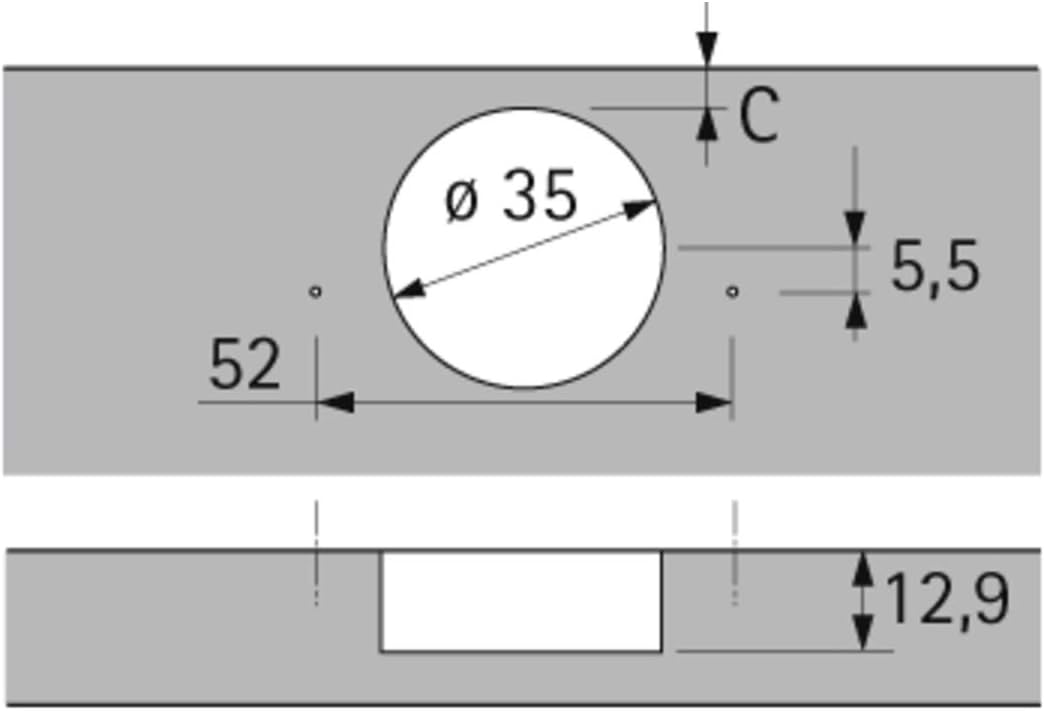

Sensys 110°- hinge with integrated Silent System (Sensys 8645i), nickel plated, overlay, Opening angle 110°, for screwing on (-) Concealed hinge with clip on installation and integrated Silent System Quality classification under EN 15570, Level 3 For door thickness of 15 – 24 mm Cup diameter 35 mm Cup depth 12.8 mm Integrated + 2 mm / – 2 mm overlay adjustment Integrated depth adjustment + 3 mm / – 2 mm Height adjustment at mounting plate Hinge arm material: steel, nickel plated Hinge cup material: steel, nickel plated
