Description

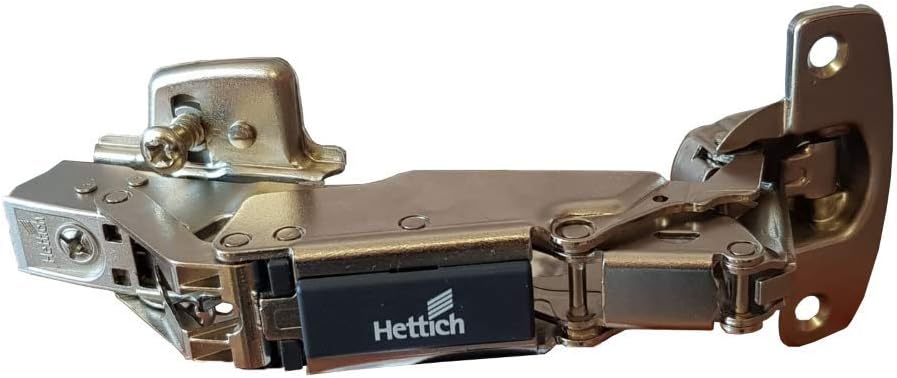

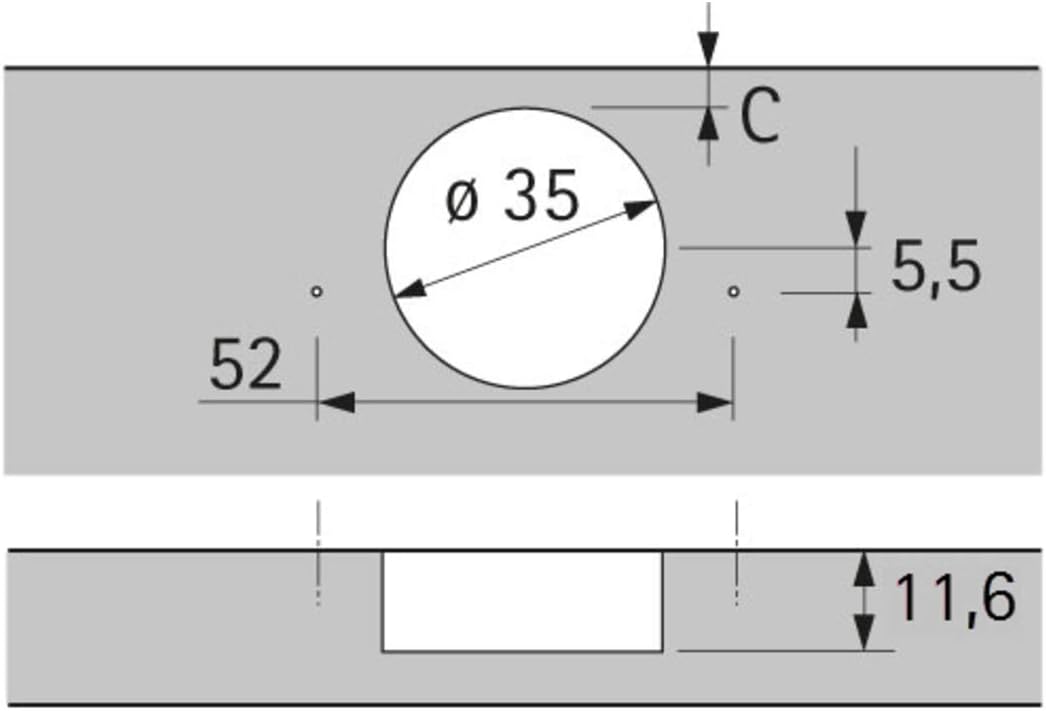

Sensys wide angle hinge, with zero protrusion, with integrated Silent System (Sensys 8657i), nickel plated, overlay, Opening angle 165°, drilling pattern TH 52 x 5,5 mm, for screwing on (-) Concealed hinge with clip on installation and integrated Silent System Quality classification under EN 15570, Level 3 For door thickness of 15 – 32 mm Cup diameter 35 mm Cup depth 11.6 mm Integrated + 2 mm / – 2 mm overlay adjustment Integrated depth adjustment + 3 mm / – 2 mm Height adjustment at mounting plate Opening angle can be reduced by means of optional accessory Zero protrusion hinge Hinge arm material: steel, nickel plated / nickel plated die-cast zinc Hinge cup material: steel, nickel plated
