Additional information
| Weight | 0.08 kg |
|---|---|
| Brand | ITAP SpA |
| EAN | 8023298023508 |
ITAP-FIT -IT640B012015- Brass Connector Angle for Copper Pipe Diameter 15 mm x 1/2 AG – DVGW
$0.00
- ITAP-FIT brass connector for copper pipe, angle: pipe diameter 15 mm x 1/2 inch male thread

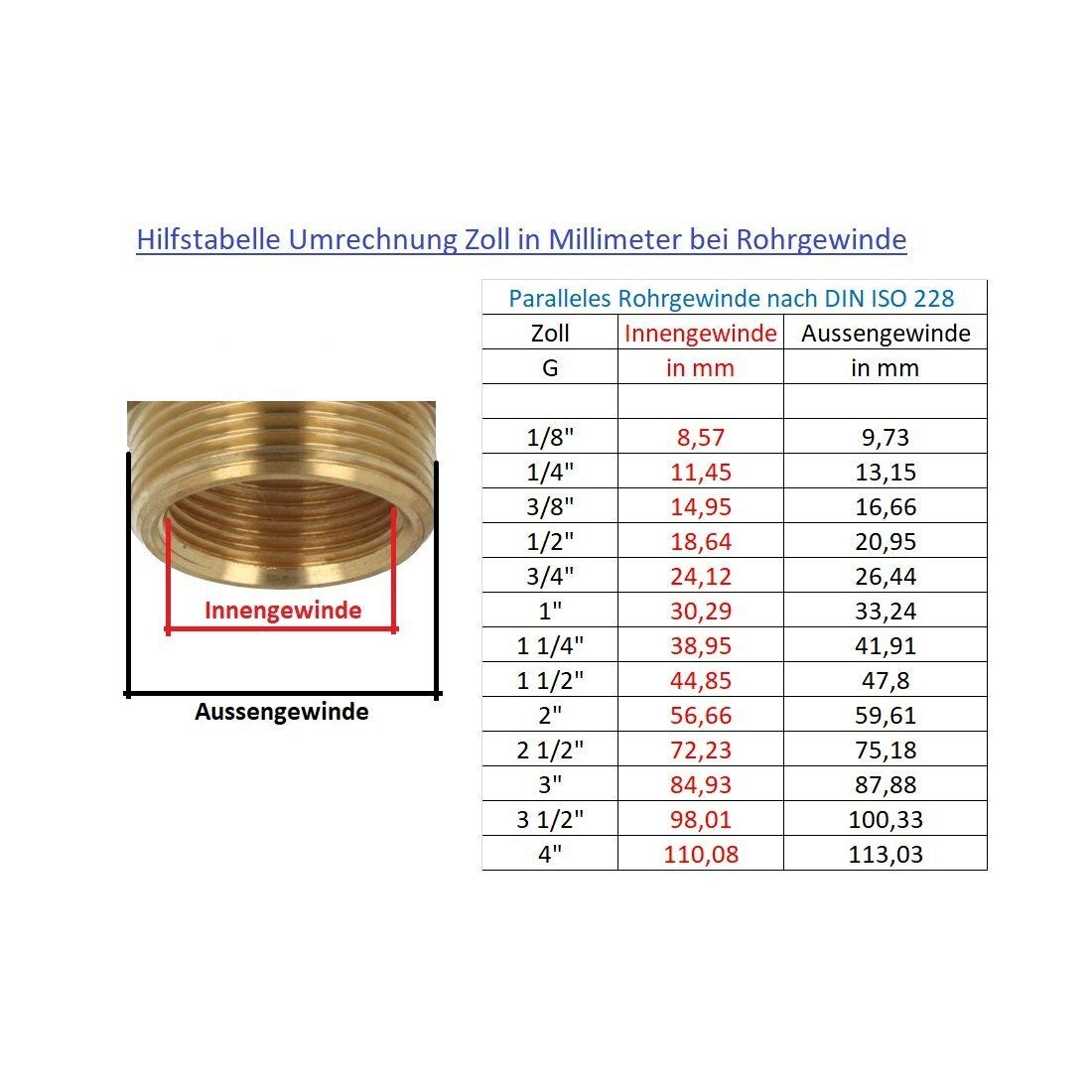

- Material: untreated brass with anti-inclination (DZR) // Thread in accordance with ISO 7/1 (complies with DIN EN 10226-1).
- Nominal pressure: 20 bar at 25 C and 10 bar at 90 C. Operating temperature: -20 C to max. +130 C
- Approvals: DVGW approved for drinking water and heating systems. These connectors can be used for copper pipes (RAL, semi-hard, pulled) as drinking water pipes, in heating construction, air pressure systems and industry.

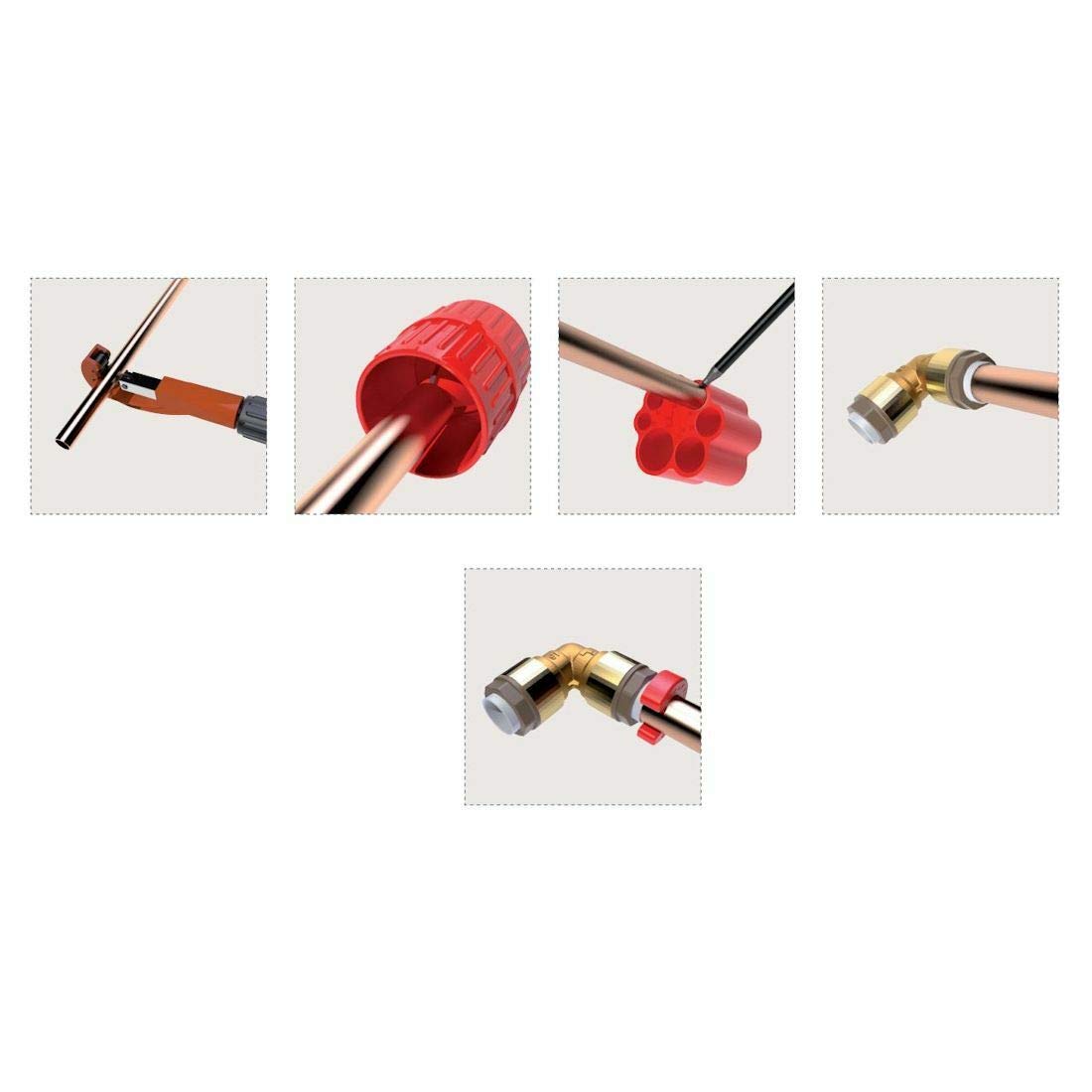

- Note: After assembly of the connectors and piping, always a pressure sample (DIN4279). In the event of failure to perform and/or loss of written evidence, no compensation will be paid by the manufacturer.
Out of stock
