Description

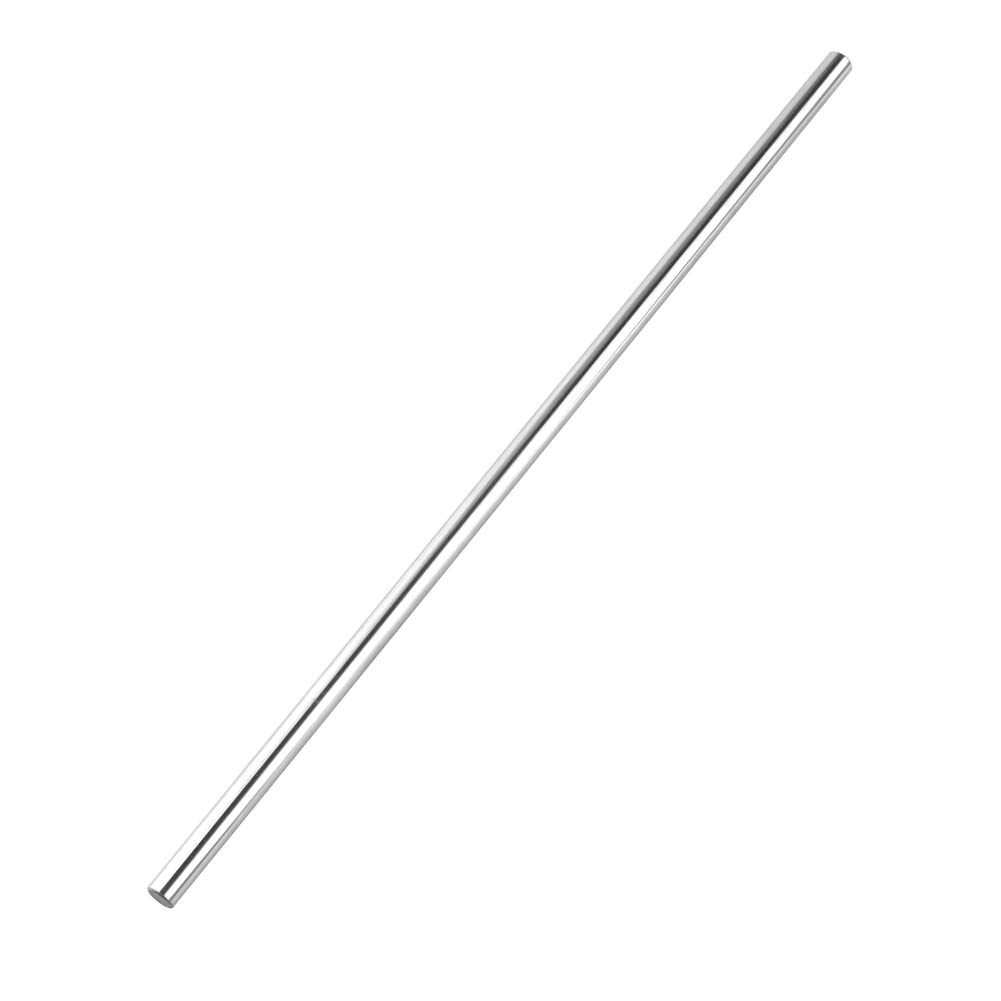

Overviews: This linear motion shaft of 8 mm in diameter and in different Length is steel plated and case hardened, and is suitable for use with linear support blocks and closed Type slide units in linear motion applications. It made of high quality bearing steel, the linear rod are durable and sturdy，the surface is quite smooth, resistant to rust and corrosion The applications are extensive,such as measuring systems, printing equipment, and computer numerical control (CNC) tools,3D printer., especially in bearing purpose. Linear Motion Shaft Diameter: 8mm Length: 100mm-600mm Material: Stainless Steel Hardness: Surface hardness-55-60HRC ;Hardened layer-0.8mm Surface treatment: Chrome Plated,Smoothness Ra0.8 Vertical Shaft Holder Material: Aluminum Alloy Compatible Model: SK 8A Shaft Diameter: 8mm Locking Bolt: M4 Clamping Bolt: M5 Dimensions: 42*32,8*14mm (W*F*L) Weight: 27g Linear Slide Material: Bearing steel Slide Bush Method: LM8UU Dynamic Basic Loading: 274CN Static Basic Loading： 392CON Dimensions: 34*30*22mm (W*L*F) Weight: 52g Notes: Due to the difference between different monitors, the pictures may not reflect the actual color of the item. Please allow 1-2mm differences due to manual measurement Package Included: 2 x Linear Motion Shaft
