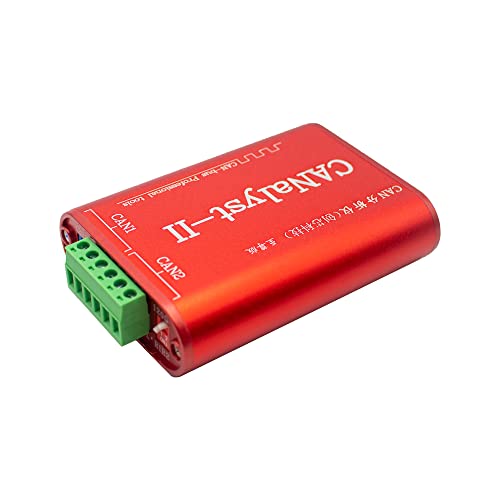

Jieotwice CANalyst-II USB to CAN Analyzer CAN-Bus Converter Adapter, Compatible with ZLG USB to CAN

Description

-bus protocol conversion
USB-CAN-1(x) is signal channel intelligent CAN interface module
USB-CAN-2(x) is dual-channel intelligent CAN interface module
CANalyst-II Analyzer is dual-channel intelligent CAN interface module with CAN-bus protocol analysis capabilities
PC interface supports USB1.1 protocol and is USB 2.0 compliant;
Supports CAN2.0A and CAN2.0B protocols supports standard and extended frame
Support CAN transmit and CAN Receive
Support data frame and remote frame
Programmable CAN-bus communication Baud rates from 10Kbps to 1Mbps
USB-CAN-(x)A products:not isolated in the CAN-bus terminal
USB-CAN-(x)B /C products: isolated with independently isolated DC-DC power module and High-speed magnetic coupling isolation module in the CAN-bus terminal
CANalyst-II Analyzer: isolated with independently isolated DC-DC power module and High-speed magnetic coupling isolation module in the CAN-bus terminal
Max data flow for a single channel: 8000 fps (standard frame) for receiving and 8000 fps(standard frame) for transmitting
Buffer size:1000 frames length buffer for transmit(with auto repeat transmit when failed) per channel,2000 frames length for receive per channel
Adopts USB bus power supply, eliminating the need for an external power supply
CANalyst-II Analyzer, adopts electrical isolation, the isolation voltage is:2500V
Operating temperature: -20~85℃
Physical size: 70*45*24mm
Product compatibility:Function library is similar to the library in Guangzhou ZLG USBCAN interface module
Typical applications:
Transmit or receive massages in CAN-bus network with PC or laptop’s USB
The fast CAN network data collection, data analysis
CAN-bus-USB gateway
USB interface to CAN network interface
Extend CAN-bus line length
Industrial site CAN network data monitoring
Package List:
1 * CAN Analyzer
1 * USB Cable
