Description
check the size and appearance of the camera before placing an order to see if the size and appearance of your car number plate fits! As the same car model may vary in different countries please check the camera size and carefully compare the installation of your car to avoid errors.

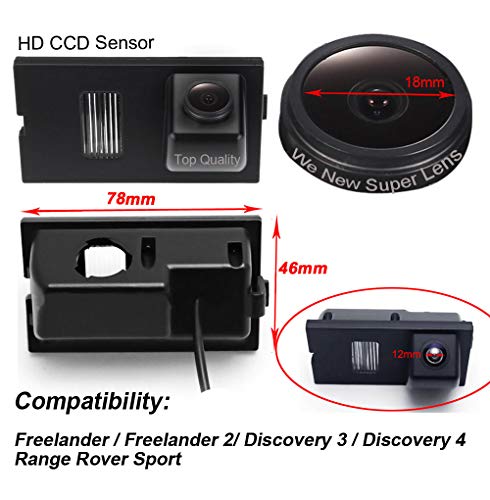

Suitable for Freelander/Freelander 2/Discovery 3/Discovery 4, Range Rover Sport
Product Parameters:
1. TV system: NTSC (if you want PAL, please email us)
2. Resolution: 1000 TV lines
3. Lens angle: 170 degrees.
4. S/N ratio: more 48 dB (AGC-OFF).
5. Video colour: night vision colour.
6. Video output: 1.0Vp-p, 75Ω.
7. Image device: 1/3 inch colour.
8. Sensing area: 5.78 x 4.19 mm
9. Sync System: internal
Voltage: DC 12 V + -1
White balance: car.
Waterproof: IP67.
Effective pixels: 1280 x 720.
Electronic shutter: 1/60-1/10000 second.
Current consumption: ≤150 mA.
Current consumption: 90 mA max.
Temperature: -40°C to +60°C, RH95% Max.
Minimum illumination: 0.3Lux/F1.2
Operating temperature: -30°C to +50°C, RH95%.
Top quality 1/3 inch colour sharp LCD, other sellers are cheap 1/4 inch colour CMOS LCD
Installation diagram:
Our package includes children’s lightweight diagram.
Box contents:
1 x Rear View Camera 1 x Power Cable 1 x 6 metre video cable 1 x User Manual
