Description
a size and carefully compare the installation of your car to avoid any errors.

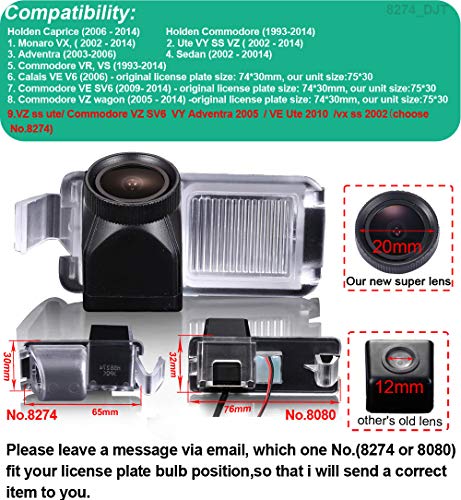

Suitable for:
Holden Caprice (2006 – 2014)
Holden Commodore (1993-2014)
1. MonaroVX, (2002 – 2014).
2. Ute VY SS VZ (2002-2014)
3. Adventra (2003-2006)
4. Sedan (2002 – 2014)
5. Commodore VR, VS (1993-2014)
6. Calais VE V6 (2006) – original license plate size: 74 x 30 mm, our unit size: 75 x 30.
7. Commodore VE SV6 (2009- 2014) – original license plate size: 74*30mm, our unit size:75*30
8. Commodore VZ wagon (2005 – 2014) – original license plate size: 74 x 30 mm, our unit size: 75 x 30
Product Parameters:
1. TV system: NTSC (if you want PAL, please email us)
2. Resolution: 1000 TV lines
3. Lens angle: 170 degrees.
4. S/N ratio: more 48 dB (AGC-OFF).
5. Video colour: night vision colour.
6. Video output: 1.0Vp-p, 75Ω.
7. Image device: 1/3 inch colour.
8. Sensing area: 5.78 x 4.19 mm
9. Sync System: internal
Voltage: DC 12 V + -1
White balance: car.
Waterproof: IP67.
Effective pixels: 1280 x 720.
Electronic shutter: 1/60-1/10000 second.
Current consumption: ≤150 mA.
Current consumption: 90 mA max.
Temperature: -40°C to +60°C, RH95% Max.
Minimum illumination: 0.3Lux/F1.2
Operating temperature: -30°C to +50°C, RH95%.
Top quality 1/3 inch colour sharp LCD, other sellers are cheap 1/4 inch colour CMOS LCD
Installation diagram:
Our package includes children’s lightweight diagram.
Box contents:
1 x Rear View Camera 1 x Power Cable 1 x 6 metre video cable 1 x User Manual
