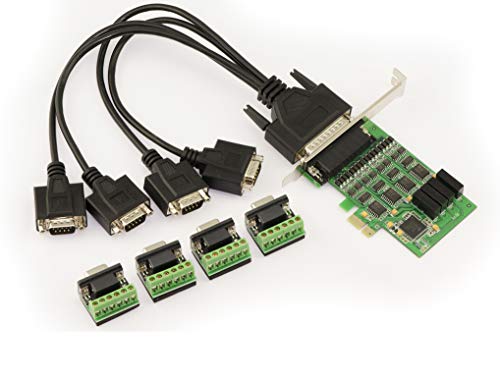

KALEA-INFORMATIQUE 4-Port RS422 RS485 controller card on PCIe slot with EXAR XR17V354 Chipset - With RS-422 RS-485 terminals
KALEA-INFORMATIQUE 4-Port RS422 RS485 controller card on PCIe slot with EXAR XR17V354 Chipset - With RS-422 RS-485 terminals - Image 2
KALEA-INFORMATIQUE 4-Port RS422 RS485 controller card on PCIe slot with EXAR XR17V354 Chipset - With RS-422 RS-485 terminals - Image 3

KALEA-INFORMATIQUE 4-Port RS422 RS485 controller card on PCIe slot with EXAR XR17V354 Chipset – With RS-422 RS-485 terminals

$0.00

  • For office PCs on PCI Express 1x port. Allows you to add 4Serial Ports RS422/RS485on your desktop PC. Compatible with all motherboards, all serial devices. Drivers included for Windows XP, Vista, 7, 8, 10, server 2003/2008/2012), Linux 2.6.27/2.6.31/2.6.32/3.x.x and most recent.
  • Chipset Exar xr17V354PCI Express 1x slot (will fit a slot 1x/2x/4x/8x/16X). PCIe 2.0Gen 1dual Simplex, 2.5GB in both directions
  • RS485: data + (B)/data- (a)/GND signals RS422signals: T/R + T/R- RXD + RXD- GND
  • 4DB9connectors on with wire-wire 600W, protection and 15KV ESD work: Asynchronous, Point/point, Point/Multipoint, 2cables (Half Duplex), 4Wires (full duplex) maximum transmission distance: 1.2KM,
  • Support 7/8Data bit1or 2Stop biteven/odd/Mark/Space/none flow control NONE, hardware and Xon/Xoff load capacity up to 32devices per port

Out of stock

  • International Express shipping available
  • 30 day easy returns
Guaranteed Safe Checkout

Description

PCI Express 1X slot (will fit a slot 1x/2x/4x/8x/16x) RS485: Data + (B)/data- (a)/GND signals RS422 signals: T/R + T/R- RXD + RXD- GND PCIe 2.0 Gen 1 Dual Simplex, 2.5 GB in both directions 4 DB9 connectors on with WIRE-WIRE protection 600 W, And 15KV ESD: Asynchronous, point, point, point/Multipoint, 2 wire (half duplex), 4 (Full Duplex) Maximum Transmission Distance: 1.2 km wire, for 7/8 Data bit – 1 or 2 stop bit – even/odd/Mark/Space/None Flow control none, hardware and XON/XOFF cacacité charge up to 32 devices per port

Is discontinued by manufacturer:- No
Package Dimensions:- 30.6 x 18 x 5.8 cm; 460 g
Date First Available:- 15 Jan. 2016
Manufacturer:- KALEA-INFORMATIQUE
Country of origin:- China
Guaranteed software updates until:- unknown
Brand:- KALEA-INFORMATIQUE
Hardware interface:- PCI
Style:- Modern
Compatible devices:- Personal Computer
Operating system:- Linux,Windows

Additional information

Weight 0.46 kg
Brand

KALEA-INFORMATIQUE
EAN

3045151095618
SKU: B017M8ULHO Category: Tags: , , ,
