Description
Details

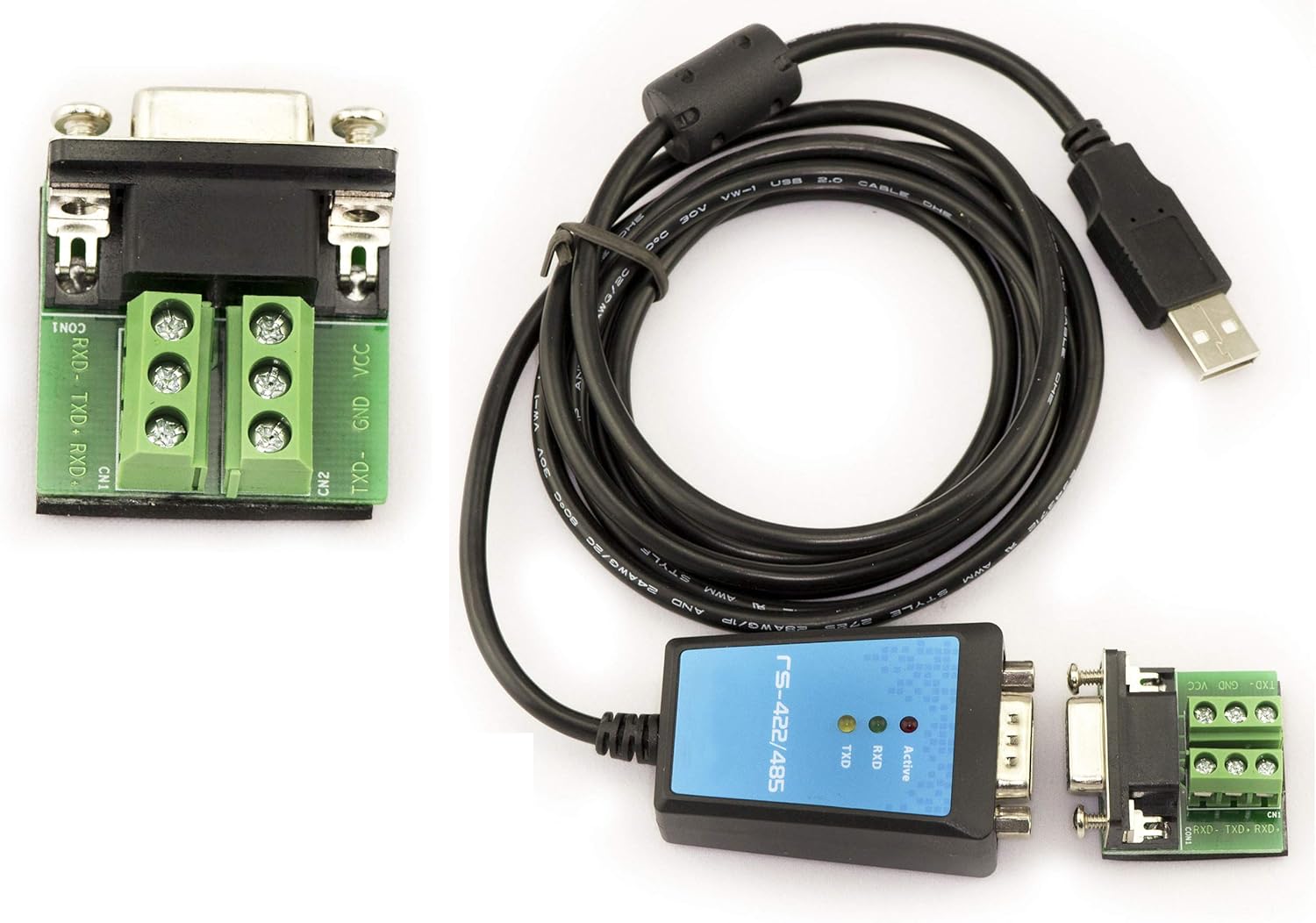

KALEA-INFORMATIQUE USB to RS422 RS485 converter with FTDI FT232 Chipset. 1.8M cable with magnetic protection: FDTI chipsets are very popular for their stability in USB UART processes. Standard USB2.0, also compatible with USB V1.0, 1.1 (and 3.0 with USB 2.0 speed). Standard RS-485,RS-422 TIA/EIA. USB signals: VCC, DATA+, DATA-, GND and FG /// RS-422 signals: T/R+,T/R-,RXT+,RXD-,GND /// RS-485 signals: T/R+,T/R-.GND.
Key features
- FDTI chipsets are very popular for their stability in USB UART processes. Standard USB2.0, also compatible with USB V1.0, 1.1 (and 3.0 with USB 2.0 speed). Standard RS-485,RS-422 TIA/EIA
- USB signals: VCC, DATA+, DATA-, GND and FG /// RS-422 signals: T/R+,T/R-,RXT+,RXD-,GND /// RS-485 signals: T/R+,T/R-.GND
- Windows XP,Vista,7,8,10,11 32/64-bit Windows Server 2K3,2K8,2K12 32,64-bit Windows XP Embedded Windows CE 4.2, 5.0 and 6.0 Mac OS-X Linux 3.2 and above Android
- Colour: Schwarz
Product specifics
- Brand: KALEA-INFORMATIQUE
- Category: Serial Port Cards
- Colour: Schwarz
- Model: 9424651
- Part number: 9424651
