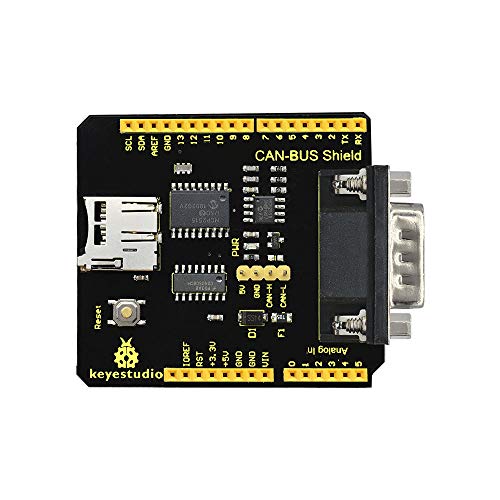

KEYESTUDIO CAN-Bus Shield for Arduino, Compatible for Arduino Leonardo, UN0, Mega
KEYESTUDIO CAN-Bus Shield for Arduino, Compatible for Arduino Leonardo, UN0, Mega - Image 2
KEYESTUDIO CAN-Bus Shield for Arduino, Compatible for Arduino Leonardo, UN0, Mega - Image 3
KEYESTUDIO CAN-Bus Shield for Arduino, Compatible for Arduino Leonardo, UN0, Mega - Image 4

KEYESTUDIO CAN-Bus Shield for Arduino, Compatible for Arduino Leonardo, UN0, Mega

$39.99

  • KEYESTUDIO CAN-BUS Shield is particularly designed for Arduino controllers.compatible with the Arduino UNO standard interface; can be perfectly adapted to the main control boards such as Arduino UNO and Arduino Leonardo.
  • KEYESTUDIO CAN-BUS Shield shield provides a DB9 connector, and provide various interfaces, such as uart, I2C, connector, etc.so you can choose the interface according to your needs.It also comes with MicroSD card slot, so you can directly insert MicroSD card to store data.
  • KEYESTUDIO CAN-BUS Shield support standard frame, extended frame of transmission and reception; support two receiving methods: Polling and interrupt;support SD card data storage;support power supply via Arduino motherboard or DB9 connector
  • The onboard BUS control chip can realize the data control on the CAN bus and data communication between devices.
  • Notice: The two ends of CAN BUS(CAN-H and CAN-L) must be connected to terminal resistor so that CAN BUS can work normally. The resistance of terminal resistor should be as same as communication cable. Its typical value is 120 ohms. Additionally, it can match bus resistance to strengthen the anti-interference and reliability of data communication

Out of stock

  • International Express shipping available
  • 30 day easy returns
Guaranteed Safe Checkout

Description

CAN-BUS Shield is particularly designed for Arduino controllers. The onboard BUS control chip can realize the data control on the CAN bus and data communication between devices. It is compatible with the Arduino UN0 standard interface; can be perfectly adapted to the main control boards such as Arduino UN0 and Leonardo.

Specification
Operating voltage: DC5V
Chip: MCP2515
Dimensions: 66mm*54mm*28mm
Weight: 24g

Additional information

Weight 0.05 kg
