LIGHTEU®, Miboxer Milight PA5 5-Channel High Performance Amplifier DC12V-24V Max 15A RGB RGBW RGBCCT LED Amplifier Controller for RGB RGBW RGBCCT LED Strips


  • Make sure this fits by entering your model number.
  • A newly updated high performance 5-channel signal amplifier.

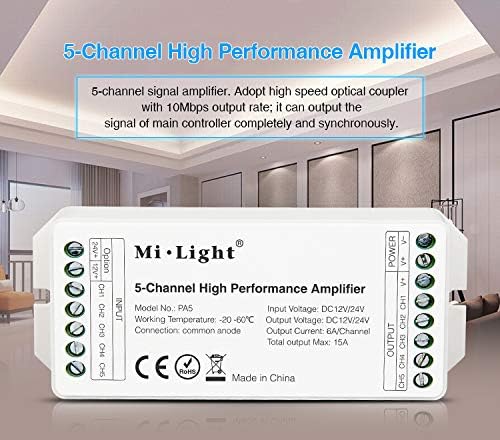

  • Adopt high speed optical coupler with 10Mbps output rate, it can output the signal of mai controller completely and synchronously.

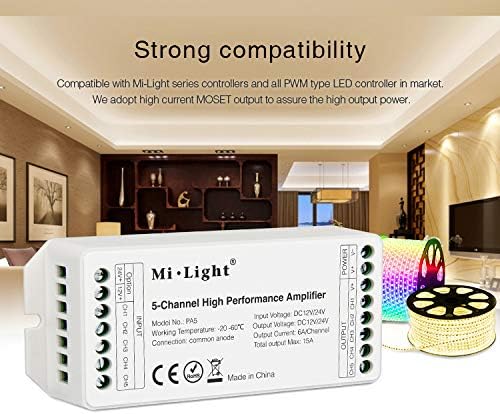

  • This products work on all PWM series Led controllers in market. Made from the big current Mosfet to assure the high rate output.
  • Everytime you add one more amplifier, you can connect twice as many as Leds. Theoreitically, it can connect countless amplifier, input and output is with optoelectronic isolation.
  • Working with main controller can satisfy the application requiring large power, wide range and synchronization area.
  • International Express shipping available
  • 30 day easy returns
Guaranteed Safe Checkout

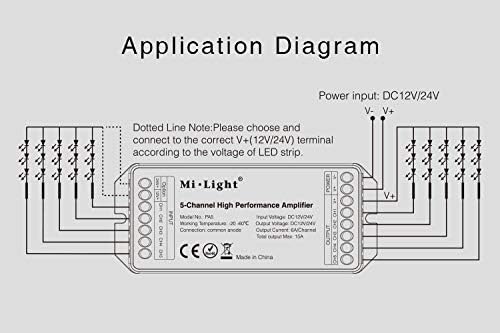

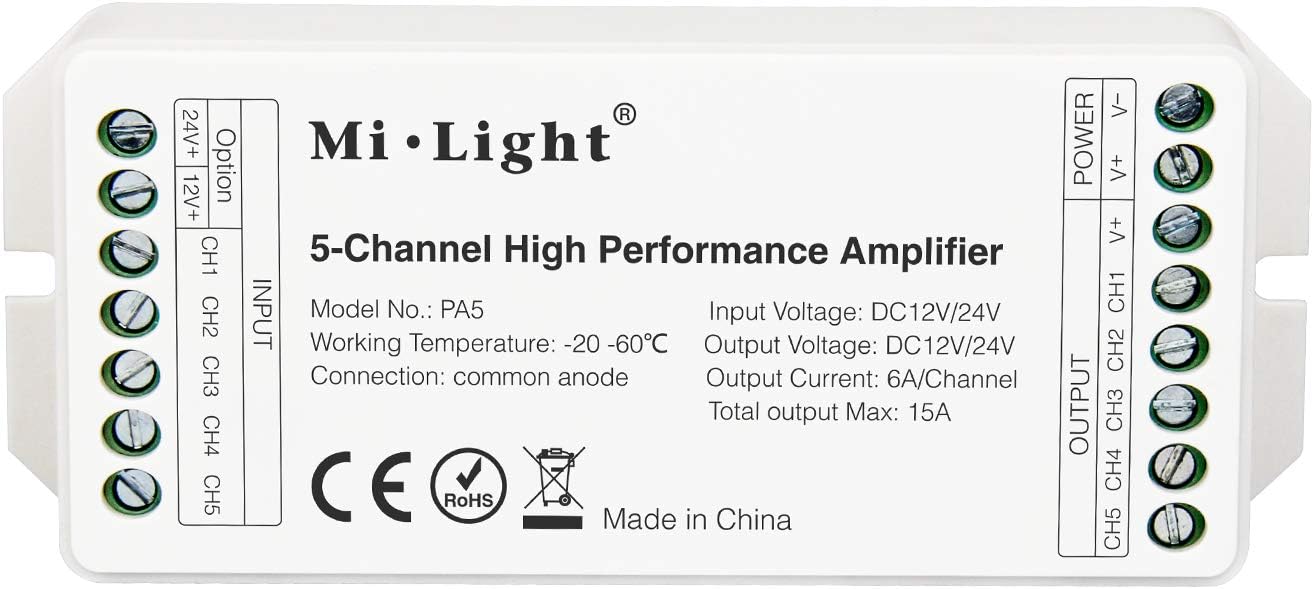

Specification: Product Name: 5-Channel Hight Performance Amplifier Model No: PA5 Working Temperature: -20-60degree Working Voltage: DC12V/24V Switching Rate: 10Mbps Output Max: 6A/Channel Total Output Max: 15AAttention: 1 strip must be DC12V or 24V and the Outout and Input must be the same. 2se check whether the input voltage of the constant voltage power supply is accordance with the controller and please check the connection of both the cathode and anode,otherwise the controller will be broken. 3se don’t connect wires when power on. Please turn on again only when it is on right connection and no short circuit. 4se do not use the controller in the place with widely range meal area or strong electromagntic wave nearby,otherwise the remote distance will be seriously affected.

Additional information

Weight 0.1 kg

Brand: lighteu
