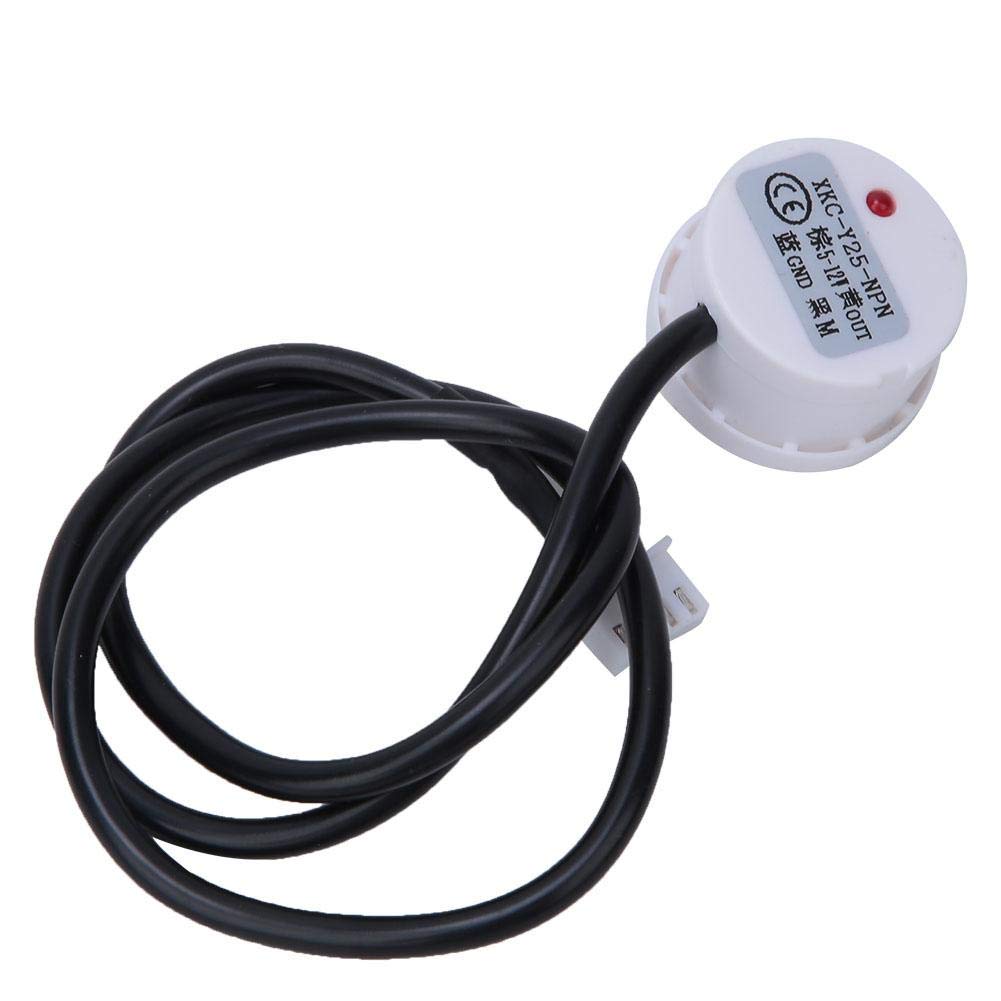

Liquid level sensor, 5-12V non-contact water level sensor, capacitive liquid level detection, PNP output interface, IP67 Waterproof, for automatic control

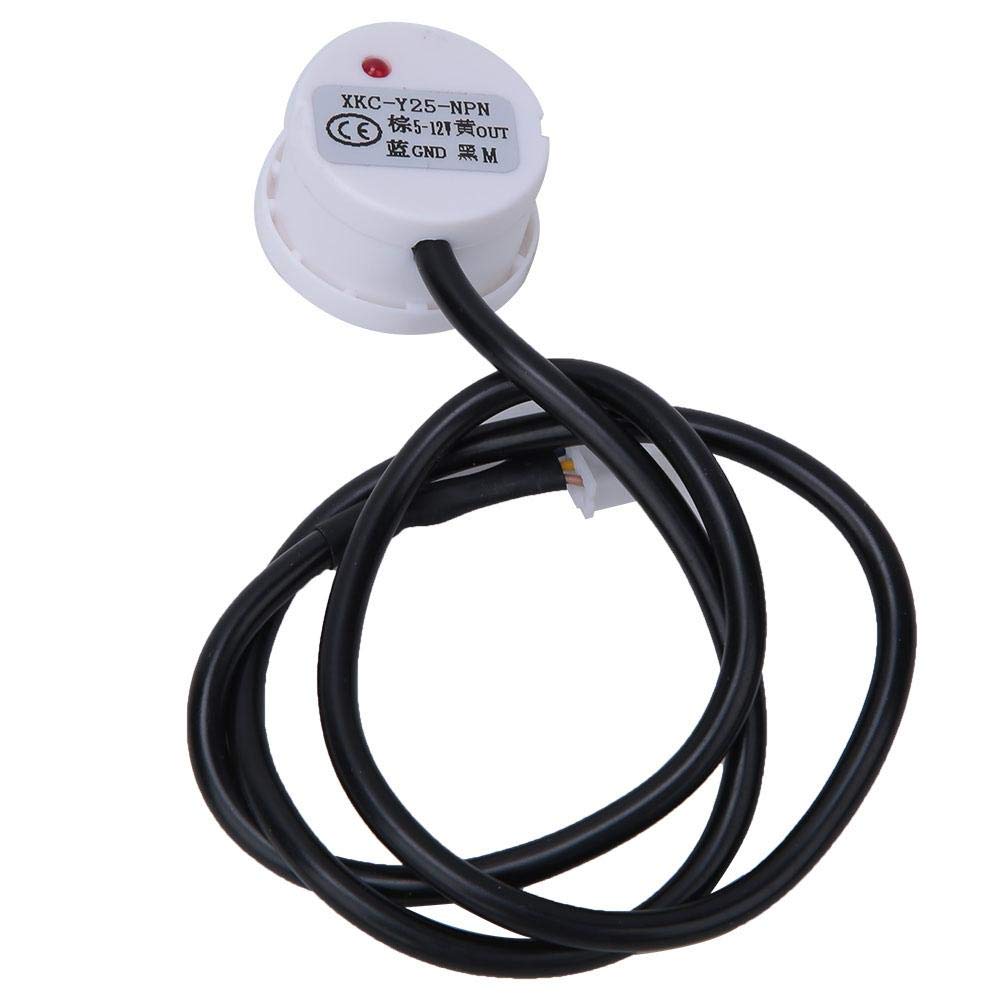

Liquid level sensor, 5-12V non-contact water level sensor, capacitive liquid level detection, PNP output interface, IP67 Waterproof, for automatic control - Image 2

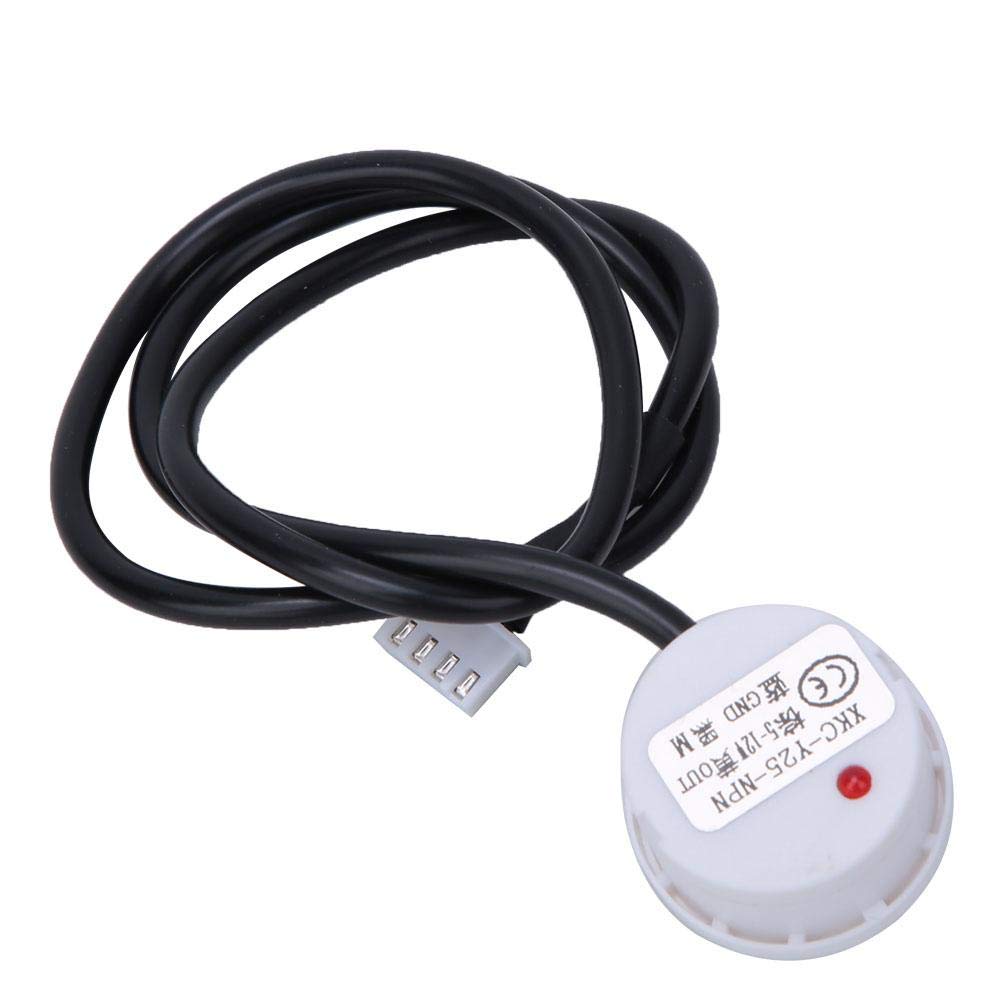

Liquid level sensor, 5-12V non-contact water level sensor, capacitive liquid level detection, PNP output interface, IP67 Waterproof, for automatic control - Image 3
Liquid level sensor, 5-12V non-contact water level sensor, capacitive liquid level detection, PNP output interface, IP67 Waterproof, for automatic control - Image 4
Liquid level sensor, 5-12V non-contact water level sensor, capacitive liquid level detection, PNP output interface, IP67 Waterproof, for automatic control - Image 5

Liquid level sensor, 5-12V non-contact water level sensor, capacitive liquid level detection, PNP output interface, IP67 Waterproof, for automatic control

$0.00

  • It is suitable for the outer wall of non-metallic pipes without direct contact with liquids, and will not be corroded by corrosive liquids such as strong acid and alkali, and is not affected by scale or other debris.
  • Intelligent liquid level reference adjustment and liquid level memory function, liquid level status display mode, multi-point series connection
  • The test is accurate and stable, and the boiling water level can be detected
  • Pure electronic circuit structure, non-mechanical working mode, stable performance and longevity.
  • High stability, high sensitivity, strong interference ability, free from external electromagnetic interference

Out of stock

  • International Express shipping available
  • 30 day easy returns
Guaranteed Safe Checkout

Description

Feature:

Specification:
Item Type: Sensor Working Voltage: 5-12V Induction Principle: Capacitive Liquid Level Sensing Output Form : NPN Model: XKC-Y25-NPN Response Time: 500ms Output Current: 1~100mA Working Environment Temperature: -10~100°C Induction Thickness (Sensitivity) Range: ≤20mm Level Error: ±1.5mm Humidity: 5%~100% Material: ABS Waterproof Performance: IP67

Package List:

Additional information

Weight 0.02 kg
brand

Acogedor
dimensions
SKU: B083DW31RN Category: Tags: , ,
