Description
Details
LOOTICH Hole Drilling Jig Template for diameter 35mm and 26mm Hinge Cup Mounting Plates Drawers and Eccentric Connecting Fittings of diameter 25mm and 20mm Hole Diameter Pack of 2: Marking for system drilling in 32-grid (with a distance of 28mm or 37mm to the front edge of the body) amongst others for dowels shelf supports mounting plates etc. Marking of cup drillings diameter 26 and 35mm with a root gap (distance to door edge) of 4mm for cup hinges.
Key features

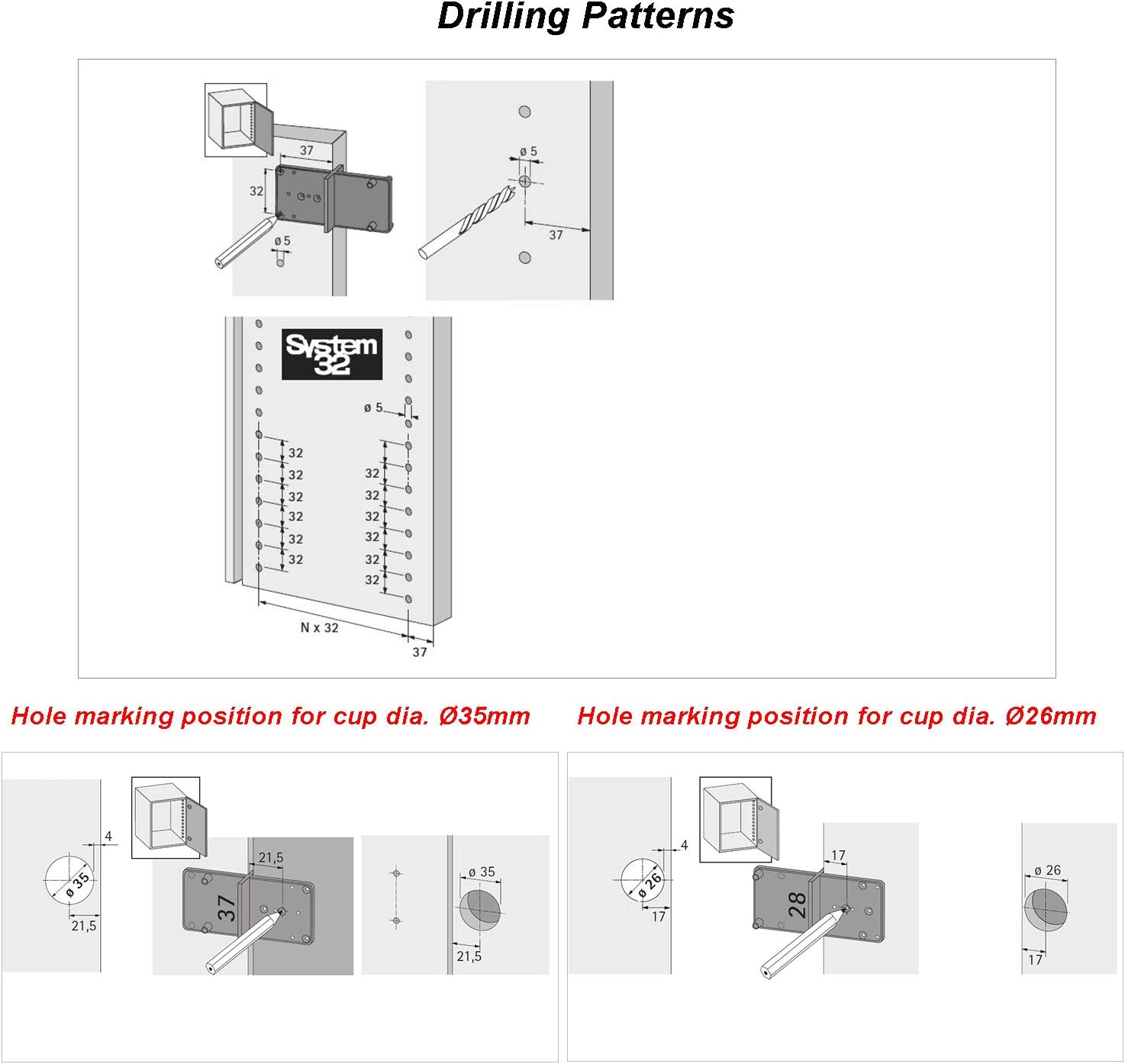

- Marking for system drilling in 32-grid (with a distance of 28mm or 37mm to the front edge of the body) amongst others for dowels shelf supports mounting plates etc

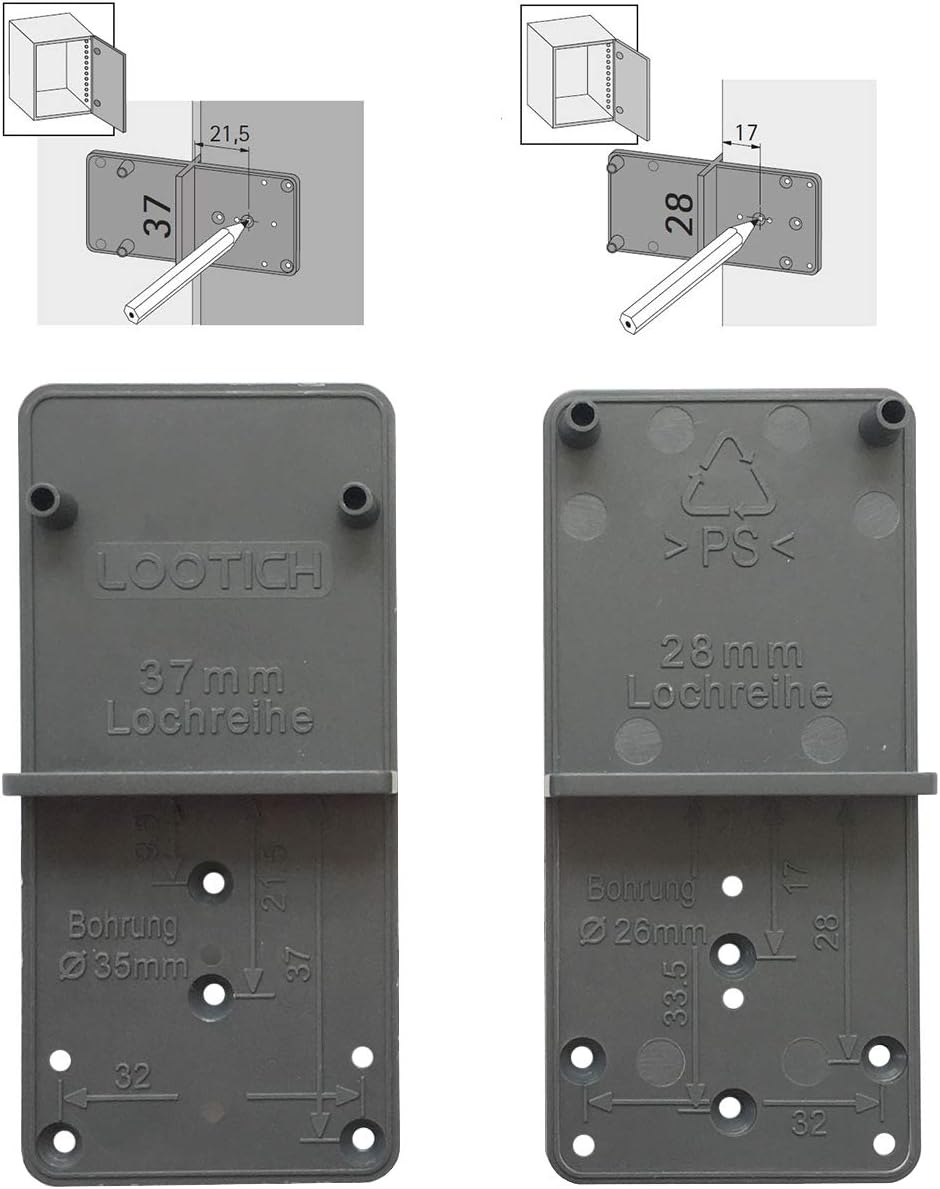

- Marking of cup drillings diameter 26 and 35mm with a root gap (distance to door edge) of 4mm for cup hinges

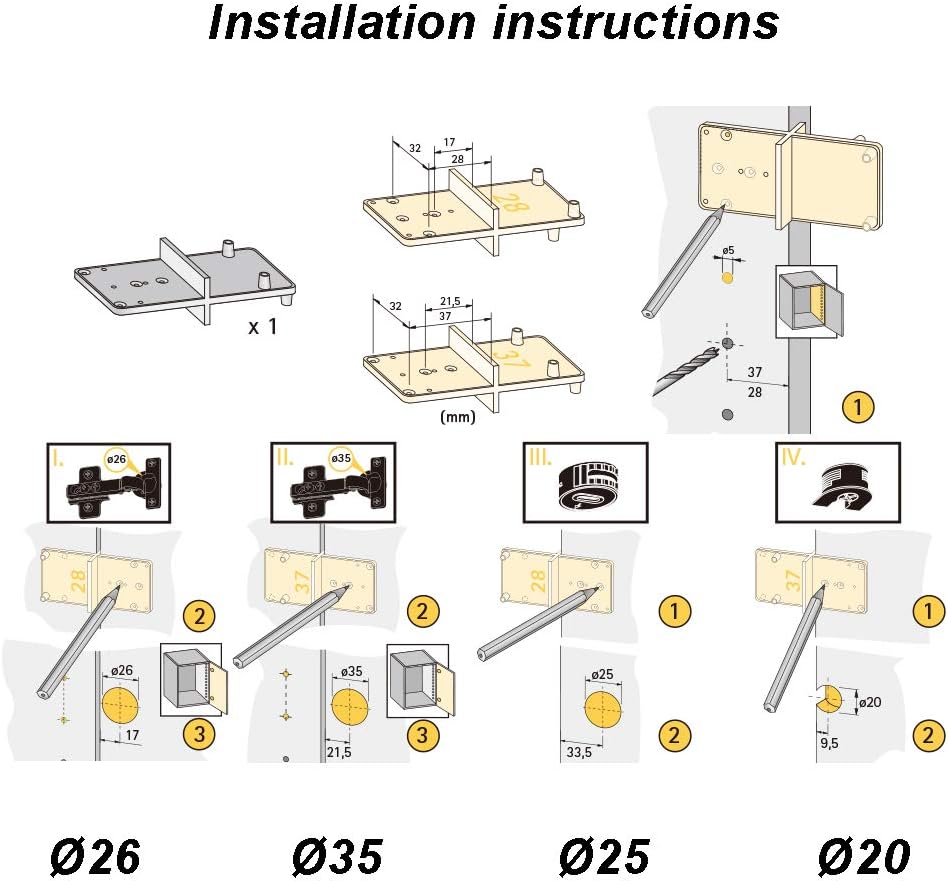

- Marking of drillings for connecting fittings with diameter 20mm and eccentric connecting fittings with diameter 25mm
- Material: Plastic
- Colour: Dark Grey
Product specifics
- Brand: LOOTICH
- Category: Jigs
- Size: 100×100 x22 mm
- Colour: Dark Grey
- Material: Plastic
- Model: 351
- Part number: 351
