Description

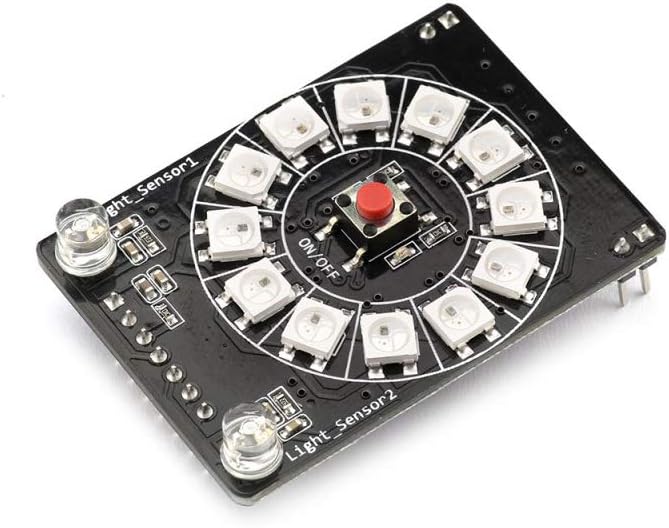

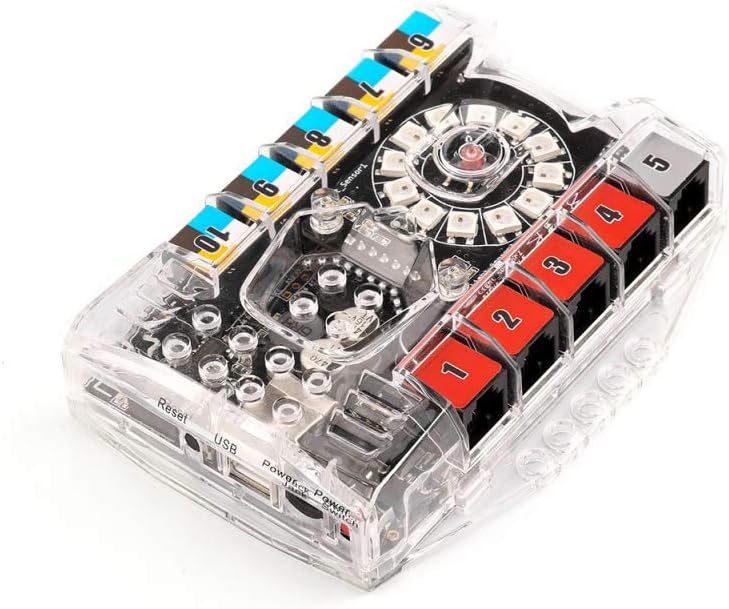

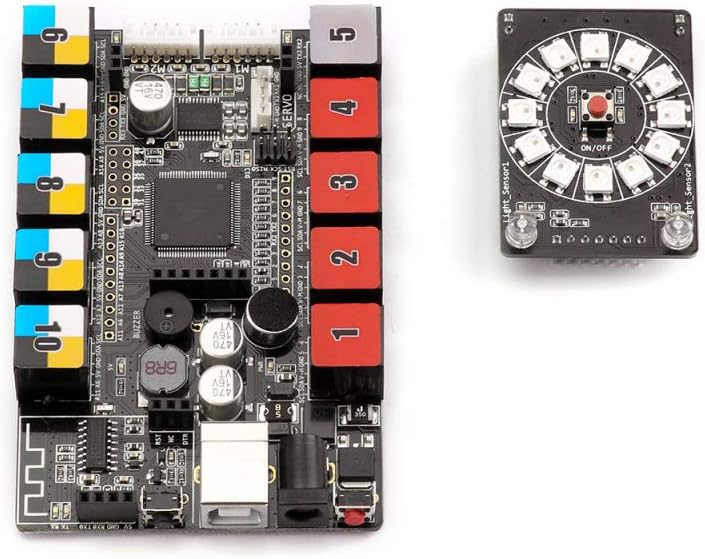

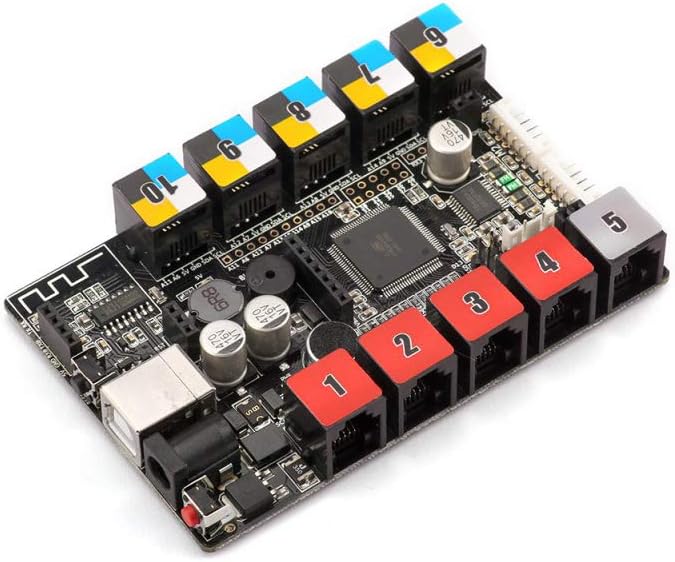

Product Description Me Auriga’s mainboard is the updated version of Orion and is equipped with multiple onboard sensors for temperature, sound intensity, a gyroscope, a buzzer driver; features a one-key power switch, wireless Bluetooth control and firmware upgrade capability, the original two red ports have been updated to four ports with the same functions; PORT5 is isolated only with serial communication function, so it cannot be used to update a program but only for communication. It is also compatible with USB serial port. PORT6 to PORT10 are compatible with dual-digital, simulation, 12C bus, unibus, and simulate serial port. Me Auriga has an encoder motor port, smart servo port and LED Ring Light Panel port (with power switch). The size of PCB is also enlargednical Parameters Output Voltage: 5V DC & 6-12V DC Nominal Voltage: 6 ~ 12V DC SCM: ATmega 2560 Dimensions (Length x Width x Height): 100 x 65 x 20mm
