Description
Simply connect and illuminate!

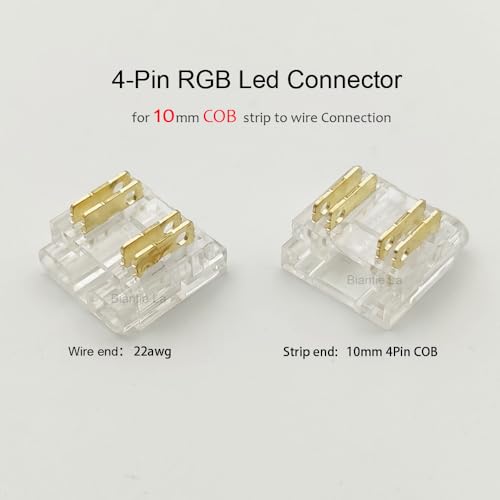

10mm 4-pin RGB COB LED Strip Connector Kit
This 10mm COB LED strip connector kit provides everything needed for a professional DIY installation. Featuring a range of 20 durable yet compact connectors to join strips end-to-end or attach to power supply and controllers, you can easily configure custom lighting for residential, retail or commercial spaces.
Featuring an innovative clamp-on design, these 4-pin connectors simply snap onto the copper pads of your LED strip to create a permanent joint. Slowly clamping down the connectors with a pair of pliers (not included) presses the contacts together, allowing power to flow freely through the connection. Once secured, the connectors cannot be detached.
Only works with 10mm wide COB LED strip lights with 4 soldering pads. Not compatible with 12mm 8mm or 5mm LED strips.

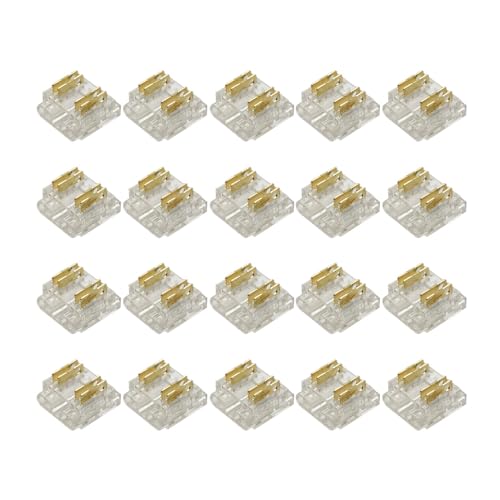

What’s Included:

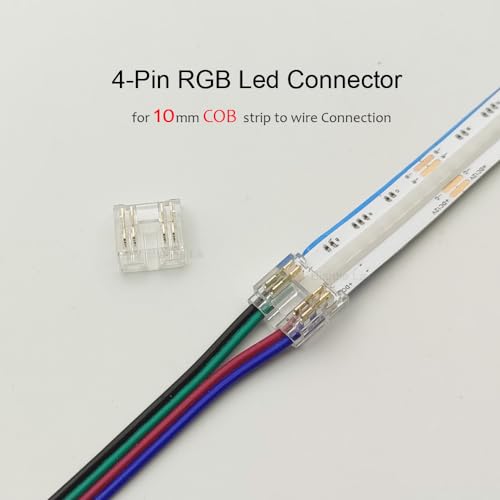

20 Strip-to-Wire Connectors – For connecting 10mm RGB COB LED strips to 22 AWG power wires or controllers.

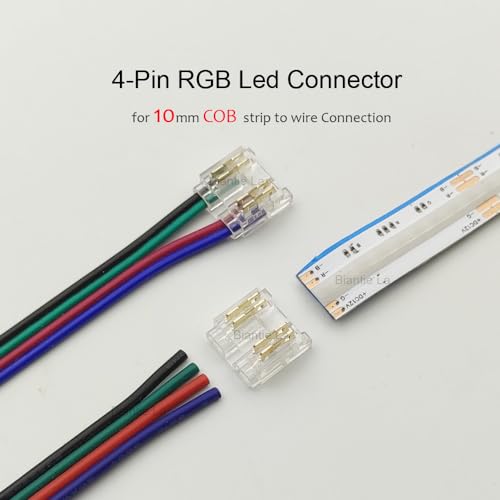

How to Use the LED Strip Splicing Connectors
1. Select the appropriate length of 22 AWG wire without stripping the insulation.
2. Insert the wires into the wire slot on the connectors. Use pliers to gently clamp down and secure the wires in place.
3. Insert your LED strip into the strip holder end of the connectors, aligning the solder pads on your strip with the 4 pin needles in the connectors.
4. Use pliers to firmly press on the pin needles of the connectors slowly to ensure they fully pierce the wires and LED strip.
5. The connection is now complete.
Contact customer support with any product questions. We provide comprehensive answers and tech support.
