Description

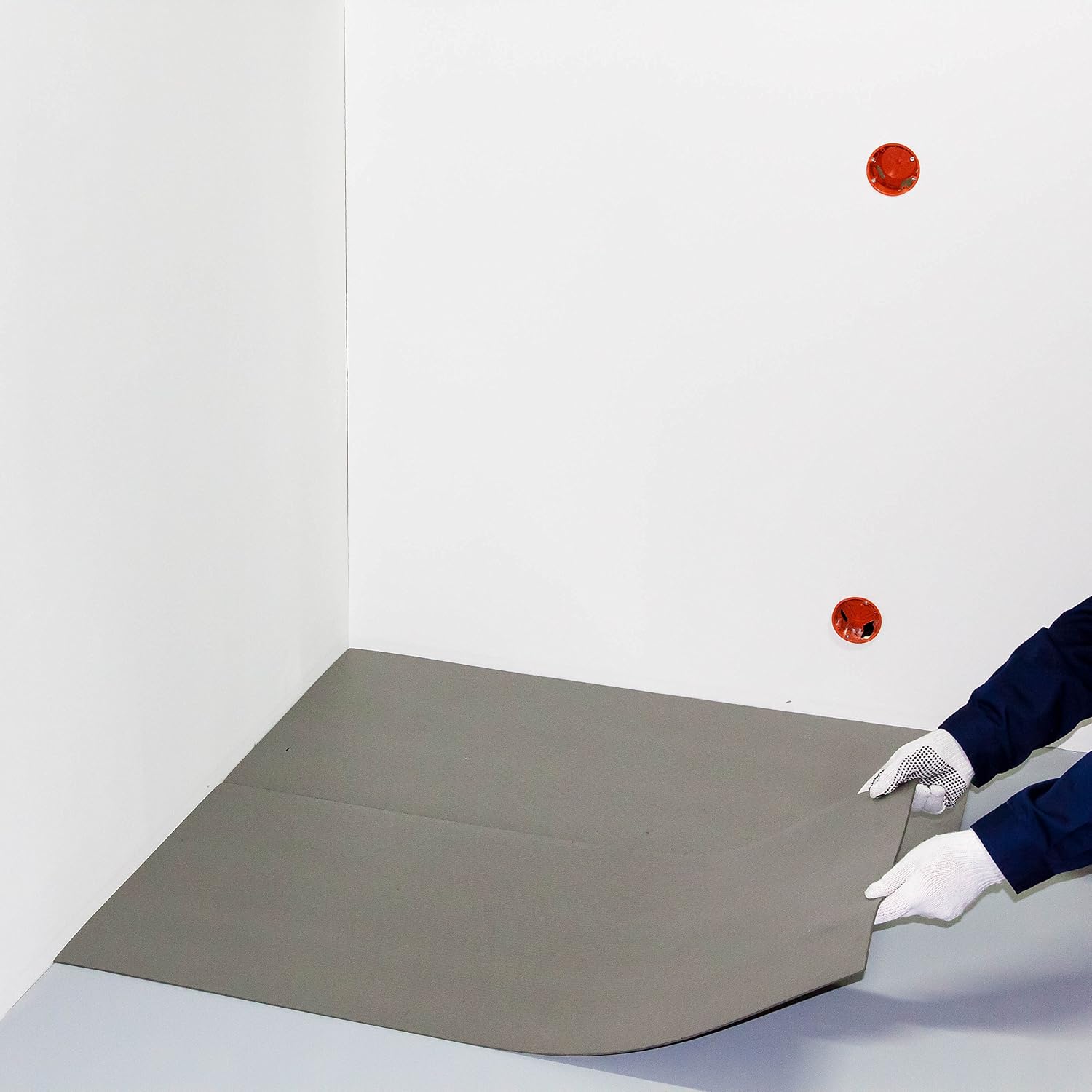

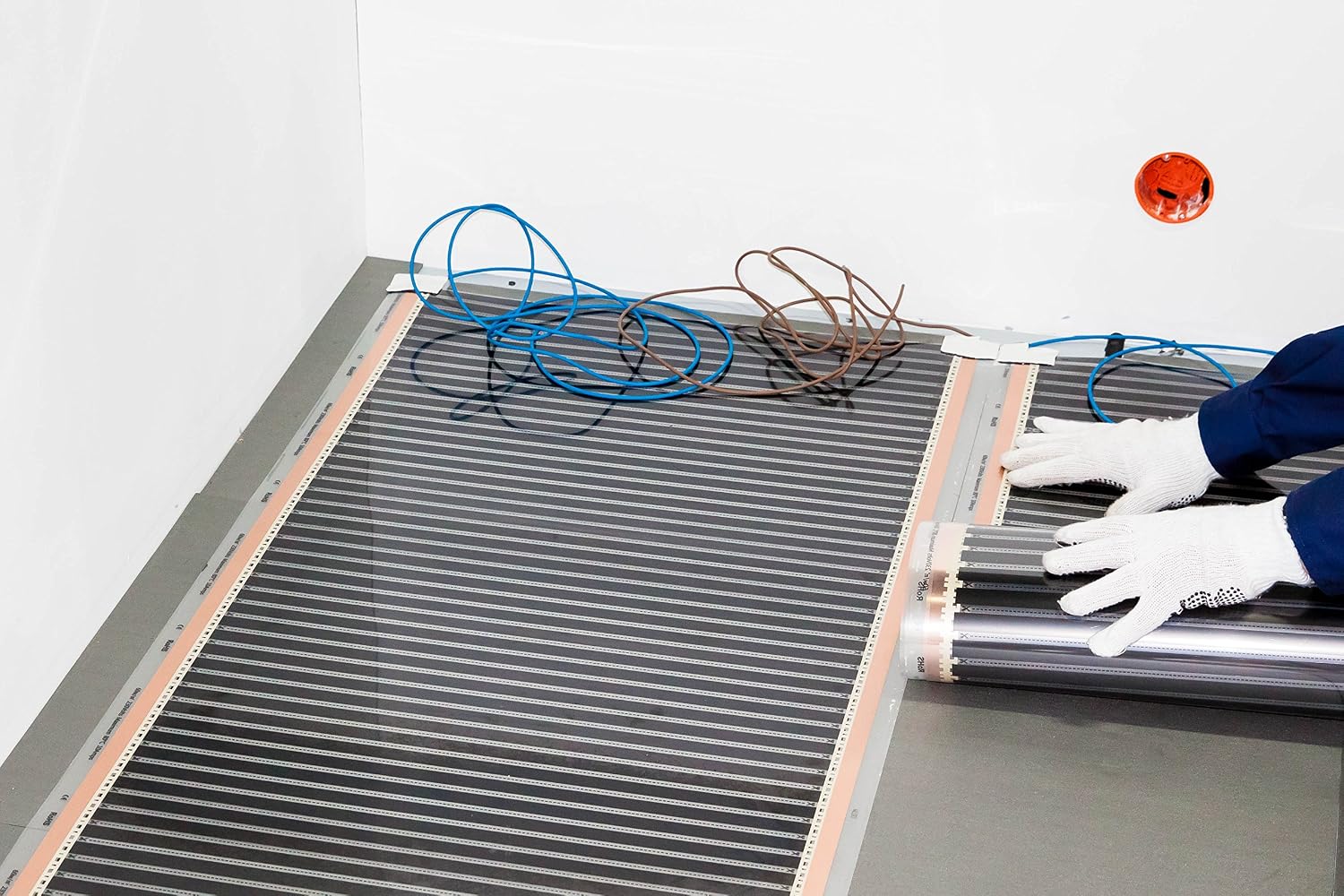

The heating foil is an electric heat source for underfloor heating. The heating foil consists of two polyester foils, which are hot-laminated with each other. Between the foils are the copper conductors (230 V) on both sides and along the length of the foil. Between the copper bands are the actual horizontal heating elements made of homogenised graphite. The entire area inside the heating foil heats up evenly (infrared radiation) and thus provides comfortable floor heat throughout the entire laid surface. The heat is generated by electric resistance. The width of the heating foil is 0.5 m. The following film lengths are available: 1 m – 10 m. The temperature at the temperature regulator should not exceed 27 x C (unless otherwise recommended by the manufacturer). Under the heating foil should be laid a heat-conducting grounding foil made of aluminium.
