Description
gnal tester is ideal for easy verification, signal control or quick debugging of “analogue” as well as “digital” signals in the range of 40-862 MHz (cable connection DVB-C, Unitymedia, Vodafone, Cable Germany, PYUR; DVB-T).

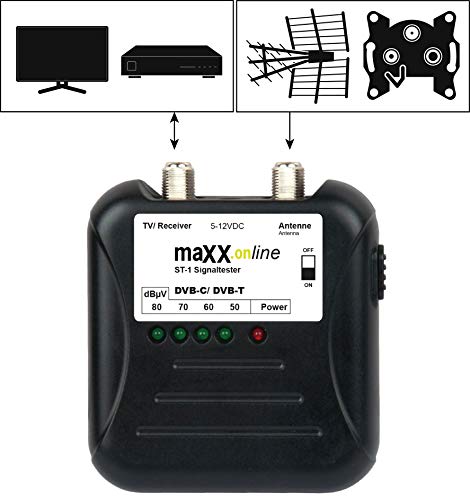

Measuring points we can test antenna sockets, HÜPs (home transmission point of the cable provider), house connection amplifier, coaxial cable connections or a DVB-T connection without any specialist knowledge.
The signal strength of the respective connection type, can be measured via the included F-connection cable (including adaptor). If a signal is detected, it is displayed via the green LED display of 50 – 80 dB.
Technical data:

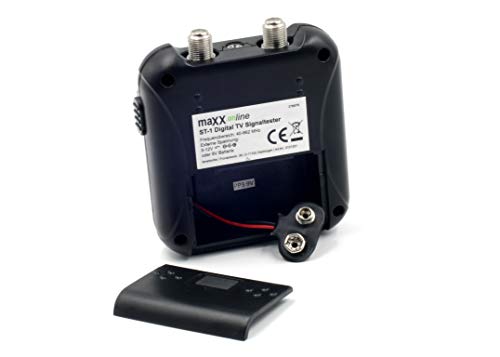

Operating voltage: 9V block battery (PP3) (battery not included)
Ext. Voltage: 5-12V DC adapter 3.5 mm plug (DC adaptor not included) or TV/receiver voltage.
Power consumption: 5VDC, 40 mA
Frequency range: 40-862 MHz
Dimensions: 80 x 80 x 25 mm

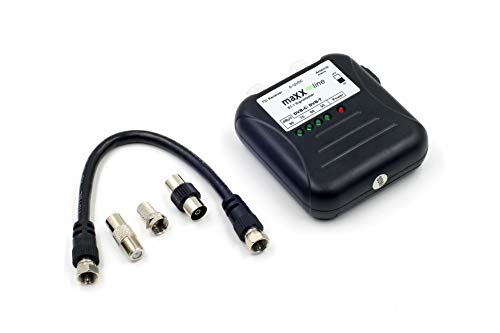

Box contents:
1 x ST-1 signal tester
1 x F-connection cable 22 cm.
1 x IEC plug.
1 x IEC connector socket/socket.
1 x F-connector.
